FUEL PUMP

WATER PUMP FOR SUZUKI KINGQUAD 750 2011

RADIATOR (LT-A750XPK9 P17)

Item numbers

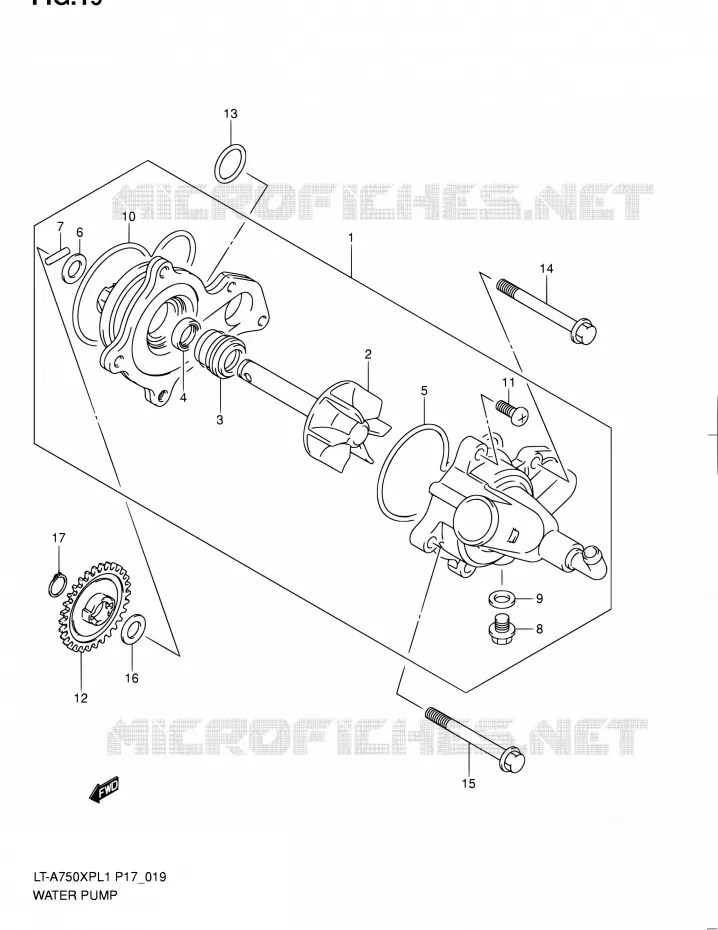

WATER PUMP Suzuki QUAD 750 KINGQUAD 2011 LT-A750XP L1 (P17,P24)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
PUMP ASSY, WATER

17400-31G00-000  

17400-31G11-000
 1740031G00000

Unit Price

2
.IMPELLER

17491-31G00-000   1749131G00000

1749131G00000

Unit Price

3
SEAL,MECHANICAL
SEAL, MECHANICAL

17470-02F00-000  

17470-02F11-000
 1747002F00000

Unit Price

4
SEAL, OIL
.OIL SEAL

17431-07G00-000   1743107G00000

1743107G00000

Unit Price

5
.O RING

17418-31G00-000   1741831G00000

1741831G00000

Unit Price

6
.WASHER

17432-07G00-000   1743207G00000

1743207G00000

Unit Price

7
.PIN

17482-03G00-000   1748203G00000

1748203G00000

Unit Price

8
BOLT,DRAIN<br />.BOLT
BOLT, DRAIN
.BOLT

17415-20920-000   1741520920000

1741520920000

Unit Price

9
.GASKET (8.2X14X1)
.GASKET (8.2X14X1)

09168-08016-000   0916808016000

0916808016000

Unit Price

10
.O RING

17435-31G00-000   1743531G00000

1743531G00000

Unit Price

11
.SCREW
.SCREW

02112-0616B-000   021120616B000

021120616B000

Unit Price

12
GEAR, WATER PUMP DRIVEN

17461-31G00-000   1746131G00000

1746131G00000

Unit Price

13
OIL PLUG O RING<br />O RING (D:2.4,ID:21.8)
OIL PLUG O RING
O RING (D:2.4, ID:21.8)

09280-22001-000   0928022001000

0928022001000

Unit Price

14
BOLT

01547-0645A-000   015470645A000

015470645A000

Unit Price

15
BOLT

01547-0655A-000   015470655A000

015470655A000

Unit Price

16
SHIM,10X18X0.5<br />WASHER (10X18X0.5)
SHIM, 10X18X0.5
WASHER (10X18X0.5)

09181-10158-000   0918110158000

0918110158000

Unit Price

17
CIRCLIP

08331-3110A-000  

08331-31109-000
 083313110A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WATER PUMP of your Suzuki of KINGQUAD. Let us know if you have any questions.
