Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CYLINDER

CRANKCASE FOR SUZUKI JR 80 2002

CRANKCASE COVER

Item numbers

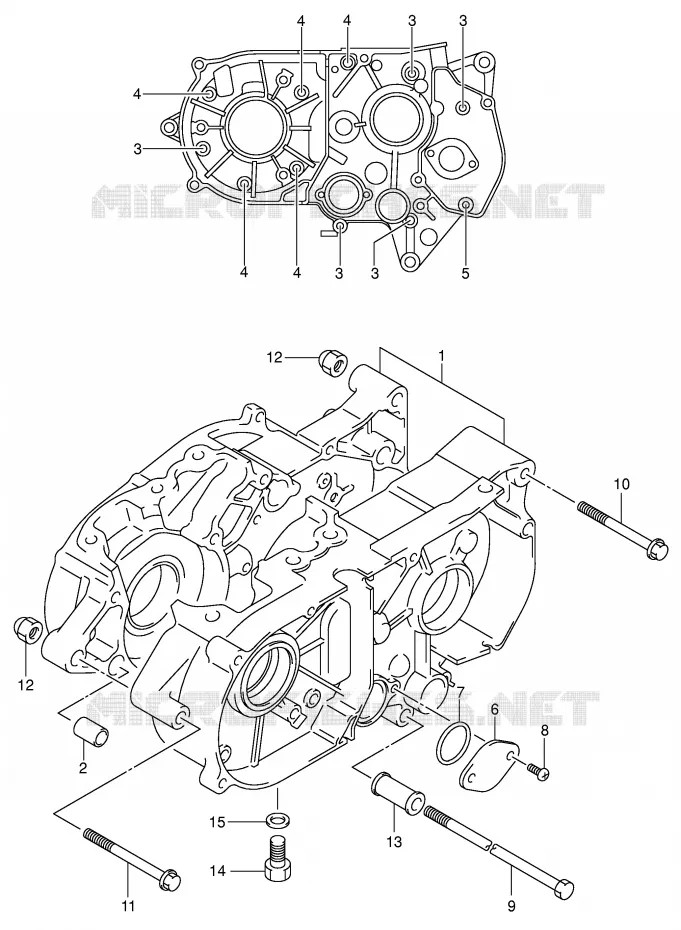

CRANKCASE Suzuki MOTO 80 JR 2002 JR80K2(P3/P28)
1
2
3
3
3
3
3
4
4
4
4
4
5
6
7
8
9
10
11
11
12
12
13
14
15
1
CRANKCASE SET

11301-46821-000   1130146821000

1130146821000
Not available
2
DOWEL PIN<br />PIN
DOWEL PIN
PIN

04211-11189-000   0421111189000

0421111189000

Unit Price

3
SCREW

02112-06453-000  

02112-0645B-000
 0211206453000

Unit Price

4
02112-0635B
SCREW

02112-06353-000  

0211206353000
Not available
5
SCREW

02112-06253-000  

02112-0625A-000
 0211206253000

Unit Price

6
CAP, GEAR SHIFT CAM PIVOT
CAP

11451-46000-000   1145146000000

1145146000000

Unit Price

7
O RING<br />O RING (D:2.4,ID:26.2)
O RING
O RING (D:2.4, ID:26.2)

09280-26005-000   0928026005000

0928026005000
Not available
8
SCREW

02112-05083-000  

02112-0508A-000
 0211205083000

Unit Price

9
BOLT, ENG MOUNT
BOLT (8X230)

09103-08101-000   0910308101000

0910308101000

Unit Price

10
BOLT
BOLT (8X100)

09103-08070-000   0910308070000

0910308070000

Unit Price

11
BOLT (8X70)

09103-08099-000   0910308099000

0910308099000

Unit Price

11
BOLT (8X75)

09103-08158-000   0910308158000

0910308158000

Unit Price

12
NUT

08319-31088-000   0831931088000

0831931088000
Not available
13
SPACER, ENGINE MOUNT(L:46)
SPACER (L:46)

11610-03400-000   1161003400000

1161003400000

Unit Price

14
BOLT

01500-10203-000  

01500-1020B-000
 0150010203000

Unit Price

15
CRNK DRAIN PLUG GASK<br />GASKET
CRNK DRAIN PLUG GASK
GASKET

09168-10002-000   0916810002000

0916810002000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki of JR. Let us know if you have any questions.

Genuine parts for Suzuki 80 JR 2002

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 80 JR 2002

Select your Suzuki 2002 model

80 JR 2002 JR80K2(P3/P28)

Suzuki JR

Displacement: 80 cc
Year: 2002
Model code JR80K2(P3 / P28)
