SHOCK ABSORBER LINKAGE

REAR WHEEL FOR SUZUKI JR 80 2002

OPTIONS

Item numbers

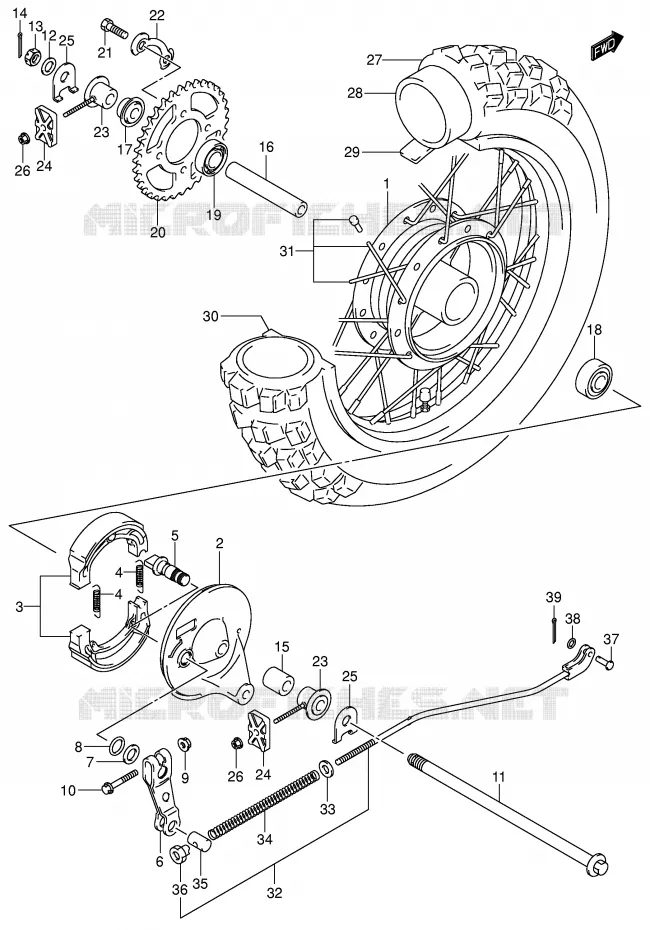

REAR WHEEL Suzuki MOTO 80 JR 2002 JR80K2(P3/P28)
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23
24
24
25
25
26
26
27
28
29
30
31
32
33
34
35
36
37
38
39
1
DISCONTINUE
DRUM, REAR HUB

64110-46401-000   6411046401000

6411046401000
Not available
2
DISCONTINUE
PANEL, REAR BRAKE ANCHOR

64210-46024-000   6421046024000

6421046024000
Not available
3
SHOE SET, BRAKE

54401-43810-000   5440143810000

5440143810000

Unit Price

4
SPRING

09443-07025-000   0944307025000

0944307025000
Not available
5
CAM, BRAKE
SHAFT, BRAKE CAM

54441-29305-000   5444129305000

5444129305000

Unit Price

6
LEVER, RR BRAKE CAM
LEVER, REAR BRAKE CAM

64451-17300-000   6445117300000

6445117300000

Unit Price

7
WASHER
WASHER (14.5X22X1.60)

09160-14055-000   0916014055000

0916014055000

Unit Price

8
O RING,02.5,ID:13.8<br />O RING (ID:13.8,D:2.50)
O RING, 02.5, ID:13.8
O RING (ID:13.8, D:2.50)

09280-14011-000   0928014011000

0928014011000

Unit Price

9
NUT 6MM

08316-10063-000  

08319-31067-000
 0831610063000

Unit Price

10
BOLT

01550-06353-000  

01550-0635B-000
 0155006353000

Unit Price

11
AXLE, RR
AXLE, REAR

64711-04711-000   6471104711000

6471104711000

Unit Price

12
WASHER

08322-01123-000  

08322-0112B-000
 0832201123000

Unit Price

13
NUT

08314-40123-000  

08314-4012A-000
 0831440123000

Unit Price

14
PIN

04111-30308-000  

04111-3030A-000
 0411130308000

Unit Price

15
SPACER, RR AXLE
SPACER, RH (12.1X22X22)

09180-12092-000   0918012092000

0918012092000

Unit Price

16
HUB BEARING SPACER
SPACER, HUB (12.6X19X91)

09180-12078-000   0918012078000

0918012078000

Unit Price

17
SPACER, RR AXLE, L
SPACER, REAR AXLE LH

64750-46000-000   6475046000000

6475046000000

Unit Price

18
B BEARING 12X37X12
B BEARING 12X37X12

08143-63017-000  

08143-6301B-000
 0814363017000

Unit Price

19
BEARING,REAR HUB,L
BEARING, REAR HUB, L

08123-63017-000  

08123-6301B-000
 0812363017000

Unit Price

20
SPROCKET, RR(NT:34)
SPROCKET, REAR (NT:34)

64511-46431-000   6451146431000

6451146431000

Unit Price

21
SPROCKET BOLT<br />BOLT (8X28)
SPROCKET BOLT
BOLT (8X28)

09100-08140-000   0910008140000

0910008140000

Unit Price

22
REAR SPROCKET WASHER
WASHER

09169-08011-000   0916908011000

0916908011000

Unit Price

23
ADJUSTER, CHAIN

61410-04701-000   6141004701000

6141004701000

Unit Price

24
PLATE, CHAIN ADJUSTER GUIDE
PLATE, ADJUSTER GUIDE

61431-04702-000   6143104702000

6143104702000

Unit Price

25
WASHER, CHAIN ADJUSTER

64712-20900-000   6471220900000

6471220900000

Unit Price

26
NUT 6MM<br />NUT
NUT 6MM
NUT

08319-31067-000   0831931067000

0831931067000

Unit Price

27
TIRE(3.00 12)
TIRE, REAR (3.00-12) IRC

65100-46470-000   6510046470000

6510046470000

Unit Price

28
TUBE, INNER

65200-46410-000  

65200-46411-000
 6520046410000

Unit Price

29
PROTECTOR, INNER TUBE

65261-46410-000  

65261-46420-000
 6526146410000

Unit Price

30
RIM, RR WHEEL(1.60X12)
RIM, WHEEL (1.60X12)

65311-46420-000   6531146420000

6531146420000

Unit Price

31
SPOKE ASSY, RR WHEEL
SPOKE SET, REAR WHEEL

65320-46430-000   6532046430000

6532046430000

Unit Price

32
ROD ASSY, RR BRAKE
ROD ASSY, REAR BRAKE

43300-03400-000   4330003400000

4330003400000

Unit Price

33
WASHER

08322-01063-000  

08322-0106A-000
 0832201063000

Unit Price

34
BRK ROD ADJ SPRING<br />SPRING
BRK ROD ADJ SPRING
SPRING

09440-09004-000   0944009004000

0944009004000

Unit Price

35
BRAKE CAM LEVER PIN<br />PIN
BRAKE CAM LEVER PIN
PIN

09209-11002-000   0920911002000

0920911002000

Unit Price

36
09150-06010
NUT

09150-06014-000  

0915006014000
Not available
37
FR BRAKE CABLE PIN
PIN

09200-06013-000   0920006013000

0920006013000

Unit Price

38
WASHER

08322-01063-000  

08322-0106A-000
 0832201063000

Unit Price

39
PIN

04111-20158-000  

04111-2015A-000
 0411120158000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR WHEEL of your Suzuki of JR. Let us know if you have any questions.

Genuine parts for Suzuki 80 JR 2002
