Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRAME - SEAT (MODEL G) REFER TO FIG.17 (E-3) FOR MODEL H/J/K/L

FRAME - SEAT (MODEL H / J / K / L) FOR SUZUKI RM 80 1986

FRAME - SEAT (MODEL M / N) REFER TO FIG.17B(E-5) FOR MODEL P/R/S

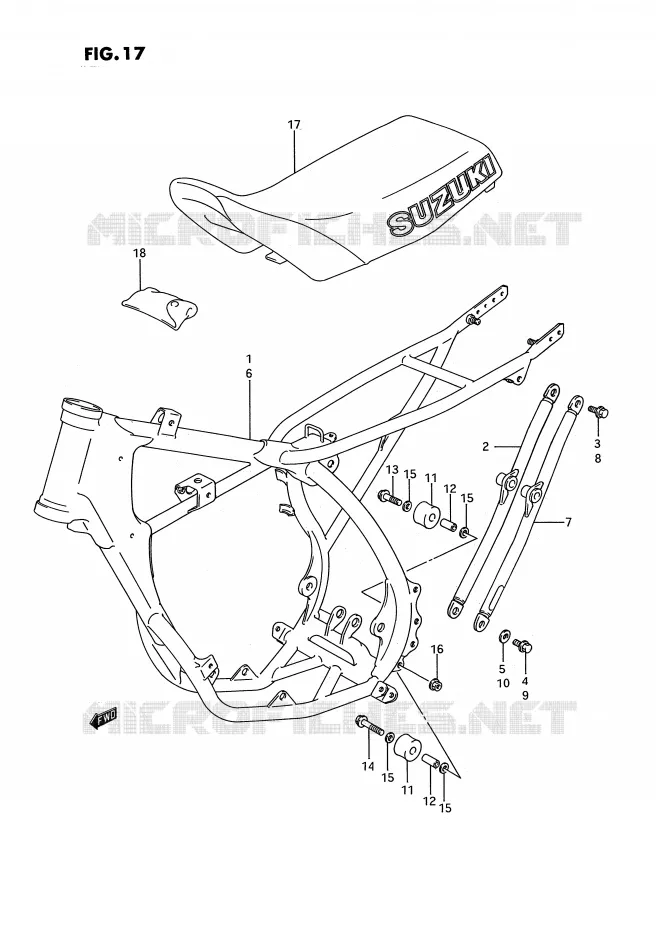

FRAME - SEAT (MODEL H/J/K/L) Suzuki MOTO 80 RM 1986 RM80G(E3)
1
FRAME (BLUE)

41100-02B10-19F   4110002B1019F

4110002B1019F
Not available
1
DISCONTINUE

41100-02B11-19F  

4110002B1119F
Not available
2
TUBE, FRAME SIDE LH

41670-02B10-000   4167002B10000

4167002B10000
Not available
3
09103-08505
BOLT FRONT FOOTREST

09103-08055-000  

0910308055000
Not available
4
BOLT(8X16)

09100-08267-000  

09100-08284-000
 0910008267000

Unit Price

4
BOLT
BOLT, LOWER

09103-08147-000   0910308147000

0910308147000

Unit Price

5
WASHER (8.1X19X2.3)

09160-08042-000   0916008042000

0916008042000
Not available
6
DISCONTINUE
FRAME SET (BLUE)

41100-02880-19F   411000288019F

411000288019F
Not available
6
DISCONTINUE

41100-02890-19F  

411000289019F
Not available
7
TUBE, FRAME SIDE LH (BLUE)

41670-02B20-19F   4167002B2019F

4167002B2019F
Not available
7
DISCONTINUE
TUBE, FRAME SIDE LH (BLUE)

41670-02B30-19F   4167002B3019F

4167002B3019F
Not available
8
09103-08505
BOLT FRONT FOOTREST

09103-08055-000  

0910308055000
Not available
9
BOLT(8X16)

09100-08267-000  

09100-08284-000
 0910008267000

Unit Price

10
WASHER (8.1X19X2.3)

09160-08042-000   0916008042000

0916008042000
Not available
11
ROLLER, CHAIN CONTROL

43911-35B00-000   4391135B00000

4391135B00000

Unit Price

12
SPACER 8X6X12X25.5

09180-08119-000  

09180-08156-000
 0918008119000

Unit Price

13
BOLT, CHAIN ROLL *S1
BOLT, UPPER

09103-08083-000   0910308083000

0910308083000

Unit Price

14
BOLT, CHAIN ROLLER
BOLT, LOWER

09103-08043-000   0910308043000

0910308043000

Unit Price

14
BOLT

09103-08081-000  

01550-08507-000
 0910308081000

Unit Price

14
BOLT, 8X55

09103-08170-000  

09103-08339-000
 0910308170000

Unit Price

15
WASHER, THRUST

08211-08161-000  

09181-08167-000
 0821108161000

Unit Price

16
NUT
NUT

08319-31087-000   0831931087000

0831931087000
Not available
17
DISCONTINUE

45100-02B10-4UZ  

4510002B104UZ
Not available
17
SEAT ASSY (BLUE)

45100-02B20-4UZ   4510002B204UZ

4510002B204UZ
Not available
17
DISCONTINUE
SEAT ASSY (BLUE)

45100-02B21-4UZ   4510002B214UZ

4510002B214UZ
Not available
18
DISCONTINUE

09800-00310-000  

0980000310000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
