Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRONT FORK (MODEL G / H / J) REFER TO FIG.23A(F-6) FOR MODEL K

FRONT FORK (MODEL K) FOR SUZUKI RM 80 1986

FRONT FORK (MODEL L / M / N / P / R) REFER TO FIG.23C(F-8) FOR MODEL S

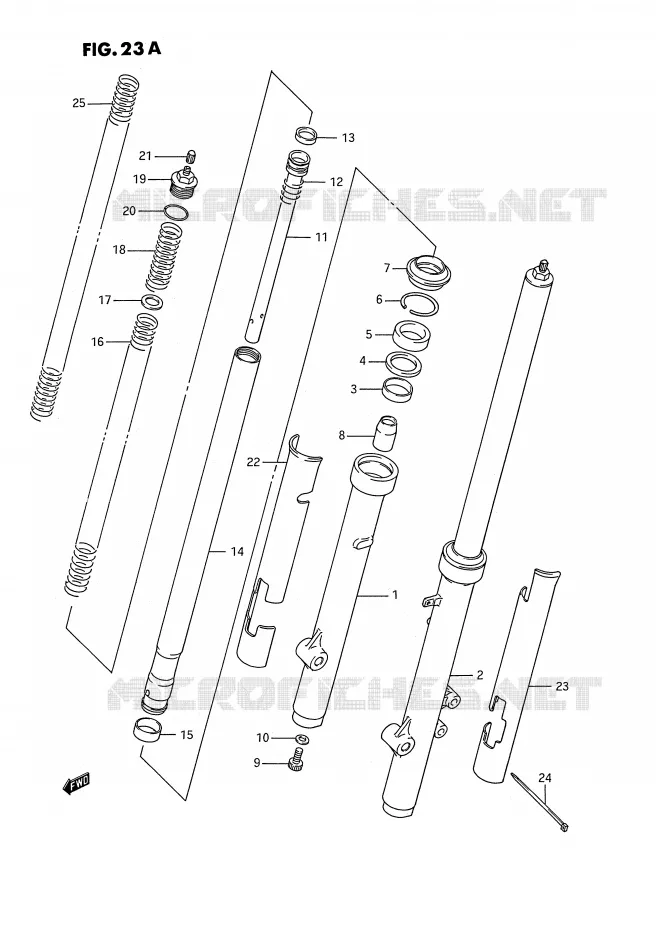

FRONT FORK (MODEL K) Suzuki MOTO 80 RM 1986 RM80G(E3)
1
TUBE, OUTER RH

51130-02B20-000   5113002B20000

5113002B20000
Not available
2
.TUBE, OUTER LH

51140-02B20-000   5114002B20000

5114002B20000
Not available
3
BUSH, GUIDE

51152-45400-000   5115245400000

5115245400000

Unit Price

4
SPACER, SEAL

51168-30B00-000   5116830B00000

5116830B00000

Unit Price

5
SEAL, OIL

51153-34A00-000  

51153-19D10-000
 5115334A00000

Unit Price

6
RING,OIL SEAL STOPPER<br />RING, STOPPER
RING, OIL SEAL STOPPER
RING, STOPPER

51156-01A00-000   5115601A00000

5115601A00000

Unit Price

7
SEAL, DUST

51571-34A00-000  

51571-03B20-000
 5157134A00000

Unit Price

8
PIECE, OIL LOCK

51195-02B20-000   5119502B20000

5119502B20000
Not available
9
DISCONTINUE
BOLT

51147-02B01-000   5114702B01000

5114702B01000
Not available
10
.GASKET

51148-02B00-000   5114802B00000

5114802B00000
Not available
11
SEAT, UNDER

51194-02B20-000   5119402B20000

5119402B20000
Not available
12
DISCONTINUE
SPRING, REBOUND

51177-02B20-000   5117702B20000

5117702B20000
Not available
13
DISCONTINUE
RING, PISTON

51196-38A00-000   5119638A00000

5119638A00000
Not available
14
TUBE, INNER

51110-02B20-000   5111002B20000

5111002B20000
Not available
15
DISCONTINUE
BUSH, SLIDE

51121-34A00-000   5112134A00000

5112134A00000
Not available
16
SPRING, LOWER

51174-02B20-000   5117402B20000

5117402B20000
Not available
17
GUIDE,SPRING<br />JOINT, SPRING
GUIDE, SPRING
JOINT, SPRING

51172-34370-000   5117234370000

5117234370000

Unit Price

18
SPRING, UPPER

51171-02B20-000   5117102B20000

5117102B20000
Not available
19
DISCONTINUE
BOLT, FORK

51351-02B20-000   5135102B20000

5135102B20000
Not available
20
DISCONTINUE
O RING

51117-02B20-000   5111702B20000

5111702B20000
Not available
21
CAP
CAP, VALVE

51294-20400-000   5129420400000

5129420400000

Unit Price

22
DISCONTINUE
RH FORK PROTECTOR

51201-02B00-000   5120102B00000

5120102B00000
Not available
23
DISCONTINUE
PROTECTOR, FRONT FORK LH

51202-02B00-000   5120202B00000

5120202B00000
Not available
24
CLAMP

09407-20401-000  

09407-25402-000
 0940720401000

Unit Price

25
SPRING (HARD)

51171-02B30-000   5117102B30000

5117102B30000
Not available
99x
DAMPER ASSY, RH

51103-02B20-000   5110302B20000

5110302B20000
Not available
99x
DAMPER ASSY, LH

51104-02B20-000   5110402B20000

5110402B20000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
