Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

OIL PUMP

CLUTCH FOR SUZUKI FB 80 1989

TRANSMISSION

Item numbers

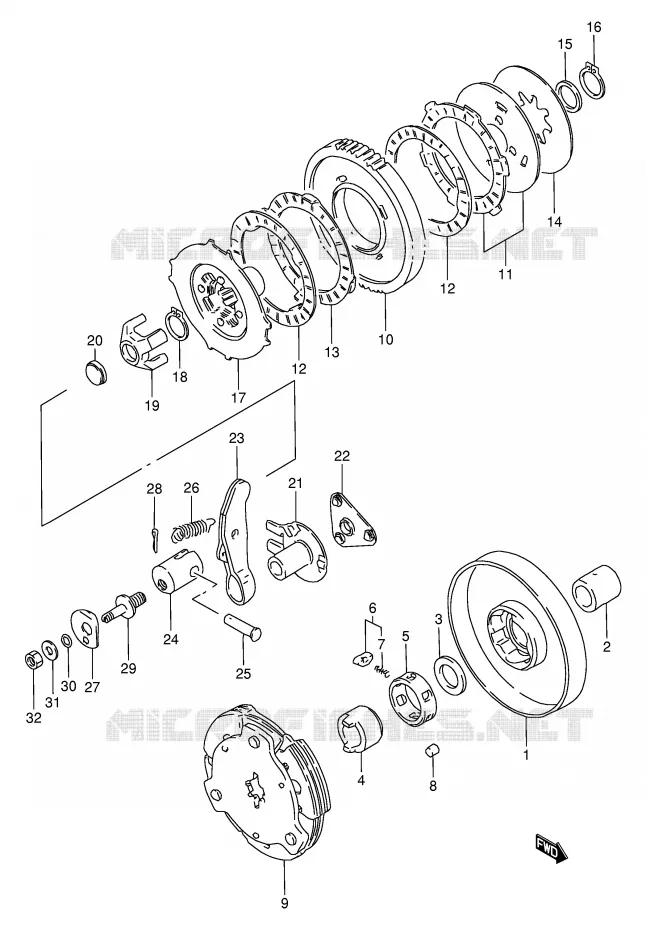

CLUTCH Suzuki SCOOTER 80 FB 1989 FB80K(E1)
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
21
22
23
24
25
26
27
28
29
30
31
32
1
GEAR, PRIMARY DRIVE (NT:17)

21110-02A02-000   2111002A02000

2111002A02000
Not available
2
SPACER(16X21X23.5)
SPACER

09180-16031-000   0918016031000

0918016031000

Unit Price

3
WASHER

08221-16285-000   0822116285000

0822116285000
Not available
4
RACE, ONE WAY CLUTCH INNER

21631-02A02-000   2163102A02000

2163102A02000
Not available
5
RETAINER, ONE WAY CLUTCH

21652-35401-000   2165235401000

2165235401000
Not available
6
SPRING, ONE WAY CLUTCH

21236-30830-000   2123630830000

2123630830000
Not available
7
SPRING

09440-02003-000   0944002003000

0944002003000

Unit Price

8
ROLLER(7X10)
ROLLER

09261-07006-000   0926107006000

0926107006000

Unit Price

9
DISCONTINUE
CLUTCH ASSY, SHOE

21501-02A02-000  

2150102A02000
Not available
10
GEAR, PRIMARY DRIVEN

21210-09410-000   2121009410000

2121009410000
Not available
11
PLATE SET, CLUTCH

21400-02800-000   2140002800000

2140002800000
Not available
12
PLATE, CLUTCH DRIVEN

21451-35401-000   2145135401000

2145135401000
Not available
13
PLATE, CLUTCH DRIVEN NO.2

21452-35401-000   2145235401000

2145235401000

Unit Price

14
SPRING

09164-22004-000   0916422004000

0916422004000
Not available
15
SPACER(22X28X4)
SPACER

09180-22033-000   0918022033000

0918022033000

Unit Price

16
CIRCLIP

08331-31216-000  

08331-31219-000
 0833131216000

Unit Price

17
HUB, CLUTCH SLEEVE
HUB, SLEEVE

21410-09403-000   2141009403000

2141009403000

Unit Price

18
CIRCLIP

08331-31176-000  

08331-31179-000
 0833131176000

Unit Price

19
PIECE, CLUTCH PUSH

23121-35410-000   2312135410000

2312135410000
Not available
20
BEARING(16X6)
BEARING

09266-16002-000   0926616002000

0926616002000

Unit Price

21
GUIDE, BALL OUTER

23230-09401-000   2323009401000

2323009401000
Not available
21
GUIDE, BALL OUTER

23230-30A00-000   2323030A00000

2323030A00000
Not available
22
BALL, CLUTCH RELEASE

23250-35401-000   2325035401000

2325035401000
Not available
23
ARM, CLUTCH RELEASE

23221-09404-000   2322109404000

2322109404000
Not available
24
BOSS, RELEASE ARM

23222-09400-000   2322209400000

2322209400000
Not available
25
PIN

09200-07005-000   0920007005000

0920007005000

Unit Price

26
SPRING

09443-06053-000   0944306053000

0944306053000

Unit Price

27
WASHER

09169-06046-000   0916906046000

0916906046000

Unit Price

28
04111-16208
.PIN, COTTER

04111-16158-000  

0411116158000
Not available
29
BOLT, ADJUST

23223-09403-000   2322309403000

2322309403000
Not available
30
O RING
O RING (D:1.9, ID:5.7)

09280-06005-000   0928006005000

0928006005000

Unit Price

31
WASHER, 6.5X14X2.3

09160-06017-000  

09160-06127-000
 0916006017000

Unit Price

32
NUT

08310-22067-000  

08310-00067-000
 0831022067000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CLUTCH of your Suzuki of FB. Let us know if you have any questions.

Genuine parts for Suzuki 80 FB 1989

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 80 FB 1989

Select your Suzuki 1989 model

80 FB 1989 FB80K(E1)

Suzuki FB

Displacement: 80 cc
Year: 1989
Model code FB80K(E1)
