FRAME FOR SUZUKI FR 80 1981

FUEL TANK

FRAME (RED)

41100-35004-061 4110035004061

Not available

FRAME (BLUE)

41100-35004-797 4110035004797

Not available

FRAME (BLUE)

41100-35020-04Y 411003502004Y

Not available

FRAME (RED)

41100-35020-061 4110035020061

Not available

GRIP, STAND

41411-35600-000 4141135600000

Not available

BOLT, UPPER

01107-08168-000 0110708168000

Not available

8 MM LOCK WASHER

08321-21088-000

08321-01087-000

$3,97

Unit Price

WASHER

08322-21088-000

08322-01087-000

$3,97

Unit Price

EMBLEM, FRAME SIDE RH

68131-35601-61J 681313560161J

Not available

EMBLEM, FRAME SIDE RH

68131-35620-000 6813135620000

Not available

EMBLEM, FRAME SIDE RH

68131-35022-000 6813135022000

Not available

EMBLEM, FRAME SIDE LH

68141-35601-61J 681413560161J

Not available

EMBLEM, FRAME SIDE LH

68141-35620-000 6814135620000

Not available

EMBLEM, FRAME SIDE LH

68141-35022-000 6814135022000

Not available

SCREW

02132-03085-000 0213203085000

Not available

NUT

08310-11038-000

08310-00033-000

$3,97

Unit Price

.LOCK WASHER

08321-21038-000 0832121038000

Not available

WASHER

08322-21038-000

08322-01037-000

$2,97

Unit Price

EMBLEM NUT
NUT

09148-03002-000 0914803002000

$3,97

Unit Price

PLUG(OD:12)

09250-06001-000

09250-06005-000

$3,97

Unit Price

CAP

09250-07001-000 0925007001000

Not available

FENDER, REAR (GRAY)

63110-35000-01U 631103500001U

Not available

FENDER, REAR (RED)

63110-35000-061 6311035000061

Not available

FENDER, REAR (GREEN)

63110-35000-778 6311035000778

Not available

FENDER, REAR (BLUE)

63110-35000-797 6311035000797

Not available

FENDER, REAR (BLUE)

63110-35010-04Y 631103501004Y

Not available

FENDER, REAR (RED)

63110-35010-061 6311035010061

Not available

BOLT

01204-06127-000 0120406127000

Not available

BOLT, REAR FENDER SIDE

09100-06010-000 0910006010000

Not available

LOCK WASHER

08321-21068-000 0832121068000

Not available

CLUTCH REL WASHER
WASHER

09160-06019-000 0916006019000

$2,97

Unit Price

NUT

08313-11068-000 0831311068000

Not available

HOLDING BAG, TOOL

94980-19001-000 9498019001000

Not available

TAPE, ADHESIVE

94981-19001-000 9498119001000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

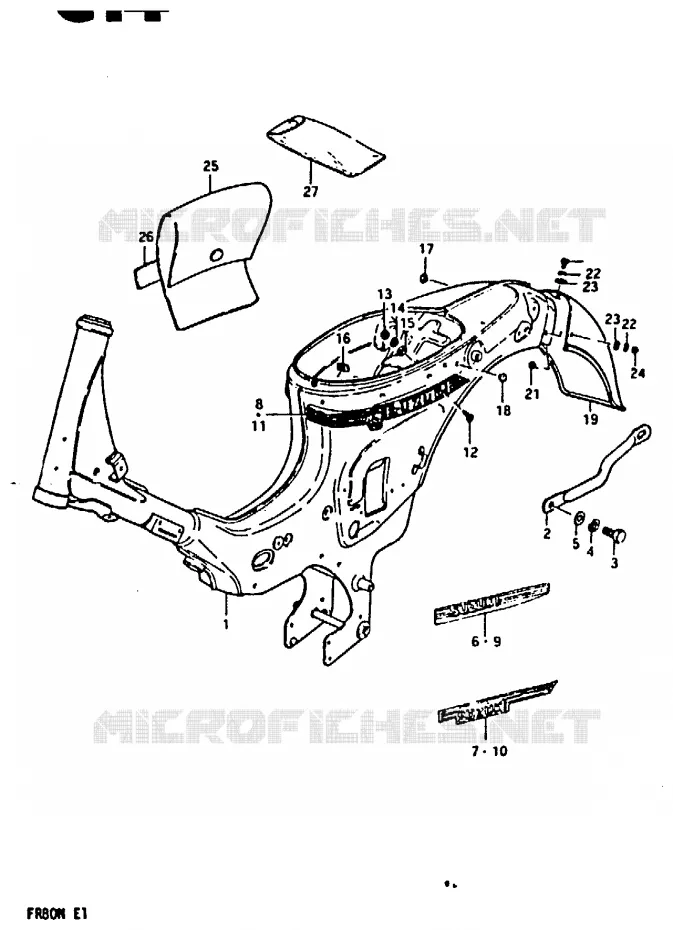

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME of your Suzuki FR 80 B of FR. Let us know if you have any questions.
