GEAR SHIFTING ASSY

KICK STARTER FOR SUZUKI FR 80 1981

FUEL COCK

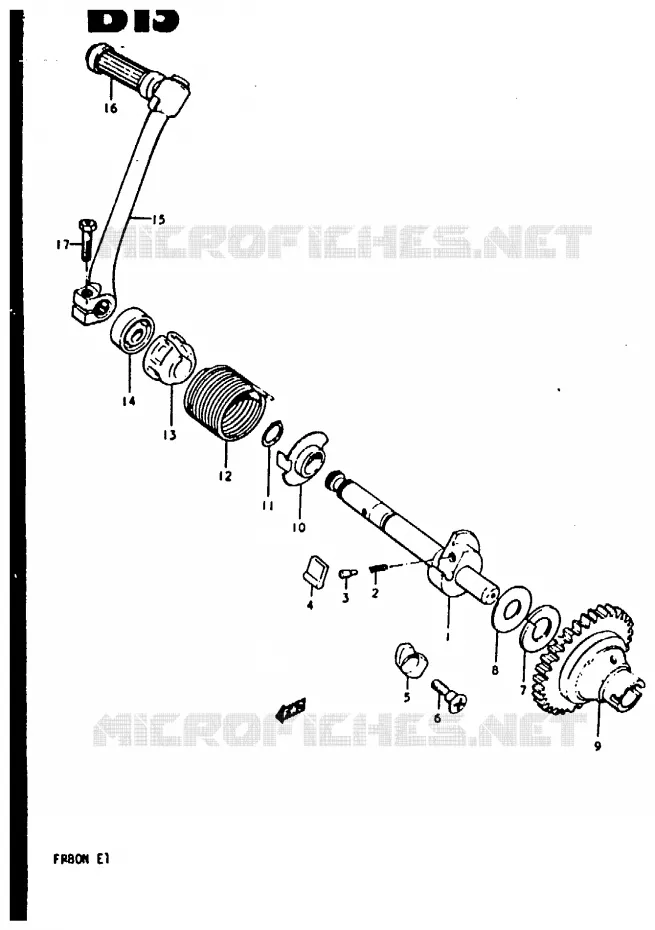

KICK STARTER Suzuki SCOOTER 80 FR 1981 FR80M(M/B/N)
1
SHAFT, KICK STARTER

26211-35001-000   2621135001000

2621135001000
Not available
2
K S PAWL SPRING<br />SPRING
K S PAWL SPRING
SPRING

09440-04010-000   0944004010000

0944004010000

Unit Price

3
PIN
PIN

09209-05012-000   0920905012000

0920905012000
Not available
4
PAWL
PAWL

26231-01000-000   2623101000000

2623101000000
Not available
5
LIFTER, PAWL

26232-06000-000   2623206000000

2623206000000
Not available
6
SCREW
SCREW

09139-06002-000   0913906002000

0913906002000
Not available
7
DISCONTINUE
LOCK WASHER

09162-12003-000   0916212003000

0916212003000
Not available
8
WASHER

09181-12005-000   0918112005000

0918112005000
Not available
9
DISCONTINUE
GEAR, (NT:33)

26241-35000-000   2624135000000

2624135000000
Not available
10

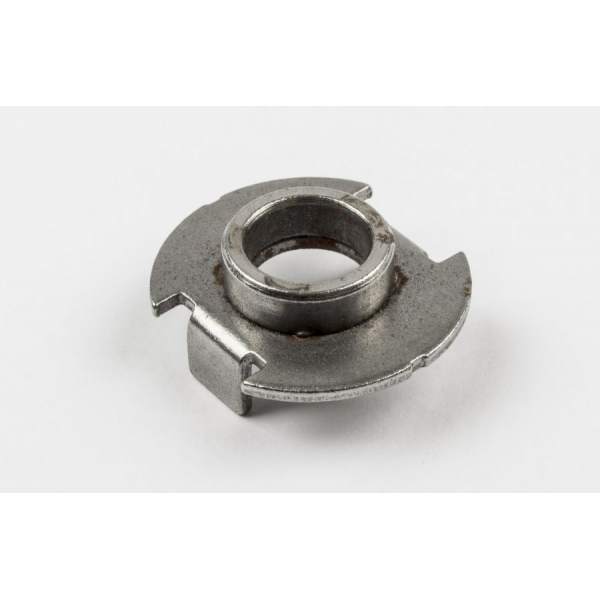

HOLDER, SPRING
HOLDER, SPRING

26222-01001-000   2622201001000

2622201001000
Not available
11
CIRCLIP

08331-11149-000   0833111149000

0833111149000
Not available
12

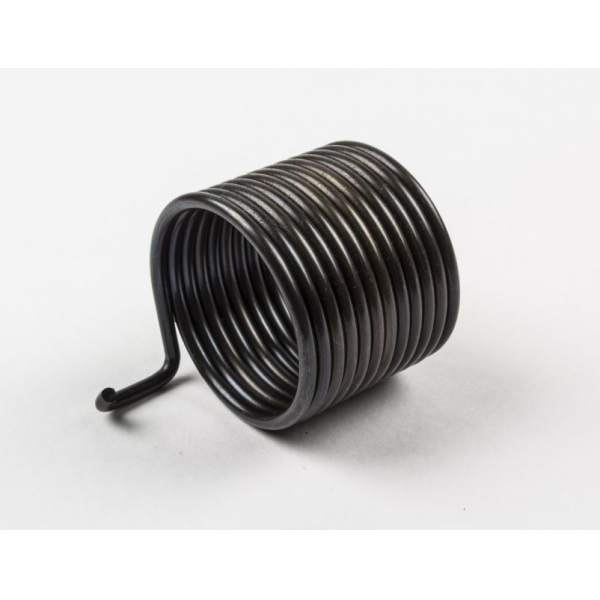

SPRING
SPRING

09448-38002-000   0944838002000

0944838002000
Not available
13

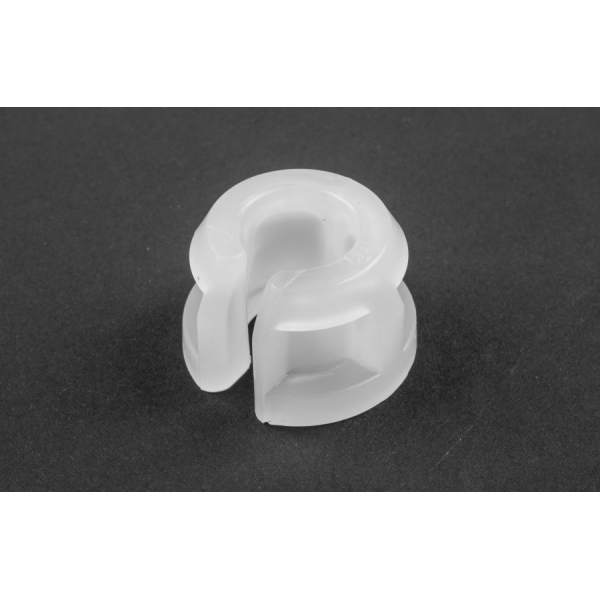

GUIDE, SPRING
GUIDE, SPRING

26221-01030-000   2622101030000

2622101030000
Not available
14
KICKSTART OIL SEAL
KICKSTART OIL SEAL

09285-14001-000  

09285-14002-000
 0928514001000

Unit Price

15
DISCONTINUED

26300-03002-000   2630003002000

2630003002000
Not available
15
26300-35552
LEVER ASSY, KICK STARTER

26300-13990-000  

2630013990000
Not available
16
26352-01020<br />RUBBER
26352-01020
RUBBER

26352-01000-000  

2635201000000
Not available
17
BOLT, ADJUSTER

01107-06208-000   0110706208000

0110706208000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the KICK STARTER of your Suzuki FR 80 B of FR. Let us know if you have any questions.

Genuine parts for Suzuki 80 FR 1981

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 80 FR 1981

Select your Suzuki 1981 model

80 FR 1981 FR80M(M/B/N)

FR 80 B

Suzuki FR

Displacement: 80 cc
Year: 1981
Model code FR80M(M / B / N)
