MUFFLER

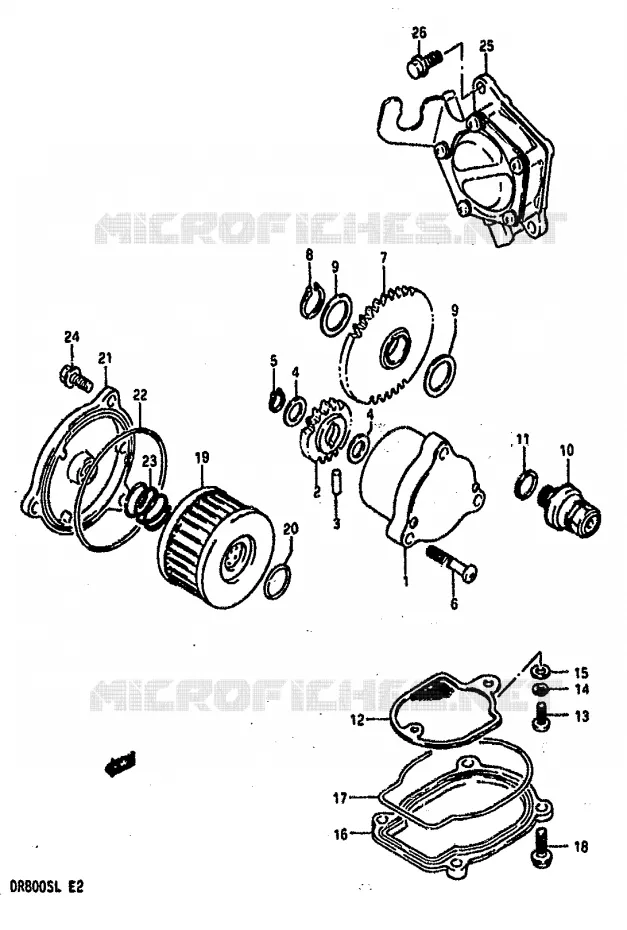

OIL PUMP-FUEL PUMP FOR SUZUKI DR 800 1990

OIL COOLER

DISCONTINUE
PUMP ASSY, ENGINE OIL

16400-44B00-000 1640044B00000

Not available

DISCONTINUE
GEAR, DRIVEN (NT:15)

16331-44B00-000 1633144B00000

Not available

GR SHIFT CAM DR PIN
PIN

09261-04009-000 0926104009000

$2,97

Unit Price

SHIM
WASHER

08221-10185-000 0822110185000

$3,97

Unit Price

CIRCLIP

08331-31109-000 0833131109000

$2,97

Unit Price

SCREW

02112-06308-000

02112-06307-000

$3,97

Unit Price

DISCONTINUE
GEAR, DRIVE (NT:35)

16320-44B00-000 1632044B00000

Not available

THIRD PINION CIRCLIP
CIRCLIP

09380-17001-000 0938017001000

$2,97

Unit Price

WASHER

08211-17241-000 0821117241000

$3,97

Unit Price

DISCONTINUE

16440-44B00-000

Not available

WASHER

08212-14181-000 0821214181000

Not available

DISCONTINUE
STRAINER, ENGINE OIL

16520-44B00-000 1652044B00000

Not available

SCREW

02112-05126-000

02112-0512A-000

$2,97

Unit Price

WASHER, LOCK

08321-21056-000

08321-01053-000

$2,97

Unit Price

WASHER

08322-21056-000

08322-0105B-000

$3,97

Unit Price

CAP, OIL STRAINER

16523-38A00-000 1652338A00000

$30,97

Unit Price

O RING, OIL STRAINER CAP
O RING

16528-38A00-000 1652838A00000

$13,97

Unit Price

BOLT

01517-06207-000

01550-06207-000

$3,97

Unit Price

FILTER ASSY, ENGINE OIL

16510-37440-000

16510-37450-000

$10,45

Unit Price

O RING (D:2.4, ID:15.8)

09280-16005-000 0928016005000

$3,97

Unit Price

CAP, OIL FILTER

16512-44B00-0ML

16512-14D00-000

$36,97

Unit Price

O RING OIL FLT CAP
O RING (D:2.4, ID:73)

09280-72001-000 0928072001000

Not available

OIL STRAINER SPRING
SPRING

09440-21004-000 0944021004000

$18,97

Unit Price

BOLT

01547-06165-000

01547-06163-000

$4,97

Unit Price

15100-31D00

15100-44B00-000

Not available

01550-0616A
BOLT REFER TO FIG.52A(H-10) FOR MO

01517-06164-000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL PUMP-FUEL PUMP of your Suzuki DR 800 S of DR. Let us know if you have any questions.
