REAR CALIPER

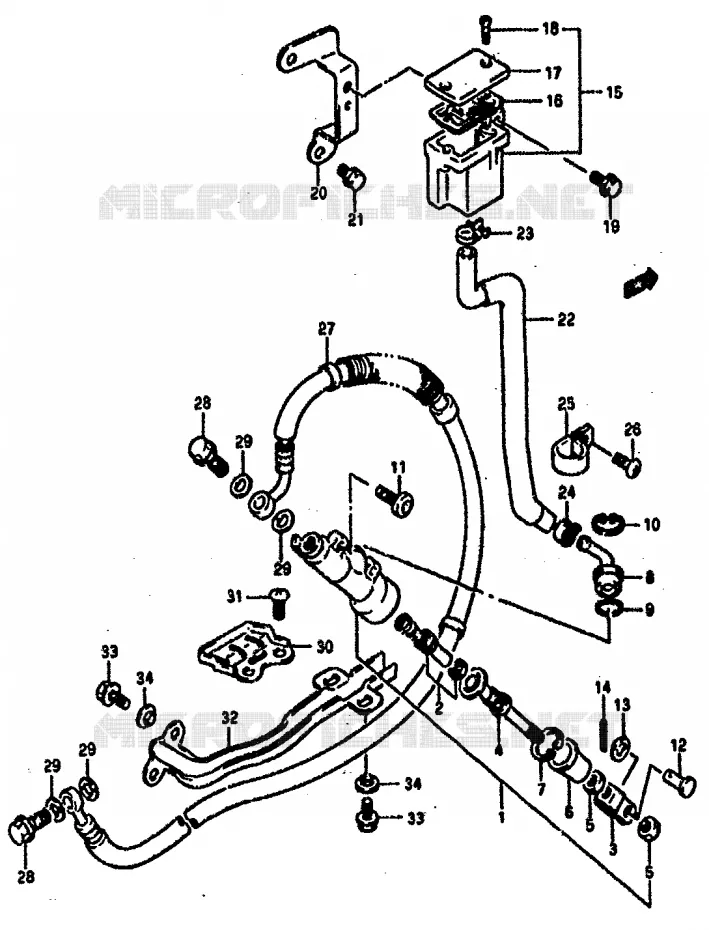

REAR BRAKE MASTER CYLINDER FOR SUZUKI DR 800 1990

OPTIONS

CYLINDER ASSY, REAR MASTER

69600-44B01-000 6960044B01000

Not available

PISTON CUP SET RR
PISTON/CUP SET

69600-34810-000 6960034810000

$77,97

Unit Price

YOKE

69692-00B20-000

69692-00B21-000

$33,97

Unit Price

ROD, PUSH

69670-44B00-000 6967044B00000

$30,97

Unit Price

NUT

69693-05A00-000 6969305A00000

$3,97

Unit Price

BOOT

69691-00A00-000 6969100A00000

$8,97

Unit Price

CIRCLIP

51162-70040-000 5116270040000

$6,97

Unit Price

CONNECTOR

69672-00B20-000 6967200B20000

$12,97

Unit Price

O RING CONECTOR
O RING

69686-34200-000 6968634200000

$6,97

Unit Price

CIRCLIP

69674-00B20-000 6967400B20000

$6,97

Unit Price

BOLT

09106-06064-000 0910606064000

$10,97

Unit Price

09200-08048-000 0920008048000

$5,97

Unit Price

WASHER

09160-08074-000 0916008074000

Not available

04111-20158-000

04111-2015A-000

$2,97

Unit Price

DISCONTINUE

69740-24A00-000

Not available

DIAPHRAGM

59667-04700-000 5966704700000

$11,97

Unit Price

CAP

69669-24A01-000 6966924A01000

$22,97

Unit Price

SCREW

69689-04A00-000 6968904A00000

$2,97

Unit Price

BOLT

01517-06167-000

01550-06167-000

$3,97

Unit Price

PLATE, RESERVOIR TANK

69750-44B00-000 6975044B00000

Not available

BOLT, PLATE

09103-06078-000 0910306078000

Not available

HOSE, RESERVOIR TANK

69730-44B01-000 6973044B01000

Not available

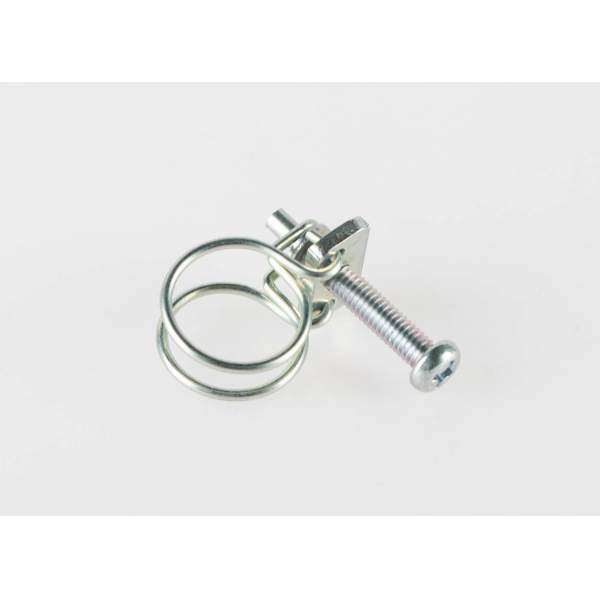

CLAMP, HOSE UPPER

09400-14301-000 0940014301000

Not available

CLIP

09401-12402-000

09401-12404-000

$3,97

Unit Price

CLAMP, HOSE GUIDE

09403-19404-000 0940319404000

Not available

SCREW

02142-16128-000

02142-16123-000

$3,97

Unit Price

DISCONTINUE
HOSE, REAR BRAKE

69480-44B01-000 6948044B01000

Not available

UNION

09360-10017-000

09360-10061-000

$10,97

Unit Price

WASHER

09161-10009-000 0916110009000

$3,97

Unit Price

GUIDE, BRAKE HOSE (SILVER)

69243-44B10-13L 6924344B1013L

Not available

SCREW

02142-06164-000

02142-0616A-000

$2,97

Unit Price

PROTECTOR, BRAKE HOSE

69261-44B00-000 6926144B00000

Not available

01550-0616A
BOLT REFER TO FIG.52A(H-10) FOR MO

01517-06164-000

Not available

LOCK WASHER

09169-06037-000

09169-06011-000

$9,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR BRAKE MASTER CYLINDER of your Suzuki DR 800 S of DR. Let us know if you have any questions.
