Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CLUTCH

TRANSMISSION FOR SUZUKI DR 800 1991

GEAR SHIFTING ASSY

Item numbers

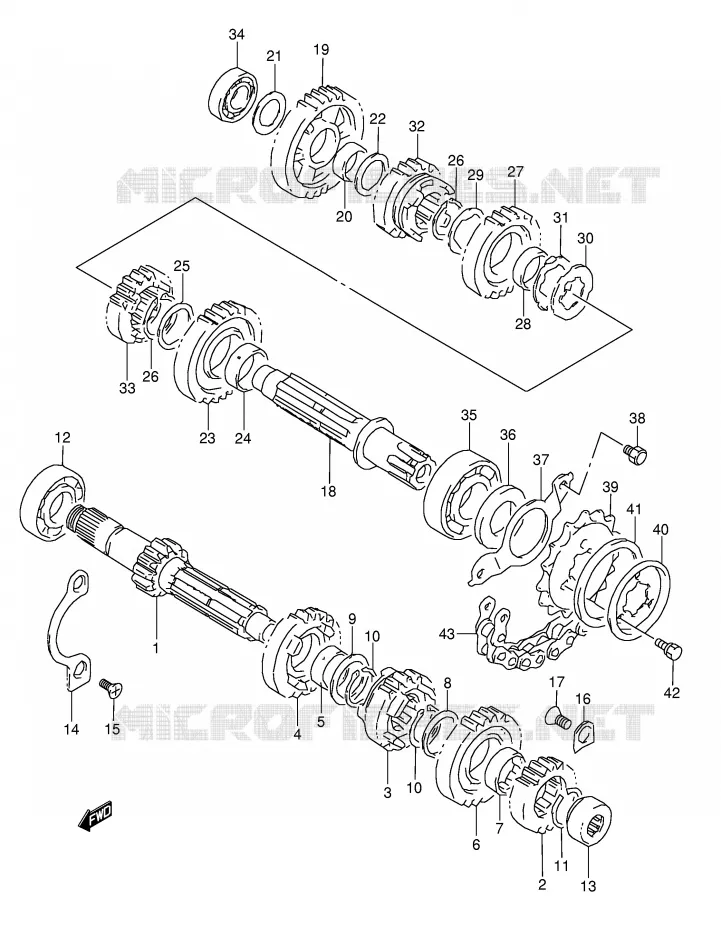

TRANSMISSION Suzuki MOTO 800 DR 1991 DR800SUM(E4)
1
1
2
2
2
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
15
16
17
17
18
19
19
20
21
22
23
23
23
23
24
25
26
26
27
28
29
30
31
32
33
34
35
36
37
38
38
39
39
40
41
42
43
43
1
SHAFT, COUNTER
COUNTERSHAFT (NT:13)

24121-44B10-000   2412144B10000

2412144B10000

Unit Price

1
COUNTERSHAFT (NT:13)

24121-44B02-000   2412144B02000

2412144B02000
Not available
2
GEAR, 2ND DRIVE(NT:19)

24221-44B00-000  

24221-44B20-000
 2422144B00000

Unit Price

2
GEAR, 2ND DRIVE (NT:19)

24221-44B10-000   2422144B10000

2422144B10000
Not available
3
GEAR, 3RD DRIVE (NT:20)

24231-44B01-000   2423144B01000

2423144B01000
Not available
4
DISCONTINUE
GEAR, 4TH DRIVE (NT:23)

24241-44B01-000   2424144B01000

2424144B01000
Not available
5
BUSH

09300-25023-000  

24252-19F00-000
 0930025023000

Unit Price

6
DISCONTINUE

24251-44B01-000  

2425144B01000
Not available
7
BUSH

24252-38A00-000   2425238A00000

2425238A00000
Not available
8
WASHER,LOCK<br />WASHER
WASHER, LOCK
WASHER

09167-25021-000   0916725021000

0916725021000

Unit Price

9
WASHER THURST
WASHER

08211-25351-000   0821125351000

0821125351000

Unit Price

10
3RD PINION CIRCLIP<br />CIRCLIP
3RD PINION CIRCLIP
CIRCLIP

09380-25003-000   0938025003000

0938025003000

Unit Price

11
CIRCLIP
CIRCLIP

09380-25013-000   0938025013000

0938025013000

Unit Price

12
BEARING 22 X 56 X 16
BEARING, RH (22X56X16)

09262-22028-000   0926222028000

0926222028000

Unit Price

13
BEARING(17X30X14)
BEARING, LH

09263-17026-000   0926317026000

0926317026000

Unit Price

14
HOLDER, BEARING, RH

24741-44B00-000   2474144B00000

2474144B00000
Not available
15
SCREW

02122-06123-000  

02122-0612B-000
 0212206123000

Unit Price

15
SCREW

02122-06128-000  

02122-06127-000
 0212206128000

Unit Price

16
RETAINER
HOLDER, BEARING, LH

24742-44B00-000   2474244B00000

2474244B00000

Unit Price

17
SCREW

02122-06123-000  

02122-0612B-000
 0212206123000

Unit Price

17
SCREW

02122-06128-000  

02122-06127-000
 0212206128000

Unit Price

18
DISCONTINUE
DRIVESHAFT

24131-44B00-000   2413144B00000

2413144B00000
Not available
19
GEAR, 1ST DRIVEN(NT:32)

24311-44B00-000  

24311-44B10-000
 2431144B00000

Unit Price

20
BUSH

09300-22005-000  

24312-02F00-000
 0930022005000

Unit Price

21
WASHER

08211-20321-000  

09181-20223-000
 0821120321000

Unit Price

22
WASHER
WASHER

08211-22341-000   0821122341000

0821122341000

Unit Price

23
GEAR, 2ND DRIVEN(NT:30)

24321-44B00-000  

24321-44B20-000
 2432144B00000

Unit Price

24
BUSH
BUSH

09300-28002-000   0930028002000

0930028002000

Unit Price

25
WASHER
WASHER

08211-28361-000   0821128361000

0821128361000

Unit Price

26
CIRCLIP

08331-31286-000  

08331-31289-000
 0833131286000

Unit Price

27
GEAR, 3RD DRIVEN(NT:24)

24331-44B00-000  

24331-44B01-000
 2433144B00000

Unit Price

28
BUSH
BUSH

24332-27A00-000   2433227A00000

2433227A00000

Unit Price

29
WASHER,LOCK<br />WASHER, RH
WASHER, LOCK
WASHER, RH

09167-28001-000   0916728001000

0916728001000

Unit Price

30
WASHER,LOCK<br />WASHER, LH
WASHER, LOCK
WASHER, LH

09167-28002-000   0916728002000

0916728002000

Unit Price

31
WASHER<br />WASHER, LH
WASHER
WASHER, LH

09169-28001-000   0916928001000

0916928001000

Unit Price

32
DISCONTINUE

24341-44B01-000  

2434144B01000
Not available
33
GEAR, 5TH DRIVEN (NT:20)

24351-44B01-000   2435144B01000

2435144B01000
Not available
34
BEARING DRIVE SHAFT
BEARING, RH

09262-20059-000   0926220059000

0926220059000

Unit Price

35
DISCONTINUE
BEARING, LH

09262-25066-000   0926225066000

0926225066000
Not available
36
OIL SEAL
OIL SEAL, LH

09283-25076-000   0928325076000

0928325076000

Unit Price

37
DISCONTINUE
HOLDER, OIL SEAL

24751-14A01-000   2475114A01000

2475114A01000
Not available
38
BOLT

01107-06106-000  

01500-0610B-000
 0110706106000

Unit Price

39
SPROCKET, ENGINE(15T)
SPROCKET (NT:15)

27511-31D00-000   2751131D00000

2751131D00000

Unit Price

39
DISCONTINUE
SPROCKET (NT:15)

27511-44B00-000   2751144B00000

2751144B00000
Not available
40
PLATE, ENGINE SPROCKET
PLATE

27512-44B00-000   2751244B00000

2751244B00000

Unit Price

41
DAMPER, ENGINE SPROCKET
DAMPER

27517-37400-000   2751737400000

2751737400000

Unit Price

42
BOLT

09111-06039-000   0911106039000

0911106039000

Unit Price

43
CHAIN, DRIVE (DID525V11, 116L)

27600-32C10-116  

27600-32C90-116
 2760032C10116

Unit Price

43
DISCONTINUE
CHAIN, DRIVE (520VLX116LE) DID

27600-44B10-116   2760044B10116

2760044B10116
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRANSMISSION of your Suzuki DR 800 S of DR. Let us know if you have any questions.

Genuine parts for Suzuki 800 DR 1991

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 800 DR 1991

Select your Suzuki 1991 model

800 DR 1991 DR800SUM(E4)

DR 800 S

Suzuki DR

Displacement: 800 cc
Year: 1991
Model code DR800SUM(E4)
