CYLINDER HEAD FOR SUZUKI DR 800 1997

CYLINDER

Item numbers

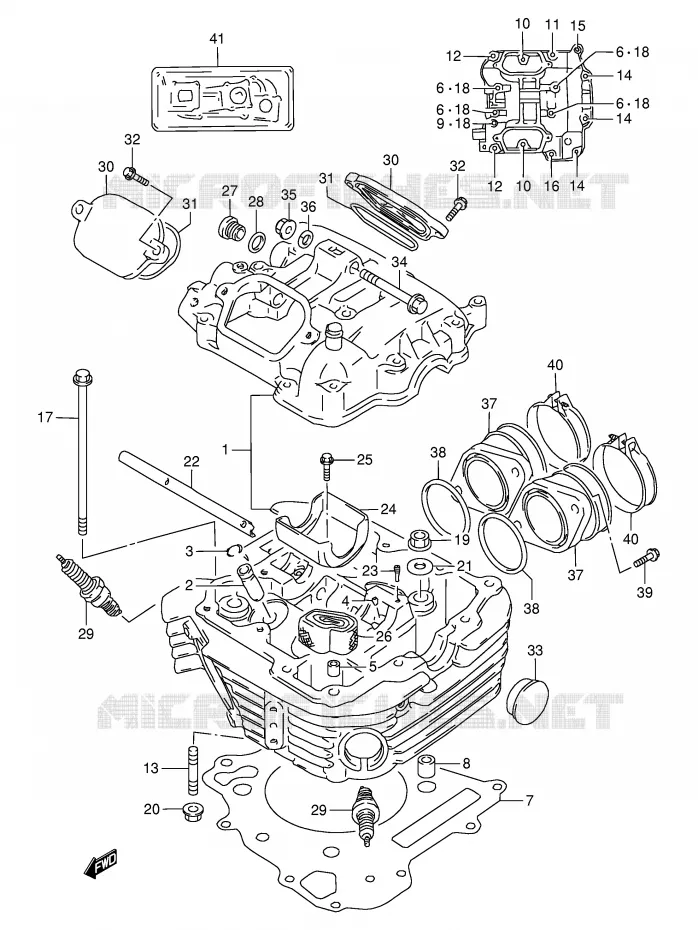

CYLINDER HEAD Suzuki MOTO 800 DR 1997 DR800SV(E4)
1
2
3
4
5
6
6
6
6
7
8
9
10
10
11
12
12
13
14
14
14
15
16
17
18
18
18
18
18
19
20
21
22
23
24
25
26
27
28
29
29
29
29
30
30
31
31
32
32
33
34
35
36
37
37
38
38
39
40
40
41
1
HEAD ASSY, CYLINDER

11100-31D00-000   1110031D00000

1110031D00000
Not available
2
GUIDE, VALVE

11115-44B70-000   1111544B70000

1111544B70000

Unit Price

3
RING,SNAP<br />RING, VALVE GUIDE
RING, SNAP
RING, VALVE GUIDE

09381-10003-000   0938110003000

0938110003000

Unit Price

4
JET, OIL GALLERY

11180-43410-000   1118043410000

1118043410000

Unit Price

5
PIN(8X11)<br />PIN
PIN(8X11)
PIN

09206-08001-000   0920608001000

0920608001000

Unit Price

6
BOLT (6X55)

09103-06102-000   0910306102000

0910306102000

Unit Price

7
DISCONTINUE
GASKET, CYLINDER HEAD

11141-44B01-000   1114144B01000

1114144B01000
Not available
8
PIN
PIN

04211-13189-000   0421113189000

0421113189000

Unit Price

9
01550-0616A
BOLT

01550-06163-000  

0155006163000
Not available
10
BOLT

01550-06253-000  

01550-0625A-000
 0155006253000

Unit Price

11
BOLT

01550-06303-000  

01550-0630A-000
 0155006303000

Unit Price

12
BOLT

01550-06353-000  

01550-0635B-000
 0155006353000

Unit Price

13
BOLT, STUD(8X31)
STUD BOLT (L:18)

09108-08206-000   0910808206000

0910808206000

Unit Price

14
BOLT CYL HEAD COVER
BOLT (6X125)

09103-06033-000   0910306033000

0910306033000

Unit Price

15
BOLT (6X115)

09103-06052-000   0910306052000

0910306052000

Unit Price

16
BOLT,ENGINE MOUNT<br />BOLT (6X105)
BOLT, ENGINE MOUNT
BOLT (6X105)

09103-06067-000   0910306067000

0910306067000

Unit Price

17
BOLT(8X160)

09103-08224-000  

09103-08110-000
 0910308224000

Unit Price

18
GASKET
GASKET

09168-06023-000   0916806023000

0916806023000
Not available
19
NUT

08316-10103-000  

08316-1010B-000
 0831610103000

Unit Price

20
NUT

08316-10083-000  

08316-1008B-000
 0831610083000

Unit Price

21
WASHER

09160-10060-000  

09160-10039-000
 0916010060000

Unit Price

22
DISCONTINUE
PIPE, OIL

11131-31D00-000   1113131D00000

1113131D00000
Not available
23
SCREW (6X19.5)

09134-06012-000   0913406012000

0913406012000
Not available
24
PLATE, OIL CHAMBER

11135-44B00-000   1113544B00000

1113544B00000
Not available
25
BOLT

01550-06103-000  

01550-0610B-000
 0155006103000

Unit Price

26
DISCONTINUE
SEPARATOR, OIL

11186-44B01-000   1118644B01000

1118644B01000
Not available
27
09248-14011<br />PLUG, HEAD COVER
09248-14011
PLUG, HEAD COVER

09248-14005-000  

0924814005000
Not available
28
GASKET,13.8X18.8X0.4<br />GASKET
GASKET, 13.8X18.8X0.4
GASKET

09168-14002-000   0916814002000

0916814002000

Unit Price

29
DPR9EA-9, NGK
SPARK PLUG (NGK, DPR9EA-9)

09482-00330-000   0948200330000

0948200330000

Unit Price

29
DPR8EA-9, NGK
SPARK PLUG (NGK, DPR8EA-9)

09482-00334-000   0948200334000

0948200334000

Unit Price

30
CAP, INSPECTION

11175-44B00-000   1117544B00000

1117544B00000

Unit Price

31
O RING, INSPECTION CAP
O RING

11177-44B01-000   1117744B01000

1117744B01000

Unit Price

32
BOLT

01550-06203-000  

01550-0620B-000
 0155006203000

Unit Price

33
PLUG, CAM SHAFT
PLUG, HEAD

09241-30004-000   0924130004000

0924130004000

Unit Price

34
BOLT
BOLT (8X53)

09103-08332-000   0910308332000

0910308332000

Unit Price

35
NUT

08319-31083-000  

08319-3108A-000
 0831931083000

Unit Price

36
WASHER, LOCK

08321-01083-000  

08321-0108B-000
 0832101083000

Unit Price

37
DISCONTINUE
PIPE ASSY, INTAKE

13101-44B01-000   1310144B01000

1310144B01000
Not available
38
O RING
O RING

09280-40010-000  

09280-40020-000
 0928040010000

Unit Price

39
SCREW

02112-16203-000  

02112-1620B-000
 0211216203000

Unit Price

40
CLAMP
CLAMP

09402-52208-000   0940252208000

0940252208000

Unit Price

41
GASKET SET

11401-31811-000   1140131811000

1140131811000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER HEAD of your Suzuki DR 800 S of DR. Let us know if you have any questions.
