REAR WHEEL

REAR CALIPER FOR SUZUKI DR 800 1997

REAR BRAKE MASTER CYLINDER

Item numbers

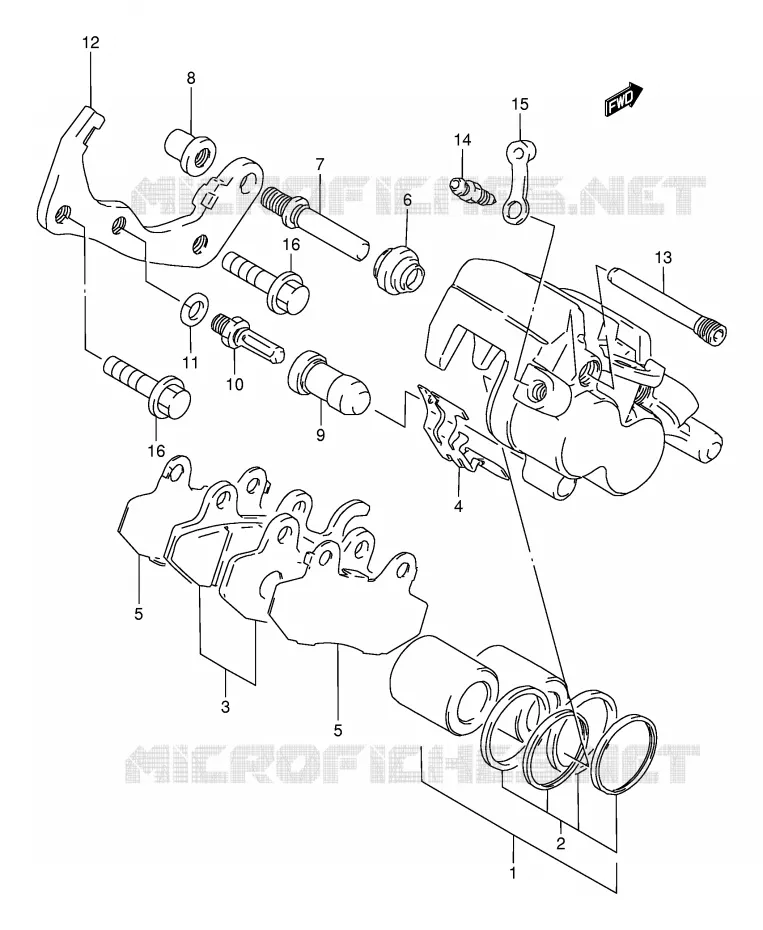

REAR CALIPER Suzuki MOTO 800 DR 1997 DR800SV(E4)

1

PISTON SET

69100-31810-000 6910031810000

Not available

2

SEAL SET, PISTON

59300-13820-000 5930013820000

$35,97

Unit Price

3

PAD SET

69100-31820-000 6910031820000

Not available

4

SPRING, PAD
SPRING

69115-31D10-000 6911531D10000

$23,97

Unit Price

5

SHIM

69132-31D00-000 6913231D00000

$17,97

Unit Price

6

BOOT

59303-14500-000 5930314500000

Not available

7

PIN, SLIDE
BOLT

59387-00B20-000 5938700B20000

$22,97

Unit Price

8

NUT

59388-00B20-000 5938800B20000

$17,97

Unit Price

9

BOOT

59386-13A00-000 5938613A00000

$10,97

Unit Price

10

BOLT, PIN
BOLT

59382-13A00-000 5938213A00000

$11,97

Unit Price

11

WASHER, WAVE
WASHER

59314-13A00-000 5931413A00000

$2,97

Unit Price

12

BRACKET

69151-31D00-000 6915131D00000

$102,97

Unit Price

13

PIN, HANGER
PIN

59345-14600-000 5934514600000

$18,97

Unit Price

14

BLEEDER

59121-01A00-000 5912101A00000

$12,97

Unit Price

15

CAP, BLEEDER
CAP

59122-01A00-000 5912201A00000

$6,97

Unit Price

16

BOLT

09103-10209-000 0910310209000

Not available

99x

CALIPER ASSY, REAR

69100-31D01-000 6910031D01000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR CALIPER of your Suzuki DR 800 S of DR. Let us know if you have any questions.
