WIRING HARNESS (MODEL N / P / R / S) REFER TO FIG.31A(E-14) FOR MODEL T/V

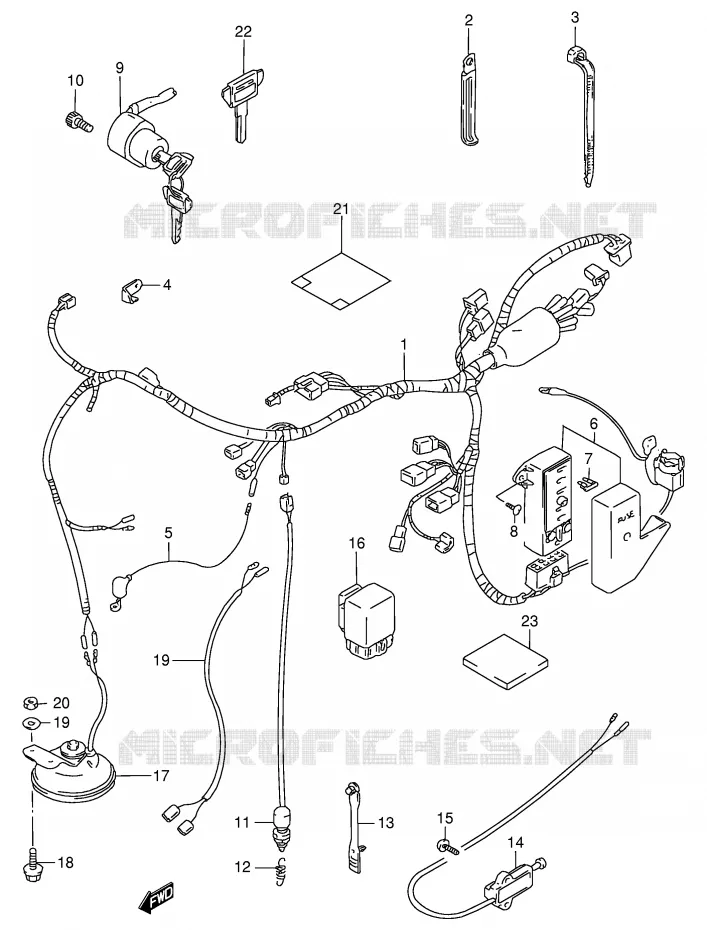

WIRING HARNESS (MODEL T / V) FOR SUZUKI INTRUDER 800 1992

SWITCHES (MODEL N / P / R) REFER TO FIG.32A(E-16) FOR MODEL S/T/V

Item numbers

DISCONTINUE
HARNESS, WIRING

36610-39AC0-000 3661039AC0000

Not available

CLAMP(L:65)

09404-06429-000

09404-06039-000

$3,97

Unit Price

CLAMP(L:65)

09404-06431-000

09404-06207-000

$3,97

Unit Price

BAND, WIRING HARNESS

09407-11401-000

09407-14403-000

$3,97

Unit Price

CLAMP, WIRING HARNESS

09407-18403-000

09407-18402-000

$3,97

Unit Price

DISCONTINUE
PLATE, COUPLER HOLDER

36687-38A00-000 3668738A00000

Not available

DISCONTINUE
WIRE, WATER TEMP GAUGE

36851-17E00-000 3685117E00000

Not available

BOX ASSY, FUSE
FUSE BOX ASSY

36740-39A00-000 3674039A00000

$142,97

Unit Price

FUSE (10A)

09481-10101-000 0948110101000

$2,97

Unit Price

FUSE, A/C 25A

09481-25101-000

09481-25103-000

$4,97

Unit Price

SCREW

02142-06163-000

02142-0616A-000

$2,97

Unit Price

SWITCH ASSY, IGNITION

37110-38A03-000

37110-38A04-000

$145,97

Unit Price

BOLT

07130-05163-000

07130-0516A-000

$4,97

Unit Price

SWITCH ASSY, STOP LAMP

37740-31D00-000 3774031D00000

$32,97

Unit Price

SPRING

09443-06046-000 0944306046000

$4,97

Unit Price

CLAMP, L:88
CLAMP, SIDE STAND

09407-05403-000 0940705403000

$2,97

Unit Price

SWITCH ASSY, SIDE STAND

37840-39A22-000

37840-39A23-000

$136,97

Unit Price

SCREW

02112-76203-000

02112-7620B-000

$4,97

Unit Price

RELAY ASSY
RELAY ASSY, SIDE STAND

38740-24X50-000 3874024X50000

$43,97

Unit Price

HORN ASSY

38500-39A00-000 3850039A00000

$140,97

Unit Price

BOLT

01550-06303-000

01550-0630A-000

$3,97

Unit Price

WASHER

08322-01063-000

08322-0106A-000

$3,97

Unit Price

08310-0006A
NUT

08310-00063-000

Not available

COVER, WIRING HARNESS

36618-15D20-000

36618-15D21-000

$17,97

Unit Price

KEY, BLANK(TYPE:C)
KEY, BRANK TYPE C

37146-03A00-000 3714603A00000

$14,97

Unit Price

KEY, BLANK(TYPE:D)
KEY, BRANK TYPE D

37146-03A10-000 3714603A10000

$15,97

Unit Price

KEY, BLANK(TYPE:E)
KEY, BRANK TYPE E

37146-03A20-000 3714603A20000

$14,97

Unit Price

KEY, BLANK(TYPE:F)
KEY, BRANK TYPE F

37146-03A30-000 3714603A30000

$15,97

Unit Price

COVER, HARNESS
PROTECTOR

36920-02200-000 3692002200000

$5,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
