Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

TJRN SIGNAL LAMP

TAIL LIGHT ASSY FOR SUZUKI INTRUDER 800 1994

WIRING HARNESS (MODELE N / P / R / S)

Item numbers

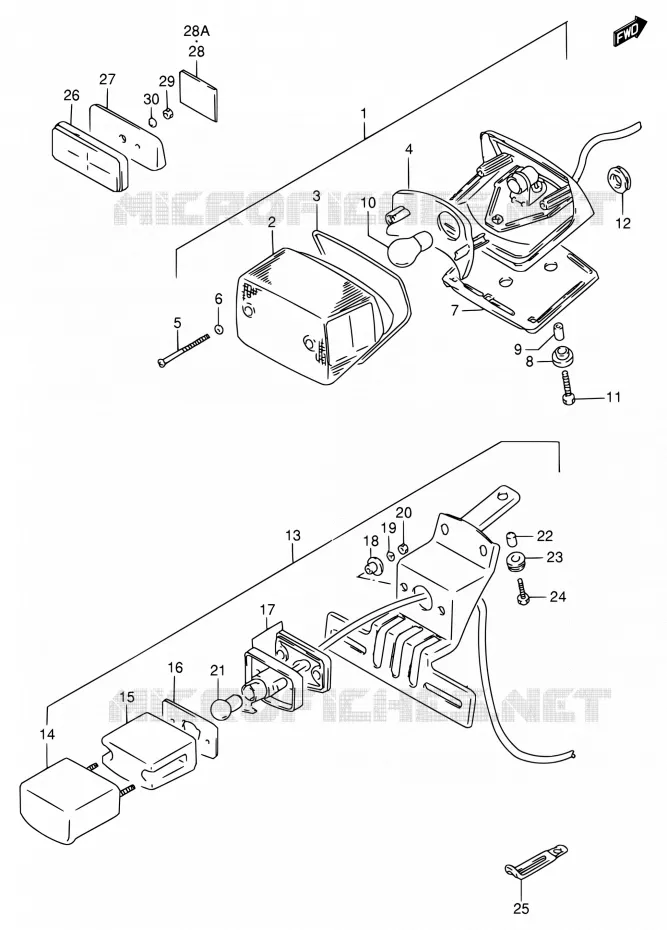

TAIL LIGHT ASSY Suzuki MOTO 800 INTRUDER 1994 VS800GL R (E03,E28,E33)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
26
27
28
28
29
30
1
35710-39A00-999
LAMP ASSY, REAR COMBINATION

35710-39A00-000   3571039A00000

3571039A00000
Not available
2
.LENS

35712-38A30-000   3571238A30000

3571238A30000

Unit Price

3
GASKET

35713-38A00-000  

35713-31D00-000
 3571338A00000

Unit Price

4
.REFLECTOR

35714-38A00-000   3571438A00000

3571438A00000

Unit Price

5
.SCREW

35723-44130-000   3572344130000

3572344130000

Unit Price

6
.GASKET
.GASKET

35627-43010-000   3562743010000

3562743010000

Unit Price

7
BULB(12V1.4W G30)

09471-12128-000  

09471-12083-000
 0947112128000

Unit Price

8
DISCONTINUE
.CUSHION

35765-38A00-000   3576538A00000

3576538A00000
Not available
9
.CUSHION

35764-26470-000   3576426470000

3576426470000

Unit Price

10
.SPACER

35766-37190-000   3576637190000

3576637190000

Unit Price

11
BOLT

09116-06087-000  

09116-06047-000
 0911606087000

Unit Price

12
GROMMET

09308-09013-000   0930809013000

0930809013000
Not available
13
DISCONTINUE
LAMP ASSY, LICENSE

35910-38A33-000   3591038A33000

3591038A33000
Not available
14
DISCONTINUE
.COVER, LICENSE LAMP

35917-38A20-000   3591738A20000

3591738A20000
Not available
15
.LENS

35912-38A30-000   3591238A30000

3591238A30000

Unit Price

16
GASKET,LICENSE LAMP<br />.GASKET
GASKET, LICENSE LAMP
.GASKET

35913-38A30-000   3591338A30000

3591338A30000

Unit Price

17
.HOUSING, LICENSE LAMP

35915-38A31-000   3591538A31000

3591538A31000
Not available
18
DISCONTINUE
.SPACER

35766-38A30-000   3576638A30000

3576638A30000
Not available
19
WASHER, LOCK

08321-01043-000  

08321-0104A-000
 0832101043000

Unit Price

20
.NUT
.NUT

08310-00047-000   0831000047000

0831000047000

Unit Price

21
BULB(12V16W)<br />.BULB (12V,8W)
BULB(12V16W)
.BULB (12V, 8W)

09471-12141-000   0947112141000

0947112141000

Unit Price

22
.SPACER

35766-38A00-000   3576638A00000

3576638A00000

Unit Price

23
.CUSHION

35765-38A30-000   3576538A30000

3576538A30000

Unit Price

24
BOLT

09116-06065-000  

09116-06010-000
 0911606065000

Unit Price

25
CLAMP(L:65)

09404-06206-000  

09404-06432-000
 0940406206000

Unit Price

25
CLAMP(L:65)
CLAMP(L:65)

09404-06429-000  

09404-06039-000
 0940406429000

Unit Price

26
REFLEX REFLECTOR ASSY, RR
REFLEX REFLECTOR

35970-38B00-000   3597038B00000

3597038B00000

Unit Price

27
DISCONTINUE

35977-38B00-000  

3597738B00000
Not available
28
COVER,HARNESS<br />COVER
COVER, HARNESS
COVER

36920-02200-000   3692002200000

3692002200000

Unit Price

29
08310-0005A

08310-00053-000  

0831000053000
Not available
30
WASHER

08322-01053-000  

08322-0105B-000
 0832201053000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 800 INTRUDER 1994
