TIMING

CARBURETOR (FRONT) FOR SUZUKI INTRUDER 800 1994

CARBURETOR (REAR)

Item numbers

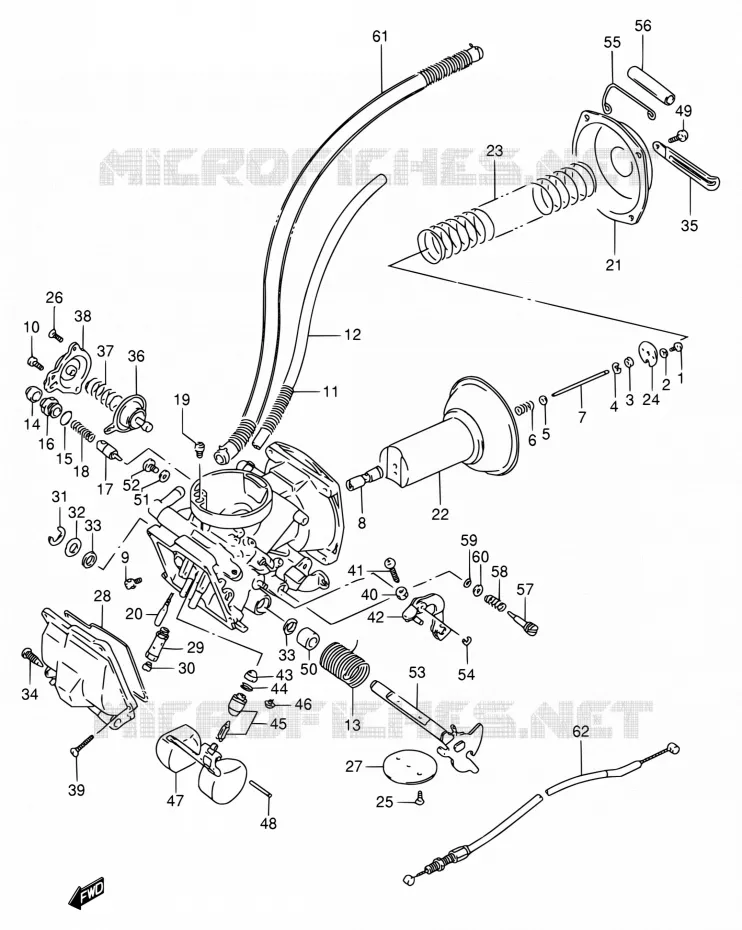

CARBURETOR (FRONT) Suzuki MOTO 800 INTRUDER 1994 VS800GL R (E03,E28,E33)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
1
SCREW

02112-03063-000  

02112-0306B-000
 0211203063000

Unit Price

2
WASHER, LOCK

08321-21033-000  

08321-2103B-000
 0832121033000

Unit Price

3
.RING
.RING

13387-47010-000   1338747010000

1338747010000

Unit Price

4
CLIP<br />.E RING
CLIP
.E RING

13394-10010-000   1339410010000

1339410010000

Unit Price

5
.WASHER
.WASHER

13382-44030-000   1338244030000

1338244030000

Unit Price

6
.SPRING
.SPRING

13388-44030-000   1338844030000

1338844030000

Unit Price

7
.NEEDLE, JET (5D48-3)

13383-45C50-000   1338345C50000

1338345C50000
Not available
8
DISCONTINUE
.JET, NEEDLE (P-2)

09494-00588-000   0949400588000

0949400588000
Not available
9
.SCREW

13605-38B00-000   1360538B00000

1360538B00000

Unit Price

10
SCREW

02122-04103-000  

02122-0410A-000
 0212204103000

Unit Price

11
.SPRING
.SPRING

13689-38A00-000   1368938A00000

1368938A00000

Unit Price

12
HOSE
HOSE

09352-50823-600  

09352-50005-600
 0935250823600

Unit Price

13
.SPRING

13573-38B00-000   1357338B00000

1357338B00000
Not available
14
CAP
CAP

13681-04010-000  

13681-04011-000
 1368104010000

Unit Price

15
O RING
O RING

13278-47090-000  

13278-47091-000
 1327847090000

Unit Price

16
.HOLDER, GUIDE

13418-38A00-000   1341838A00000

1341838A00000

Unit Price

17
PLUNGER,STARTER<br />.PLUNGER ASSY
PLUNGER, STARTER
.PLUNGER ASSY

13411-01400-000   1341101400000

1341101400000

Unit Price

18
.SPRING
.SPRING

13417-08210-000   1341708210000

1341708210000

Unit Price

19
JET, AIR(65)
.JET, PILOT AIR (65)

09492-65005-000   0949265005000

0949265005000

Unit Price

20
JET, PILOT
.JET, PILOT (40)

09492-40021-000   0949240021000

0949240021000

Unit Price

21
COVER, DIAPHRAGM

13502-45C10-000  

13502-38A00-000
 1350245C10000

Unit Price

22
DIAPHRAGM ASSY

13500-05A10-000  

13500-05A11-000
 1350005A10000

Unit Price

23
SPRING, DIAPHRAGM
.SPRING

13503-38B00-000   1350338B00000

1350338B00000

Unit Price

24
.PLATE

13389-37400-000   1338937400000

1338937400000

Unit Price

25
.SCREW
.SCREW

13604-44080-000   1360444080000

1360444080000

Unit Price

26
SCREW

02122-04103-000  

02122-0410A-000
 0212204103000

Unit Price

27
.VALVE, THROTTLE (110)

13551-38B00-000   1355138B00000

1355138B00000
Not available
28
O RING, FLOAT CHAMBER
.O RING

13251-38A00-000   1325138A00000

1325138A00000

Unit Price

29
HOLDER, MAIN JET
.HOLDER

13385-05A11-000   1338505A11000

1338505A11000

Unit Price

30
.JET, MAIN (127.5)

09491-25018-000   0949125018000

0949125018000

Unit Price

31
.E RING
.E RING

13617-44080-000   1361744080000

1361744080000

Unit Price

32
GASKET,THROTTLE SHAFT<br />.WASHER
GASKET, THROTTLE SHAFT
.WASHER

13557-47070-000   1355747070000

1355747070000

Unit Price

33
.SEAL

13556-05A10-000  

1355605A10000
Not available
34
PLUG,DRAIN
PLUG, DRAIN

13247-13A00-000  

13247-02340-000
 1324713A00000

Unit Price

35
CLAMP(L:65)

09404-06402-000  

09404-06039-000
 0940406402000

Unit Price

36
DIAPHRAGM ASSY

13480-05A10-000  

13480-05A11-000
 1348005A10000

Unit Price

37
.SPRING

13481-45C10-000   1348145C10000

1348145C10000

Unit Price

38
.COVER

13484-38A00-000   1348438A00000

1348438A00000

Unit Price

39
.SCREW
.SCREW

13601-04148-000   1360104148000

1360104148000

Unit Price

40
.NUT
.NUT

08310-00047-000   0831000047000

0831000047000

Unit Price

41
DISCONTINUE
.SCREW

02112-04303-000  

0211204303000
Not available
42
DISCONTINUE
.LEVER ASSY

13554-38A00-000   1355438A00000

1355438A00000
Not available
43
FILTER

13376-84110-000  

13376-19F00-000
 1337684110000

Unit Price

44
O RING, NEEDLE VALVE SEAT

13374-44080-000  

13374-35C00-000
 1337444080000

Unit Price

45
.VALVE ASSY, NEEDLE

13370-39A00-000   1337039A00000

1337039A00000

Unit Price

46
.SCREW
.SCREW

13602-05A10-000   1360205A10000

1360205A10000

Unit Price

47
.FLOAT

13250-38B00-000   1325038B00000

1325038B00000

Unit Price

48
.PIN, FLOAT

13254-20010-000   1325420010000

1325420010000

Unit Price

49
.SCREW
.SCREW

02112-05127-000   0211205127000

0211205127000

Unit Price

50
.RING

13574-45C00-000   1357445C00000

1357445C00000
Not available
51
GASKET, DRAIN PLUG
.WASHER

13523-46110-000   1352346110000

1352346110000

Unit Price

52
SCREW

02112-05063-000  

02112-0506B-000
 0211205063000

Unit Price

53
.SHAFT ASSY, THROTTLE

13550-38A00-000   1355038A00000

1355038A00000
Not available
54
E RING

13298-49000-000  

13415-38300-000
 1329849000000

Unit Price

55
.CLIP

13671-38A00-000   1367138A00000

1367138A00000

Unit Price

56
HOSE(6X10X600)

09352-60103-600  

09352-60104-600
 0935260103600

Unit Price

57
SCREW,PILOT<br />.SCREW, AIR (1 1/4)
SCREW, PILOT
.SCREW, AIR (1 1/4)

13279-47070-000   1327947070000

1327947070000

Unit Price

58
.SPRING
.SPRING

13268-47070-000   1326847070000

1326847070000

Unit Price

59
O RING,PILOT AIR SCREW
O RING, PILOT AIR SCREW

13295-29900-000  

13295-29901-000
 1329529900000

Unit Price

60
.WASHER
.WASHER

13291-29900-000   1329129900000

1329129900000

Unit Price

61
HOSE ASSY

13683-38A20-000  

13683-38A21-000
 1368338A20000

Unit Price

62
CABLE, IDLE SYNCRO

13641-38A00-000  

13641-38A01-000
 1364138A00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
