Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRAME (MODEL W) COLOR : J4M = 10R(WHITE),19A(RED)

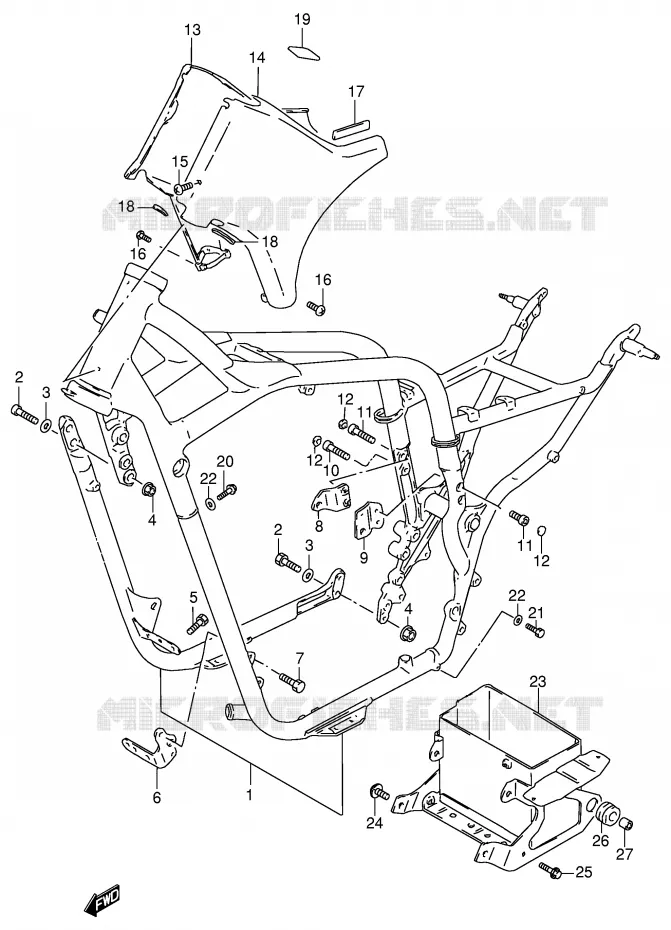

FRAME (MODEL X) FOR SUZUKI INTRUDER 800 2000

FRAME (MODEL Y)

Item numbers

DISCONTINUE
FRAME SET (BLACK)

41101-39813-33J 411013981333J

Not available

DISCONTINUE
FRAME SET (MAROON)

41101-39813-Y4M 4110139813Y4M

Not available

FRAME SET (BLUE)

41101-39813-Y7H 4110139813Y7H

Not available

FRAME SET (BLACK)

41101-39823-33J 411013982333J

Not available

FRAME SET (MAROON)

41101-39823-Y4M 4110139823Y4M

Not available

FRAME SET (BLUE)

41101-39823-Y7H 4110139823Y7H

Not available

BOLT(10X33)
BOLT, REAR

09106-10019-000 0910610019000

$6,97

Unit Price

WASHER

09164-10010-000 0916410010000

$8,97

Unit Price

NUT

08319-31103-000

08319-3110A-000

$3,97

Unit Price

BOLT

01550-08203-000

01550-08207-000

$5,97

Unit Price

DISCONTINUE
PLATE, NO.1 LH (BLACK)

41920-38A00-019 4192038A00019

Not available

BOLT

01570-08163-000

01570-0816A-000

$4,97

Unit Price

DISCONTINUE
PLATE, NO.3 RH (BLACK)

41950-38A11-019 4195038A11019

Not available

DISCONTINUE
PLATE, NO.3 LH (BLACK)

41960-38A10-019 4196038A10019

Not available

BOLT

07130-08303-000

07130-0830A-000

$6,97

Unit Price

BOLT, UPPER

09106-08070-000 0910608070000

Not available

CAP, HANDLE CLP BOLT
CAP

09250-06004-000 0925006004000

$2,97

Unit Price

DISCONTINUE
COVER, FRAME HEAD RH (BLACK)

47350-38A01-33J 4735038A0133J

Not available

COVER, FRAME HEAD RH (MAROON)

47350-38A01-Y4M 4735038A01Y4M

Not available

DISCONTINUE
COVER, FRAME HEAD RH (BLUE)

47350-38A01-Y7H 4735038A01Y7H

Not available

47360-38A01-YAY

47360-38A01-33J

Not available

COVER, FRAME HEAD LH (MAROON)

47360-38A01-Y4M 4736038A01Y4M

Not available

COVER, FRAME HEAD LH (BLUE)

47360-38A01-Y7H 4736038A01Y7H

Not available

SCREW

02142-06103-000

02142-0610B-000

$3,97

Unit Price

SCREW

02112-04253-000

02112-0425B-000

$3,97

Unit Price

PROTECTOR(80X80X2)
CUSHION, FRAME HEAD COVER

33652-07D00-000 3365207D00000

$11,97

Unit Price

MOLDING
MOLDING, FRAME HEAD COVER

68241-04X50-300 6824104X50300

$11,97

Unit Price

TAPE, FRAME HEAD COVER

47358-38A00-000 4735838A00000

$14,97

Unit Price

UNION BOLT

09360-06015-000

09360-06007-000

$4,97

Unit Price

BOLT

01550-06103-000

01550-0610B-000

$4,97

Unit Price

TACH GEAR WASHER
GASKET

09168-06004-000 0916806004000

$2,97

Unit Price

HOLDER, BATTERY

41540-38A12-000 4154038A12000

$165,97

Unit Price

BOLT

01550-10163-000

01550-1016A-000

$4,97

Unit Price

01550-0616A
BOLT

01550-06163-000

Not available

CUSHION, PIPE COVER
CUSHION

09320-12031-000 0932012031000

$5,97

Unit Price

SPACER

09301-08009-000 0930108009000

$9,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
