Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CARBURETOR (FRONT:E18)

CARBURETOR (REAR) FOR SUZUKI INTRUDER 800 2000

CARBURETOR (REAR:E18)

Item numbers

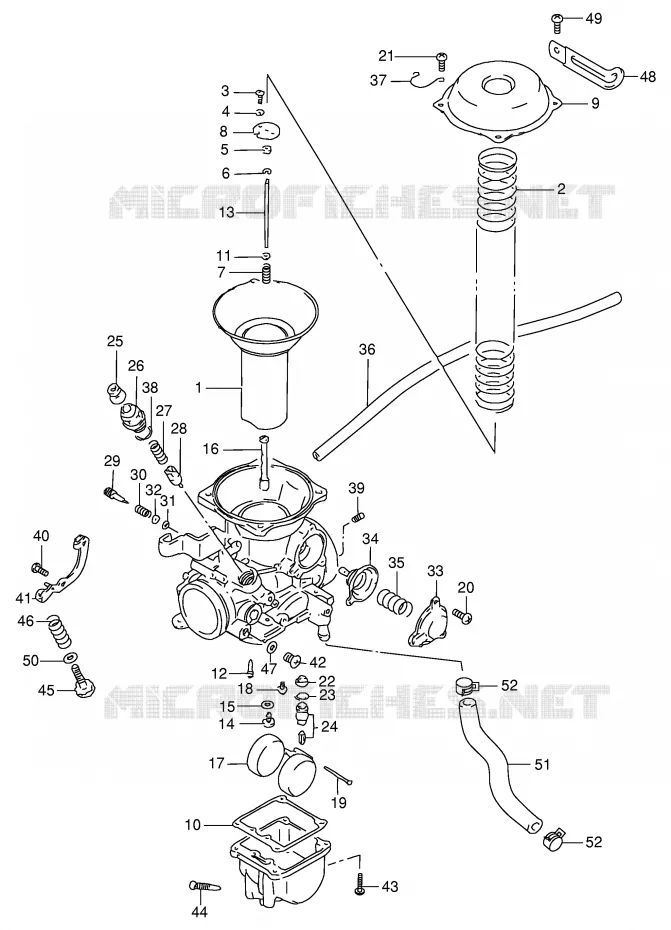

CARBURETOR (REAR) Suzuki MOTO 800 INTRUDER 2000 VS800GLY(E2)
1
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
26
27
28
29
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
52
1
DIAPHRAGM, CARBURETOR
DIAPHRAGM ASSY

13500-38A10-000   1350038A10000

1350038A10000

Unit Price

1
DIAPHRAGM ASSY

13500-45C10-000   1350045C10000

1350045C10000
Not available
2
SPRING, DIAPHRAGM
SPRING

13503-38B00-000   1350338B00000

1350338B00000

Unit Price

3
SCREW

02112-03063-000  

02112-0306B-000
 0211203063000

Unit Price

4
WASHER, LOCK

08321-21033-000  

08321-2103B-000
 0832121033000

Unit Price

5
RING
RING

13387-47010-000   1338747010000

1338747010000

Unit Price

6
CLIP<br />E RING
CLIP
E RING

13394-10010-000   1339410010000

1339410010000

Unit Price

7
SPRING
SPRING

13388-44030-000   1338844030000

1338844030000

Unit Price

8
PLATE

13389-37400-000   1338937400000

1338937400000

Unit Price

9
COVER

13502-38A10-000  

13502-45CE0-000
 1350238A10000

Unit Price

10
GASKET, FLOAT CHAMBER
GASKET

13251-38A10-000   1325138A10000

1325138A10000

Unit Price

11
WASHER
WASHER

13382-44030-000   1338244030000

1338244030000

Unit Price

12
JET, PILOT
JET, PILOT (42.5)

09492-42010-000   0949242010000

0949242010000

Unit Price

12
JET, PILOT
JET, PILOT (45)

09492-45016-000   0949245016000

0949245016000

Unit Price

13
DISCONTINUE
NEEDLE, JET (5F109-3)

13383-45C10-000   1338345C10000

1338345C10000
Not available
14
JET, MAIN (107.5)
JET, MAIN (107.5)

09491-21014-000   0949121014000

0949121014000

Unit Price

15
WASHER
WASHER

13382-03110-000   1338203110000

1338203110000

Unit Price

16
JET, NEEDLE (P-3)

09494-00750-000   0949400750000

0949400750000
Not available
17
FLOAT

13252-23010-000   1325223010000

1325223010000

Unit Price

18
SCREW
SCREW

13602-05A10-000   1360205A10000

1360205A10000

Unit Price

19
PIN,FLOAT<br />PIN
PIN, FLOAT
PIN

13254-92311-000   1325492311000

1325492311000

Unit Price

20
SCREW

02112-04107-000   0211204107000

0211204107000

Unit Price

21
SCREW,4X8<br />SCREW
SCREW, 4X8
SCREW

02112-04087-000   0211204087000

0211204087000

Unit Price

22
FILTER

13376-84110-000  

13376-19F00-000
 1337684110000

Unit Price

23
O RING, NEEDLE VALVE SEAT

13374-44080-000  

13374-35C00-000
 1337444080000

Unit Price

24
VALVE ASSY, NEEDLE

13370-39A00-000   1337039A00000

1337039A00000

Unit Price

24
VALVE ASSY, NEEDLE

13370-38E00-000   1337038E00000

1337038E00000
Not available
25
CAP
CAP

13681-04010-000  

13681-04011-000
 1368104010000

Unit Price

26
HOLDER, GUIDE
HOLDER, GUIDE

13418-43410-000   1341843410000

1341843410000

Unit Price

27
SPRING

13417-22010-000   1341722010000

1341722010000

Unit Price

28
PLUNGER,STARTER<br />PLUNGER ASSY
PLUNGER, STARTER
PLUNGER ASSY

13411-01400-000   1341101400000

1341101400000

Unit Price

29
SCREW,PILOT<br />SCREW, AIR (1 3/4)
SCREW, PILOT
SCREW, AIR (1 3/4)

13279-47070-000   1327947070000

1327947070000

Unit Price

30
SPRING
SPRING

13268-47070-000   1326847070000

1326847070000

Unit Price

31
O RING,PILOT AIR SCREW
O RING, PILOT AIR SCREW

13295-29900-000  

13295-29901-000
 1329529900000

Unit Price

32
WASHER
WASHER

13291-29900-000   1329129900000

1329129900000

Unit Price

33
COVER

13484-38A10-000   1348438A10000

1348438A10000

Unit Price

34
DIAPHRAGM ASSY

13480-05A10-000  

13480-05A11-000
 1348005A10000

Unit Price

35
SPRING

13481-45C10-000   1348145C10000

1348145C10000

Unit Price

36
HOSE
HOSE

09352-50823-600  

09352-50005-600
 0935250823600

Unit Price

37
CLIP

13692-02500-000   1369202500000

1369202500000

Unit Price

38
O RING
O RING

13278-47090-000  

13278-47091-000
 1327847090000

Unit Price

39
JET, PILOT(70)
JET, PILOT AIR (70)

09492-70004-000   0949270004000

0949270004000

Unit Price

40
SCREW

13602-05A30-000   1360205A30000

1360205A30000

Unit Price

41
LEVER ASSY

13554-45C20-000   1355445C20000

1355445C20000

Unit Price

42
SCREW,MUFFLER COVER<br />SCREW
SCREW, MUFFLER COVER
SCREW

09125-05122-000   0912505122000

0912505122000

Unit Price

43
SCREW
SCREW

13601-04148-000   1360104148000

1360104148000

Unit Price

44
PLUG,DRAIN
PLUG, DRAIN

13247-13A00-000  

13247-02340-000
 1324713A00000

Unit Price

45
ADJUSTER

13267-38A10-000  

13267-39E50-000
 1326738A10000

Unit Price

46
SPRING
SPRING

13271-93011-000   1327193011000

1327193011000

Unit Price

47
GASKET, DRAIN PLUG
WASHER

13523-46110-000   1352346110000

1352346110000

Unit Price

48
CLAMP(L:65)
CLAMP(L:65)

09404-06432-000  

09404-06039-000
 0940406432000

Unit Price

49
SCREW

02142-04083-000  

02142-0408B-000
 0214204083000

Unit Price

50
WASHER

13277-37100-000   1327737100000

1327737100000

Unit Price

51
HOSE

13683-38E00-000  

13683-38E01-000
 1368338E00000

Unit Price

52
CLAMP,WATER HOSE
CLAMP, WATER HOSE

09401-11407-000  

09401-11415-000
 0940111407000

Unit Price

99x
CARBURETOR ASSY, REAR

13220-38E90-000   1322038E90000

1322038E90000
Not available
99x
CARBURETOR ASSY, REAR

13220-38EA0-000   1322038EA0000

1322038EA0000
Not available
99x
CARBURETOR ASSY, REAR

13220-38EB0-000   1322038EB0000

1322038EB0000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 800 INTRUDER 2000
