ELECTRICAL (VL800CL4 E19)

ELECTRICAL (VL800CUEL4 E19) FOR SUZUKI INTRUDER 800 2014

SPEEDOMETER (VL800L4 E02)

Item numbers

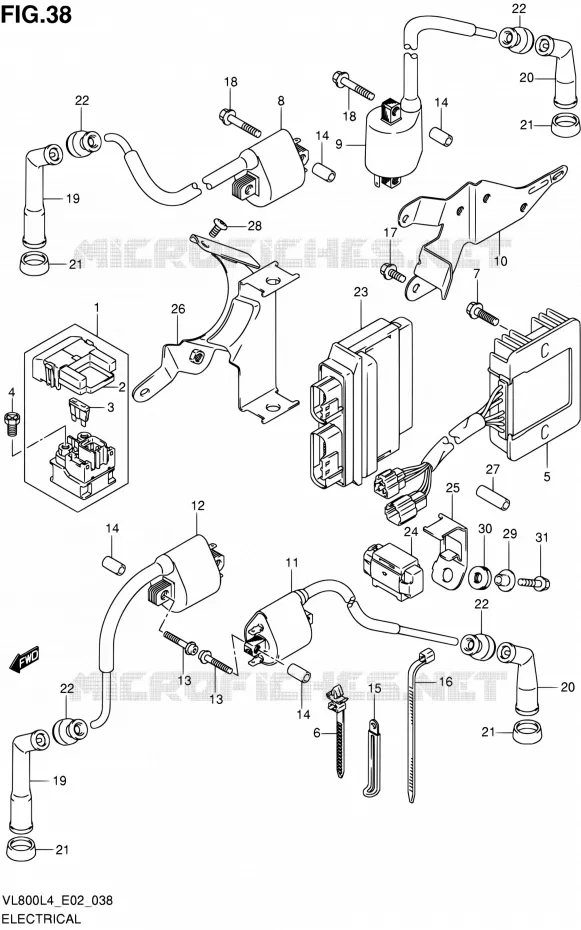

ELECTRICAL (VL800CUEL4 E19) Suzuki MOTO 800 INTRUDER 2014 VL80UE L4 (E19)
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
14
14
14
15
16
17
18
18
19
19
20
20
21
21
21
21
22
22
22
22
23
24
25
26
27
28
29
30
31
1
RELAY ASSY,STARTING MOTOR
RELAY ASSY, STARTING MOTOR

31800-21E20-000  

31800-21E30-000
 3180021E20000

Unit Price

2
.COVER
.COVER

31861-47E00-000   3186147E00000

3186147E00000

Unit Price

3
.FUSE (30A)
.FUSE (30A)

09481-30101-000   0948130101000

0948130101000

Unit Price

4
SCREW (6X8)
SCREW (6X8)

09128-06013-000   0912806013000

0912806013000

Unit Price

5
RECTIFIER ASSY

32800-47H00-000   3280047H00000

3280047H00000

Unit Price

6
CLAMP<br />CLAMP (L:90)
CLAMP
CLAMP (L:90)

09407-11402-000   0940711402000

0940711402000

Unit Price

7
SCREW

02162-0620B-000  

02162-0620C-000
 021620620B000

Unit Price

8
COIL ASSY, IGNITION RR

33410-39G00-000  

33410-39G01-000
 3341039G00000

Unit Price

9
COIL ASSY, IGNITION RR

33410-39G10-000  

33410-39G11-000
 3341039G10000

Unit Price

10
BRACKET, IGNITION COIL RR
BRACKET, IGNITION COIL REAR

33414-39G00-000   3341439G00000

3341439G00000

Unit Price

11
COIL ASSY, IGNITION FR

33420-39G00-000  

33420-39G01-000
 3342039G00000

Unit Price

12
COIL ASSY, IGNITION

33420-41F10-000  

33420-41F11-000
 3342041F10000

Unit Price

13
BOLT (5X35)

09106-05033-000   0910605033000

0910605033000

Unit Price

14
SPACER (6.4X10X18)

09180-06195-000   0918006195000

0918006195000

Unit Price

15
CLAMP(L:80)

09404-06433-000  

09404-06036-000
 0940406433000

Unit Price

16
CLAMP

09407-19401-000  

09407-22403-000
 0940719401000

Unit Price

17
BOLT

01547-0610A-000   015470610A000

015470610A000

Unit Price

18
BOLT

01547-0635A-000   015470635A000

015470635A000

Unit Price

19
CAP, SPARK PLUG
CAP ASSY, SPARK PLUG (CENTER)

33510-11410-000   3351011410000

3351011410000

Unit Price

20
CAP, SPARK PLUG
CAP ASSY, SPARK PLUG (SIDE)

33510-38B00-000   3351038B00000

3351038B00000

Unit Price

21
SEAL, SPARK PLUG
SEAL, SPARK PLUG

33541-47D00-000   3354147D00000

3354147D00000

Unit Price

22
SEAL, HIGH TENSION CORD
SEAL, HIGH TENSION CORD

33542-38B00-000   3354238B00000

3354238B00000

Unit Price

23
CONTROL UNIT, FI

32920-39GM0-000   3292039GM0000

3292039GM0000
Not available
24
SENSOR ASSY, FUEL CUT

33960-06G10-000   3396006G10000

3396006G10000

Unit Price

25
BRACKET, FUEL CUT SENSOR

33961-41F00-000   3396141F00000

3396141F00000

Unit Price

26
BRACKET, FI CONTROL UNIT
BRACKET, FI CONTROLLER UNIT

44880-43H00-000   4488043H00000

4488043H00000

Unit Price

27
HOSE
HOSE

09352-50823-600  

09352-50005-600
 0935250823600

Unit Price

28
SCREW (6X12)

09139-06108-000   0913906108000

0913906108000

Unit Price

29
SPACER, EXH PIPE COVE
SPACER (6.2X8.4X6.9)

09180-06325-000   0918006325000

0918006325000

Unit Price

30
CUSHION(8X18X5.8)

09320-06017-000  

09320-08516-000
 0932006017000

Unit Price

31
BOLT

01547-0616A-000   015470616A000

015470616A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
