TAIL LIGHT ASSY

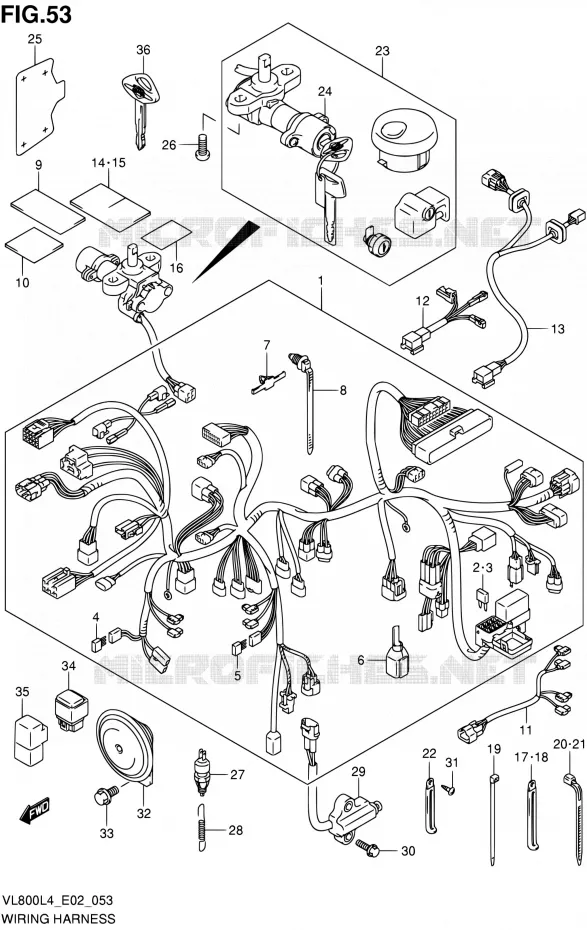

WIRING HARNESS FOR SUZUKI INTRUDER 800 2014

SWITCHES

Item numbers

HARNESS, WIRING

36610-43H50-000 3661043H50000

Not available

.FUSE (10A)

09481-10501-000

Not available

.FUSE (20A)

09481-20501-000 0948120501000

$3,97

Unit Price

.RECTIFIER ASSY

32800-16A00-000 3280016A00000

$27,97

Unit Price

DIODE

36611-38A00-000

36611-38A10-000

$19,97

Unit Price

.BOOT

36717-41F00-000 3671741F00000

$12,97

Unit Price

.CLAMP

09407-05410-000 0940705410000

$7,97

Unit Price

CLAMP
.CLAMP (L:154)

09407-17403-000 0940717403000

$8,97

Unit Price

TAPE, HARNESS(28X50X0.13)
TAPE WIRING (28X50X0.13)

36611-16G00-000 3661116G00000

$3,97

Unit Price

PROTECTOR, WIRING HARNESS
TAPE WIRING (30X50X3)

36611-41F00-000 3661141F00000

$8,97

Unit Price

WIRE, IGNITION COIL LEAD

36854-39G00-000

36854-39G01-000

$43,97

Unit Price

WIRE, RR COMB NO.2
WIRE, REARCOMBINATIONNO.2

36856-41F00-000 3685641F00000

$26,97

Unit Price

WIRE, RR COMB

36858-41F00-000

36858-41F01-000

$39,97

Unit Price

PROTECTOR, HARNESS(30X50X3)
TAPE, WIRING HARNESS

36920-33C00-000 3692033C00000

$2,97

Unit Price

PROTECTOR, HARNESS(30X50X3)
PROTECTOR, WIRING HARNESS

36920-33C00-000 3692033C00000

$2,97

Unit Price

PROTECTOR, COWL UNDER
PROTECTOR, WIRING HARNESS

94474-17H00-000 9447417H00000

$6,97

Unit Price

CLAMP(L:80)

09404-06433-000

09404-06036-000

$3,97

Unit Price

CLAMP
CLAMP (L:135)

09404-06435-000 0940406435000

$5,97

Unit Price

CLAMP
CLAMP (L:145)

09407-14407-000 0940714407000

$5,97

Unit Price

CLAMP, WIRING HARNESS
CLAMP (L:165)

09407-18402-000 0940718402000

$3,97

Unit Price

CLAMP

09407-19401-000

09407-22403-000

$3,97

Unit Price

CLAMP(L:65)

09404-06429-000

09404-06039-000

$3,97

Unit Price

LOCK SET

37102-41860-000 3710241860000

Not available

.LOCK ASSY, STEERING

37100-41F80-000 3710041F80000

Not available

PROTECTOR, IGNITION SWITCH

37187-41F10-000 3718741F10000

$20,97

Unit Price

BOLT
BOLT (8X20)

09139-08016-000 0913908016000

$5,97

Unit Price

SWITCH ASSY, STOP LAMP

37740-24A00-000 3774024A00000

$19,97

Unit Price

SPRING

09443-06073-000 0944306073000

$6,97

Unit Price

37840-41F02

37840-41F00-000

Not available

BOLT
BOLT (6X20)

01550-0620B-000 015500620B000

$4,97

Unit Price

SCREW

03541-0512A-000 035410512A000

$2,97

Unit Price

HORN ASSY

38500-41F30-000 3850041F30000

$78,97

Unit Price

BOLT

01550-0816A-000 015500816A000

$3,97

Unit Price

RELAY ASSY
RELAY ASSY, HEAD LAMP

38740-24A00-000 3874024A00000

$60,97

Unit Price

RELAY ASSY
RELAY ASSY, FUEL PUMP

38740-24X50-000 3874024X50000

$43,97

Unit Price
