OIL PUMP / FUEL PUMP

WATER PUMP FOR SUZUKI MARAUDER 800 2002

RADIATOR

Item numbers

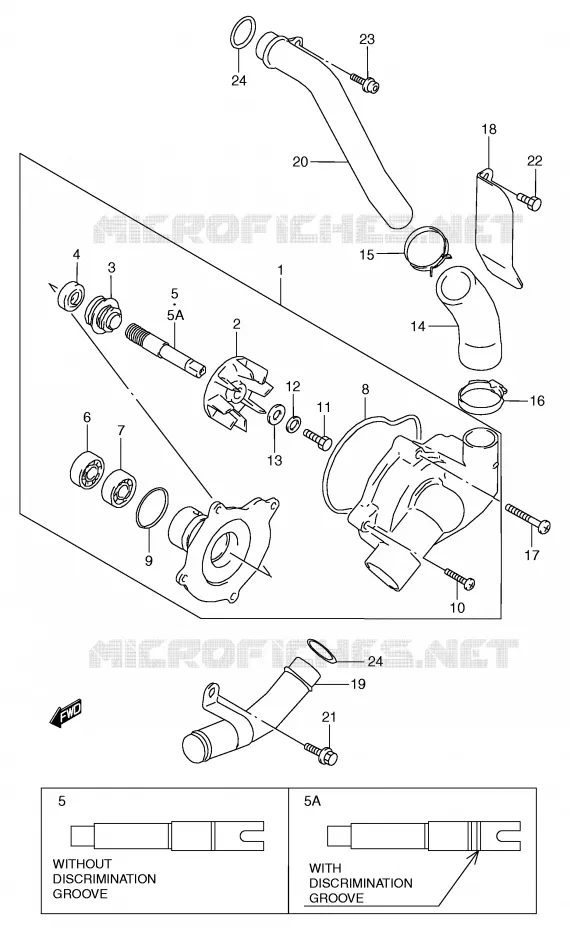

WATER PUMP Suzuki MOTO 800 MARAUDER 2002 VZ800K2(E2)
1
2
3
3
4
5
5
5A
5A
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
1
PUMP ASSY, WATER

17400-48E00-000  

17400-48E01-000
 1740048E00000

Unit Price

2
IMPELLER
IMPELLER

17491-17E01-000   1749117E01000

1749117E01000

Unit Price

3
SEAL,MECHANICAL
SEAL, MECHANICAL

17470-02F00-000  

17470-02F11-000
 1747002F00000

Unit Price

4
OIL SEAL, WATER PUMP<br />OIL SEAL (10X21X5)
OIL SEAL, WATER PUMP
OIL SEAL (10X21X5)

09283-10004-000   0928310004000

0928310004000

Unit Price

5A
SHAFT, WATER PUMP
SHAFT

17511-48E01-000   1751148E01000

1751148E01000

Unit Price

5
SHAFT

17511-48E00-000   1751148E00000

1751148E00000
Not available
6
BEARING (10X26X8)
BEARING (10X26X8)

09262-10014-000   0926210014000

0926210014000

Unit Price

7
BALL BEARING<br />BEARING (12X28X8)
BALL BEARING
BEARING (12X28X8)

09262-12001-000   0926212001000

0926212001000

Unit Price

8
O RING
O RING

17418-33400-000  

17418-33401-000
 1741833400000

Unit Price

9
O RING,WATER PUMP HOLDER<br />O RING
O RING, WATER PUMP HOLDER
O RING

17435-33400-000   1743533400000

1743533400000

Unit Price

10
SCREW

02112-06163-000  

02112-0616A-000
 0211206163000

Unit Price

11
BOLT,WATER PUMP<br />BOLT (6X13)
BOLT, WATER PUMP
BOLT (6X13)

09100-06099-000   0910006099000

0910006099000

Unit Price

12
ENG OIL CASE WA **S1<br />LOCK WASHER
ENG OIL CASE WA **S1
LOCK WASHER

09164-06006-000   0916406006000

0916406006000

Unit Price

13
WASHER<br />GASKET
WASHER
GASKET

09168-06025-000   0916806025000

0916806025000

Unit Price

14
HOSE, WATER PUMP OUTLET

17859-48E00-000   1785948E00000

1785948E00000

Unit Price

15
CLIP

09401-26404-000  

09401-26407-000
 0940126404000

Unit Price

16
CLAMP
CLAMP

09402-32511-000   0940232511000

0940232511000

Unit Price

17
BOLT

01547-06353-000  

01547-0635B-000
 0154706353000

Unit Price

18
DISCONTINUE
PLATE

17871-48E00-000   1787148E00000

1787148E00000
Not available
19
DISCONTINUE
PIPE, WATER PUMP INLET

17880-48E00-000   1788048E00000

1788048E00000
Not available
20
PIPE, WATER PUMP OUTLET

17890-48E00-000   1789048E00000

1789048E00000

Unit Price

21
BOLT

01550-06123-000  

01550-0612B-000
 0155006123000

Unit Price

22
BOLT

01550-06103-000  

01550-0610B-000
 0155006103000

Unit Price

23
SCREW

07120-06127-000   0712006127000

0712006127000

Unit Price

24
O RING (D:2.7, ID:21.4)

09280-21015-000   0928021015000

0928021015000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
