HEADLIGHT (MODEL K5 E2,E19) REFER TO FIG.30 (F-14) FOR MODEL K1/K2/K3/K4 E24

HEADLIGHT (MODEL K1 / K2 / K3 / K4 E24) FOR SUZUKI VOLUSIA 800 2003

HEADLIGHT (MODEL K5 E24)

Item numbers

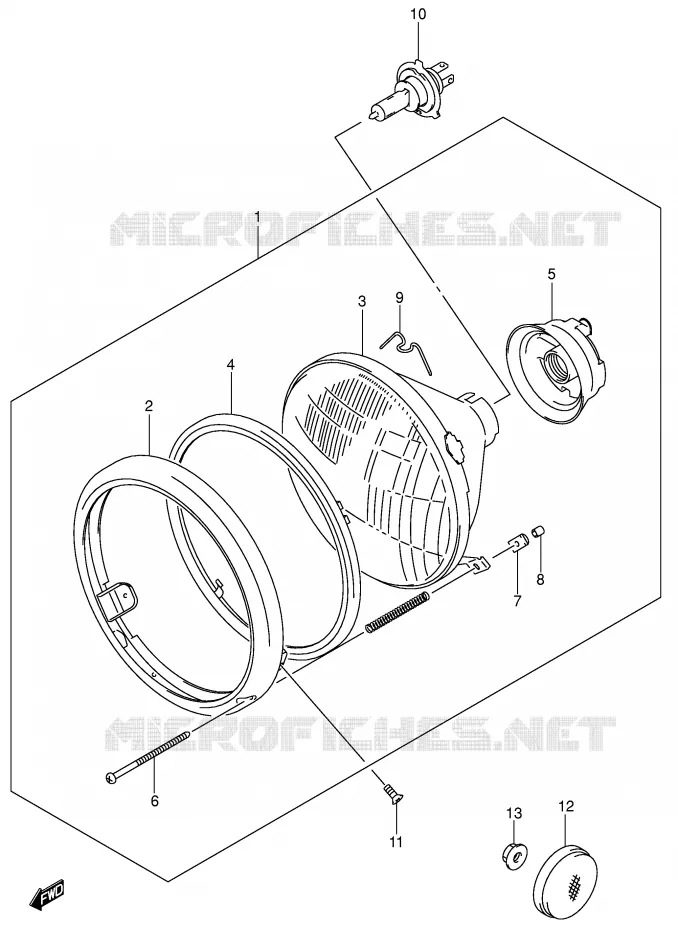

HEADLIGHT (MODEL K1/K2/K3/K4 E24) Suzuki MOTO 800 VOLUSIA 2003 VL800K3(E2)
1
2
3
4
5
6
7
8
9
10
11
12
13
1
DISCONTINUE
HEADLAMP ASSY

35100-10F30-999   3510010F30999

3510010F30999
Not available
2
RIM
RIM ASSY

35111-10F20-000   3511110F20000

3511110F20000

Unit Price

3
LAMP UNIT

35121-10F30-000   3512110F30000

3512110F30000

Unit Price

4
DISCONTINUE
RETAINING RING ASSY

35127-10F00-000   3512710F00000

3512710F00000
Not available
5
COVER, SOCKET
COVER, SOCKET

35173-20A01-000   3517320A01000

3517320A01000

Unit Price

6
SCREW<br />SCREW, ADJUSTER
SCREW
SCREW, ADJUSTER

35151-45900-000   3515145900000

3515145900000

Unit Price

7
NUT<br />NUT, ADJUSTER
NUT
NUT, ADJUSTER

35152-15611-000   3515215611000

3515215611000

Unit Price

8
CAP, SCREW
CAP, SCREW

35158-43400-000   3515843400000

3515843400000

Unit Price

9
SPRING

35128-10F00-000   3512810F00000

3512810F00000

Unit Price

10
BULB(12V, 5W)
BULB (12V, 60/55W, H4)

09471-12060-000  

0947112060000
Not available
11
SCREW<br />SCREW (5X12)
SCREW
SCREW (5X12)

09126-05003-000   0912605003000

0912605003000

Unit Price

12
REFLECTOR,REFLEX FR<br />REFLEX-REFLECTOR ASSY, FR SIDE
REFLECTOR, REFLEX FR
REFLEX-REFLECTOR ASSY, FR SIDE

35950-14A00-000   3595014A00000

3595014A00000

Unit Price

13
NUT

08316-10053-000  

08316-1005B-000
 0831610053000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
