Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

GEAR SHIFTING ASSY (MODEL K1 / K2 / K3 / K4) REFER TO FIG.22A(E-10) FOR MODEL K5

GEAR SHIFTING ASSY (MODEL K5) FOR SUZUKI VOLUSIA 800 2003

DRIVESHAFT

Item numbers

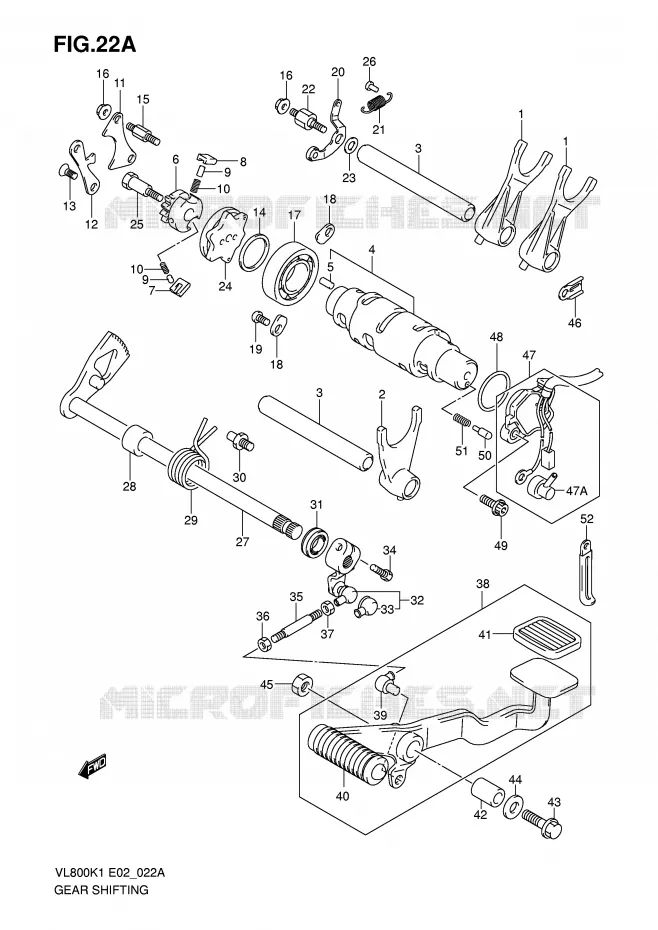

GEAR SHIFTING ASSY (MODEL K5) Suzuki MOTO 800 VOLUSIA 2003 VL800K3(E2)
1
1
2
3
3
4
5
6
7
8
9
9
10
10
11
12
13
14
15
16
16
17
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47A
47
48
49
50
51
52
1
FORK, GEAR SHIFT NO.1
FORK, GEAR SHIFTING NO.1

25211-38A02-000   2521138A02000

2521138A02000

Unit Price

2
FORK, GEAR SHIFT NO.2
FORK, GEAR SHIFTING NO.2

25221-38A01-000   2522138A01000

2522138A01000

Unit Price

3
SHAFT, GEAR SHIFT FORK(L:115)
SHAFT, GEAR SHIFTING FORK

25411-38A00-000   2541138A00000

2541138A00000

Unit Price

4
CAM, GEAR SHIFT
CAM, GEAR SHIFTING

25310-41F00-000   2531041F00000

2531041F00000

Unit Price

5
PIN
PIN

04221-04089-000   0422104089000

0422104089000

Unit Price

6
GEAR,GEAR SHIFT CAM DRIVEN<br />GEAR, CAM DRIVEN
GEAR, GEAR SHIFT CAM DRIVEN
GEAR, CAM DRIVEN

25322-31310-000   2532231310000

2532231310000

Unit Price

7
PAWL,GEAR SHIFT NO.1<br />PAWL, NO.1
PAWL, GEAR SHIFT NO.1
PAWL, NO.1

25323-34201-000   2532334201000

2532334201000

Unit Price

8
PAWL,GEAR SHIFT NO.2<br />PAWL, NO.2
PAWL, GEAR SHIFT NO.2
PAWL, NO.2

25324-34201-000   2532434201000

2532434201000

Unit Price

9
SHIFTING PAUL ROLLER<br />PIN
SHIFTING PAUL ROLLER
PIN

09261-05003-000   0926105003000

0926105003000

Unit Price

10
K S PAWL SPRING<br />SPRING
K S PAWL SPRING
SPRING

09440-04003-000   0944004003000

0944004003000

Unit Price

11
LIFTER, GEAR SHIFT POLE
LIFTER, PAWL

25331-38A00-000   2533138A00000

2533138A00000

Unit Price

12
GUIDE, GEAR SHIFT CAM
GUIDE, CAM

25341-38A00-000   2534138A00000

2534138A00000

Unit Price

13
SCREW<br />SCREW (6X12)
SCREW
SCREW (6X12)

09126-06011-000   0912606011000

0912606011000

Unit Price

14
WASHER (25X32X3)
WASHER (25X32X3)

09160-25059-000   0916025059000

0916025059000

Unit Price

15
BOSS, SHIFT POLE LIFTER
BOSS, SHIFT PAWL LIFTER

25332-38A10-000   2533238A10000

2533238A10000

Unit Price

16
NUT 6MM

08316-10063-000  

08319-31067-000
 0831610063000

Unit Price

17
BEARING, ROLLER KOYO<br />BEARING (25X47X8)
BEARING, ROLLER KOYO
BEARING (25X47X8)

09262-25006-000   0926225006000

0926225006000

Unit Price

18
RETAINER<br />RETAINER, BEARING
RETAINER
RETAINER, BEARING

24741-21A00-000   2474121A00000

2474121A00000

Unit Price

19
BOLT,6X12
BOLT, 6X12

09125-06086-000  

09125-06110-000
 0912506086000

Unit Price

20
STOPPER, GEAR SHIFT CAM
STOPPER, CAM

25350-38A00-000   2535038A00000

2535038A00000

Unit Price

21
SPRING

09443-09027-000   0944309027000

0944309027000

Unit Price

22
SUPPORT, CAM STOPPER ARM
SUPPORT, CAM STOPPER

25355-38A10-000   2535538A10000

2535538A10000

Unit Price

23
THRUST WASHER<br />WASHER
THRUST WASHER
WASHER

08211-06141-000   0821106141000

0821106141000

Unit Price

24
PLATE, GEAR SHIFT CAM

25380-38A02-000  

25380-38B00-000
 2538038A02000

Unit Price

25
PIN, SHIFT CAM DRIVEN GEAR
PIN, SHIFT CAM

25312-38A00-000   2531238A00000

2531238A00000

Unit Price

26
RIVET<br />HOOK
RIVET
HOOK

09223-04001-000   0922304001000

0922304001000

Unit Price

27
SHAFT, GEAR SHIFT
SHAFT, GEAR SHIFTING

25510-38A00-000   2551038A00000

2551038A00000

Unit Price

28
SPACER (12X20X15.3)
SPACER (12X20X15.3)

09180-12068-000   0918012068000

0918012068000

Unit Price

29
SHAFT RETURN SPRING<br />SPRING
SHAFT RETURN SPRING
SPRING

09444-26013-000   0944426013000

0944426013000

Unit Price

30
STOPPER,GEAR SHIFT ARM<br />STOPPER, ARM
STOPPER, GEAR SHIFT ARM
STOPPER, ARM

25671-01011-000   2567101011000

2567101011000

Unit Price

31
09285-12006<br />OIL SEAL (12X22X9)
09285-12006
OIL SEAL (12X22X9)

09285-12002-000  

0928512002000
Not available
32
ARM, GEAR SHIFT LINK

25520-38B00-000  

25520-38B01-000
 2552038B00000

Unit Price

33
COVER,DUST
COVER, DUST

25526-47000-000  

25526-47001-000
 2552647000000

Unit Price

34
BOLT

01500-06203-000  

01500-0620A-000
 0150006203000

Unit Price

35
ROD, GEAR SHIFT LINK

25525-47020-000   2552547020000

2552547020000

Unit Price

36
GR SHFT LINK ROD NUT<br />NUT, GEAR SHIFT
GR SHFT LINK ROD NUT
NUT, GEAR SHIFT

09140-06011-000   0914006011000

0914006011000

Unit Price

37
NUT
NUT

08310-00067-000   0831000067000

0831000067000

Unit Price

38
LEVER ASSY, GEAR SHIFT

25600-41F10-000  

25600-41F11-000
 2560041F10000

Unit Price

39
COVER,DUST
COVER, DUST

25526-47000-000  

25526-47001-000
 2552647000000

Unit Price

40
RUBBER
RUBBER, GEAR, FR

25652-10F00-000   2565210F00000

2565210F00000

Unit Price

41
RUBBER
RUBBER, GEAR, RR

43151-01400-000   4315101400000

4315101400000

Unit Price

42
SPSCER, GEAR SHIFT LEVER
SPACER, GEAR SHIFT

25617-10F00-000   2561710F00000

2561710F00000

Unit Price

43
BOLT
BOLT, GEAR SHIFT

09103-10300-000   0910310300000

0910310300000

Unit Price

44
WASHER

09160-10127-000  

09160-10093-000
 0916010127000

Unit Price

45
NUT

08310-00103-000  

08310-0010B-000
 0831000103000

Unit Price

46
CLAMP,GENERATOR LEAD WIRE<br />CLAMP, OIL PRESS LEAD
CLAMP, GENERATOR LEAD WIRE
CLAMP, OIL PRESS LEAD

31497-45000-000   3149745000000

3149745000000

Unit Price

47
BASE ASSY, GEAR SHIFT TERMINAL

37730-41F01-000  

37730-41F02-000
 3773041F01000

Unit Price

47A
CAP, OIL PRESSURE SWITCH
CAP, OIL PRESSURE

36618-43410-000   3661843410000

3661843410000

Unit Price

48
O RING<br />O RING (D:2.4,ID:25.7)
O RING
O RING (D:2.4, ID:25.7)

09280-26007-000   0928026007000

0928026007000

Unit Price

49
BOLT

07120-05163-000  

07120-0516A-000
 0712005163000

Unit Price

50
K S PAWL ROLLER<br />CONTACT, SWITCH
K S PAWL ROLLER
CONTACT, SWITCH

09209-05011-000   0920905011000

0920905011000

Unit Price

51
K S PAWL SPRING<br />SPRING
K S PAWL SPRING
SPRING

09440-04010-000   0944004010000

0944004010000

Unit Price

52
CLAMP(L:65)
CLAMP(L:65)

09404-06429-000  

09404-06039-000
 0940406429000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 800 VOLUSIA 2003

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS
FRAME for Suzuki VOLUSIA 800 2003

FRAME
for Suzuki VOLUSIA 800 2003

FRAME BRACE for Suzuki VOLUSIA 800 2003

FRAME BRACE
for Suzuki VOLUSIA 800 2003

FOOTREST (MODEL K1/K2/K3/K4) for Suzuki VOLUSIA 800 2003

FOOTREST (MODEL K1 / K2 / K3 / K4)
for Suzuki VOLUSIA 800 2003

FOOTREST (MODEL K5) for Suzuki VOLUSIA 800 2003

FOOTREST (MODEL K5)
for Suzuki VOLUSIA 800 2003

FUEL TANK (MODEL K1) for Suzuki VOLUSIA 800 2003

FUEL TANK (MODEL K1)
for Suzuki VOLUSIA 800 2003

FUEL TANK (MODEL K2) for Suzuki VOLUSIA 800 2003

FUEL TANK (MODEL K2)
for Suzuki VOLUSIA 800 2003

FUEL TANK (MODEL K3) for Suzuki VOLUSIA 800 2003

FUEL TANK (MODEL K3)
for Suzuki VOLUSIA 800 2003

FUEL TANK (MODEL K4) for Suzuki VOLUSIA 800 2003

FUEL TANK (MODEL K4)
for Suzuki VOLUSIA 800 2003

FUEL TANK (MODEL K5) for Suzuki VOLUSIA 800 2003

FUEL TANK (MODEL K5)
for Suzuki VOLUSIA 800 2003

FAIRING (MODEL K1) for Suzuki VOLUSIA 800 2003

FAIRING (MODEL K1)
for Suzuki VOLUSIA 800 2003

FAIRING (MODEL K2) for Suzuki VOLUSIA 800 2003

FAIRING (MODEL K2)
for Suzuki VOLUSIA 800 2003

FAIRING (MODEL K3) for Suzuki VOLUSIA 800 2003

FAIRING (MODEL K3)
for Suzuki VOLUSIA 800 2003

FAIRING (MODEL K4) for Suzuki VOLUSIA 800 2003

FAIRING (MODEL K4)
for Suzuki VOLUSIA 800 2003

FAIRING (MODEL K5) for Suzuki VOLUSIA 800 2003

FAIRING (MODEL K5)
for Suzuki VOLUSIA 800 2003

HEADLAMP HOUSING (MODEL K1/K2/K3/K4) for Suzuki VOLUSIA 800 2003

HEADLAMP HOUSING (MODEL K1 / K2 / K3 / K4)
for Suzuki VOLUSIA 800 2003

HEADLAMP HOUSING (MODEL K5) for Suzuki VOLUSIA 800 2003

HEADLAMP HOUSING (MODEL K5)
for Suzuki VOLUSIA 800 2003

FRONT FENDER (MODEL K1) for Suzuki VOLUSIA 800 2003

FRONT FENDER (MODEL K1)
for Suzuki VOLUSIA 800 2003

FRONT FENDER (MODEL K2) for Suzuki VOLUSIA 800 2003

FRONT FENDER (MODEL K2)
for Suzuki VOLUSIA 800 2003

FRONT FENDER (MODEL K3) for Suzuki VOLUSIA 800 2003

FRONT FENDER (MODEL K3)
for Suzuki VOLUSIA 800 2003

FRONT FENDER (VL800K4/K5) for Suzuki VOLUSIA 800 2003

FRONT FENDER (VL800K4 / K5)
for Suzuki VOLUSIA 800 2003

FRONT FENDER (VL800ZK4/ZK5) for Suzuki VOLUSIA 800 2003

FRONT FENDER (VL800ZK4 / ZK5)
for Suzuki VOLUSIA 800 2003

REAR FENDER (MODEL K1) for Suzuki VOLUSIA 800 2003

REAR FENDER (MODEL K1)
for Suzuki VOLUSIA 800 2003

REAR FENDER (MODEL K2) for Suzuki VOLUSIA 800 2003

REAR FENDER (MODEL K2)
for Suzuki VOLUSIA 800 2003

REAR FENDER (MODEL K3) for Suzuki VOLUSIA 800 2003

REAR FENDER (MODEL K3)
for Suzuki VOLUSIA 800 2003

REAR FENDER (VL800K4) for Suzuki VOLUSIA 800 2003

REAR FENDER (VL800K4)
for Suzuki VOLUSIA 800 2003

REAR FENDER (VL800ZK4/ZK5) for Suzuki VOLUSIA 800 2003

REAR FENDER (VL800ZK4 / ZK5)
for Suzuki VOLUSIA 800 2003

REAR FENDER (MODEL K5) for Suzuki VOLUSIA 800 2003

REAR FENDER (MODEL K5)
for Suzuki VOLUSIA 800 2003

LUGGAGE BOX for Suzuki VOLUSIA 800 2003

LUGGAGE BOX
for Suzuki VOLUSIA 800 2003

LABEL (MODEL K1/K2) for Suzuki VOLUSIA 800 2003

LABEL (MODEL K1 / K2)
for Suzuki VOLUSIA 800 2003

LABEL (MODEL K3/K4/K5) for Suzuki VOLUSIA 800 2003

LABEL (MODEL K3 / K4 / K5)
for Suzuki VOLUSIA 800 2003

SEAT (VL800K1/K2/K3/K4/K5) for Suzuki VOLUSIA 800 2003

SEAT (VL800K1 / K2 / K3 / K4 / K5)
for Suzuki VOLUSIA 800 2003

SEAT (VL800ZK3/ZK4/ZK5) for Suzuki VOLUSIA 800 2003

SEAT (VL800ZK3 / ZK4 / ZK5)
for Suzuki VOLUSIA 800 2003

GASKET SET for Suzuki VOLUSIA 800 2003

GASKET SET
for Suzuki VOLUSIA 800 2003

FRONT CYLINDER HEAD for Suzuki VOLUSIA 800 2003

FRONT CYLINDER HEAD
for Suzuki VOLUSIA 800 2003

REAR CYLINDER HEAD for Suzuki VOLUSIA 800 2003

REAR CYLINDER HEAD
for Suzuki VOLUSIA 800 2003

CYLINDER for Suzuki VOLUSIA 800 2003

CYLINDER
for Suzuki VOLUSIA 800 2003

CRANKCASE for Suzuki VOLUSIA 800 2003

CRANKCASE
for Suzuki VOLUSIA 800 2003

CRANKCASE COVER for Suzuki VOLUSIA 800 2003

CRANKCASE COVER
for Suzuki VOLUSIA 800 2003

CRANKSHAFT for Suzuki VOLUSIA 800 2003

CRANKSHAFT
for Suzuki VOLUSIA 800 2003

STARTER MOTOR CLUTCH for Suzuki VOLUSIA 800 2003

STARTER MOTOR CLUTCH
for Suzuki VOLUSIA 800 2003

CAMSHAFT VALVES for Suzuki VOLUSIA 800 2003

CAMSHAFT - VALVES
for Suzuki VOLUSIA 800 2003

TIMING for Suzuki VOLUSIA 800 2003

TIMING
for Suzuki VOLUSIA 800 2003

CARBURETOR (MODEL K1/K2/K3/K4) for Suzuki VOLUSIA 800 2003

CARBURETOR (MODEL K1 / K2 / K3 / K4)
for Suzuki VOLUSIA 800 2003

THROTTLE BODY (MODEL K5) for Suzuki VOLUSIA 800 2003

THROTTLE BODY (MODEL K5)
for Suzuki VOLUSIA 800 2003

AIR FILTER (MODEL K1/K2/K3/K4) for Suzuki VOLUSIA 800 2003

AIR FILTER (MODEL K1 / K2 / K3 / K4)
for Suzuki VOLUSIA 800 2003

AIR FILTER (MODEL K5) for Suzuki VOLUSIA 800 2003

AIR FILTER (MODEL K5)
for Suzuki VOLUSIA 800 2003

MUFFLER for Suzuki VOLUSIA 800 2003

MUFFLER
for Suzuki VOLUSIA 800 2003

OIL PUMP / FUEL PUMP (MODEL K1/K2/K3/K4) for Suzuki VOLUSIA 800 2003

OIL PUMP / FUEL PUMP (MODEL K1 / K2 / K3 / K4)
for Suzuki VOLUSIA 800 2003

OIL PUMP (MODEL K5) for Suzuki VOLUSIA 800 2003

OIL PUMP (MODEL K5)
for Suzuki VOLUSIA 800 2003

FUEL PUMP (MODEL K5) for Suzuki VOLUSIA 800 2003

FUEL PUMP (MODEL K5)
for Suzuki VOLUSIA 800 2003

WATER PUMP for Suzuki VOLUSIA 800 2003

WATER PUMP
for Suzuki VOLUSIA 800 2003

RADIATOR for Suzuki VOLUSIA 800 2003

RADIATOR
for Suzuki VOLUSIA 800 2003

RADIATOR HOSE EXPANSION TANK for Suzuki VOLUSIA 800 2003

RADIATOR HOSE - EXPANSION TANK
for Suzuki VOLUSIA 800 2003

FUEL EVAP SYSTEM (MODEL K1/K2/K3/K4) for Suzuki VOLUSIA 800 2003

FUEL EVAP SYSTEM (MODEL K1 / K2 / K3 / K4)
for Suzuki VOLUSIA 800 2003

FUEL EVAP SYSTEM (MODEL K5) for Suzuki VOLUSIA 800 2003

FUEL EVAP SYSTEM (MODEL K5)
for Suzuki VOLUSIA 800 2003

CLUTCH for Suzuki VOLUSIA 800 2003

CLUTCH
for Suzuki VOLUSIA 800 2003

TRANSMISSION (MODEL K1/K2/K3/K4) for Suzuki VOLUSIA 800 2003

TRANSMISSION (MODEL K1 / K2 / K3 / K4)
for Suzuki VOLUSIA 800 2003

TRANSMISSION (MODEL K5) for Suzuki VOLUSIA 800 2003

TRANSMISSION (MODEL K5)
for Suzuki VOLUSIA 800 2003

DRIVESHAFT for Suzuki VOLUSIA 800 2003

DRIVESHAFT
for Suzuki VOLUSIA 800 2003

GEAR SHIFTING ASSY (MODEL K1/K2/K3/K4) for Suzuki VOLUSIA 800 2003

GEAR SHIFTING ASSY (MODEL K1 / K2 / K3 / K4)
for Suzuki VOLUSIA 800 2003

GEAR SHIFTING ASSY (MODEL K5) for Suzuki VOLUSIA 800 2003

GEAR SHIFTING ASSY (MODEL K5)
for Suzuki VOLUSIA 800 2003

DRIVESHAFT for Suzuki VOLUSIA 800 2003

DRIVESHAFT
for Suzuki VOLUSIA 800 2003

FUEL COCK (MODEL K1/K2/K3/K4) for Suzuki VOLUSIA 800 2003

FUEL COCK (MODEL K1 / K2 / K3 / K4)
for Suzuki VOLUSIA 800 2003

Suzuki 800 VOLUSIA 2003

Choose your Suzuki 800 2003 VOLUSIA model

800 VOLUSIA 2003 VL800K3(E2)

Suzuki VOLUSIA

Displacement: 800 cc
Year: 2003
Model code VL800K3(E2)
Drapeau UNITED KINGDOM
United Kingdom

Genuine maintenance parts

Battery
New and original manufacturer parts
Official Suzuki price
International delivery
Secure payment
Expert customer service
Other brands parts catalogues
