Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FUEL PUMP (MODEL K5)

WATER PUMP FOR SUZUKI VOLUSIA 800 2003

RADIATOR

Item numbers

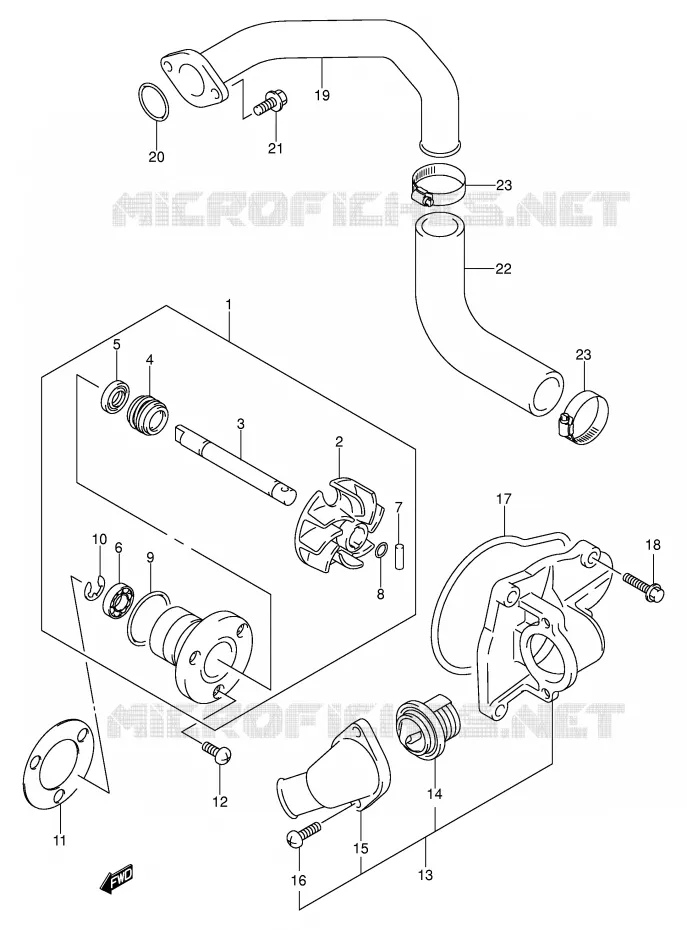

WATER PUMP Suzuki MOTO 800 VOLUSIA 2003 VL800ZK3(E2)
1
1
2
3
4
4
5
6
7
8
9
10
11
12
13
13
13
14
15
15
16
17
18
19
20
21
22
23
23
1
PUMP ASSY, WATER

17400-38A02-000  

17400-38A11-000
 1740038A02000

Unit Price

2
IMPELLER

17491-38A00-000   1749138A00000

1749138A00000

Unit Price

3
SHAFT

17511-38A00-000   1751138A00000

1751138A00000

Unit Price

4
SEAL,MECHANICAL
SEAL, MECHANICAL

17470-02F00-000  

17470-02F11-000
 1747002F00000

Unit Price

5
OIL SEAL, WATER PUMP<br />OIL SEAL (10X21X5)
OIL SEAL, WATER PUMP
OIL SEAL (10X21X5)

09283-10004-000   0928310004000

0928310004000

Unit Price

6
BEARING WATER PUMP
BEARING (10X22X6)

09262-10004-000   0926210004000

0926210004000

Unit Price

7
PIN

17516-38A00-000   1751638A00000

1751638A00000

Unit Price

8
O RING

17515-38A00-000   1751538A00000

1751538A00000

Unit Price

9
O RING

17417-38A00-000  

17417-38A01-000
 1741738A00000

Unit Price

10
08332-1108A
E RING

08332-11086-000  

0833211086000
Not available
11
GASKET, WATER PUMP

17431-38A10-000   1743138A10000

1743138A10000

Unit Price

12
SCREW

02112-06123-000  

02112-3612A-000
 0211206123000

Unit Price

13
CASE ASSY, WATER PUMP

17410-38A00-000  

17410-38A01-000
 1741038A00000

Unit Price

13
DISCONTINUE
CAP ASSY, WATER PUMP

17410-41F01-000   1741041F01000

1741041F01000
Not available
13
DISCONTINUE
CAP ASSY, WATER PUMP

17410-41F10-000   1741041F10000

1741041F10000
Not available
14
THERMOSTAT, WATER

17670-33410-000  

17670-33411-000
 1767033410000

Unit Price

15
CONNECTOR

17412-41F00-000   1741241F00000

1741241F00000

Unit Price

15
CONNECTOR

17412-45C00-000   1741245C00000

1741245C00000

Unit Price

16
SCREW

02112-06163-000  

02112-0616A-000
 0211206163000

Unit Price

17
O RING, WATER PUMP CAP
O RING

17435-38A00-000   1743538A00000

1743538A00000

Unit Price

18
BOLT

01547-06203-000  

01547-0620B-000
 0154706203000

Unit Price

19
PIPE, CYLINDER INLET
PIPE, CYLINDER IN

17890-41F00-000   1789041F00000

1789041F00000

Unit Price

20
O-RING<br />O RING, INLET PIPE
O-RING
O RING, INLET PIPE

09280-24007-000   0928024007000

0928024007000

Unit Price

21
BOLT

01547-06163-000  

01547-0616B-000
 0154706163000

Unit Price

22
HOSE, WATER PUMP OUTLET
HOSE, WATER PUMP OUT

17858-38820-000   1785838820000

1785838820000

Unit Price

23
CLAMP
CLAMP

09402-32511-000   0940232511000

0940232511000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
