OIL PUMP (MODEL K5)

FUEL PUMP (MODEL K5) FOR SUZUKI VOLUSIA 800 2004

WATER PUMP

Item numbers

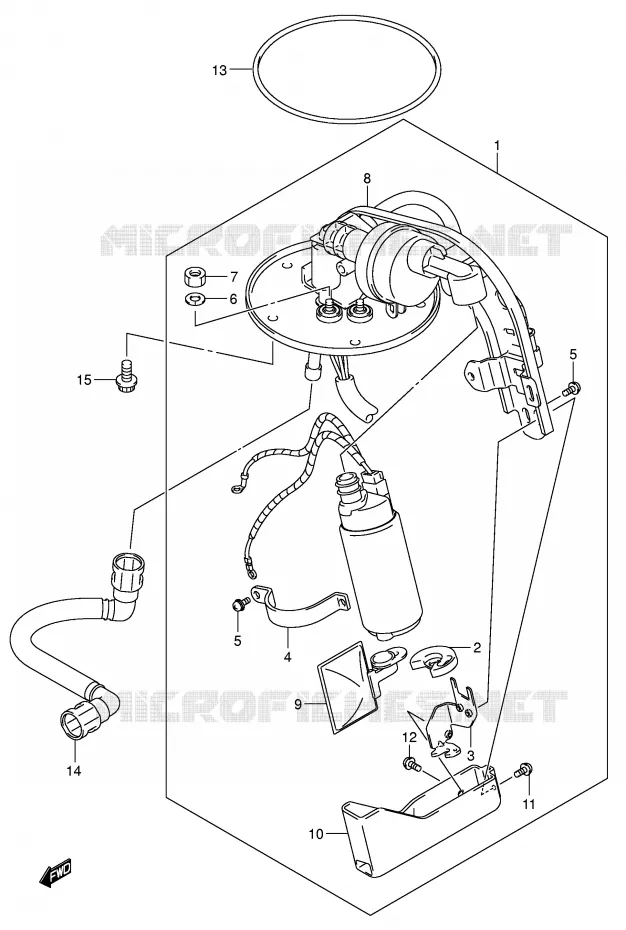

FUEL PUMP (MODEL K5) Suzuki MOTO 800 VOLUSIA 2004 VL800K4(E2)
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
1
PUMP ASSY, FUEL

15100-41F10-000   1510041F10000

1510041F10000

Unit Price

2
CUSHION

15111-41F10-000   1511141F10000

1511141F10000

Unit Price

3
HOLDER

15112-41F10-000   1511241F10000

1511241F10000

Unit Price

4
BAND, FUEL PUMP

15115-10F00-000   1511510F00000

1511510F00000

Unit Price

5
SCREW

15116-10F10-000   1511610F10000

1511610F10000

Unit Price

6
WASHER, SPRING
SPRING WASHER

15172-35F00-000   1517235F00000

1517235F00000

Unit Price

7
NUT

15173-35F00-000   1517335F00000

1517335F00000

Unit Price

8
DISCONTINUE
PLATE ASSY

15410-41F10-000   1541041F10000

1541041F10000
Not available
9
STRAINER

15420-41F10-000   1542041F10000

1542041F10000

Unit Price

10
VESSEL

15425-41F10-000   1542541F10000

1542541F10000

Unit Price

11
SCREW

15429-41F10-000   1542941F10000

1542941F10000

Unit Price

12
SCREW

15429-41F20-000   1542941F20000

1542941F20000

Unit Price

13
O RING, FUEL PUMP
O RING, FUEL PUMP

15201-35F00-000   1520135F00000

1520135F00000

Unit Price

14
HOSE, FUEL

15810-41F00-000   1581041F00000

1581041F00000

Unit Price

15
BOLT

07120-06123-000  

07120-0612B-000
 0712006123000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
