MUFFLER

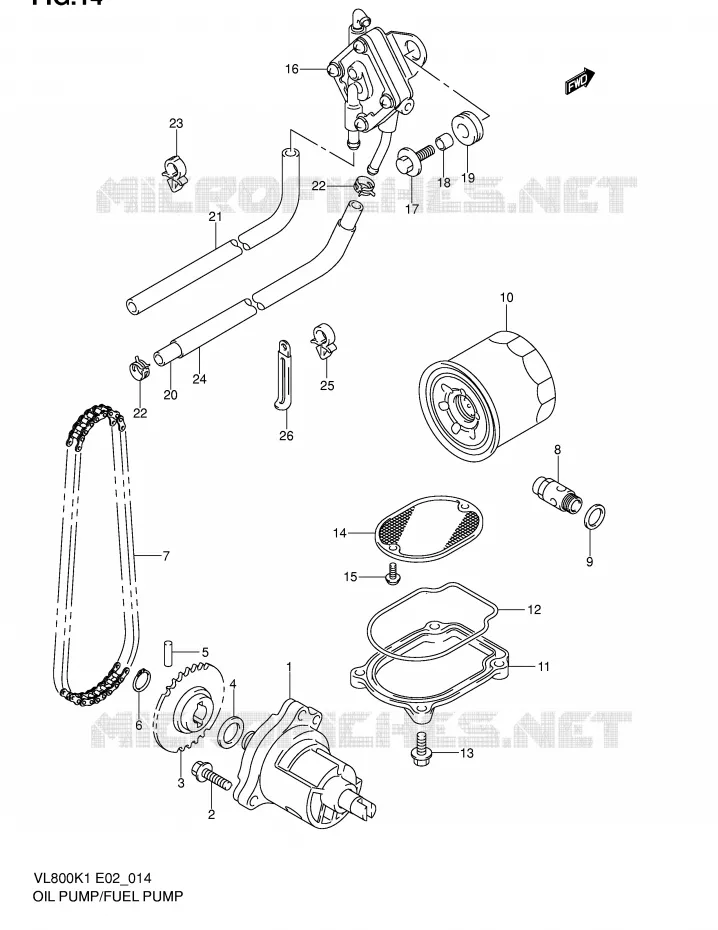

OIL PUMP / FUEL PUMP (MODEL K1 / K2 / K3 / K4) FOR SUZUKI VOLUSIA 800 2004

OIL PUMP (MODEL K5)

Item numbers

PUMP ASSY, ENGINE OIL
PUMP ASSY, OIL

16400-38A01-000 1640038A01000

$200,97

Unit Price

BOLT

01550-06253-000

01550-0625A-000

$3,97

Unit Price

SPROCKET, OIL PUMP DRIVEN

16331-38A10-000 1633138A10000

$41,97

Unit Price

SHIM, 12X20X0.5
WASHER

09181-12158-000 0918112158000

$3,97

Unit Price

09261-05006-000 0926105006000

$2,97

Unit Price

CIRCLIP

08331-31126-000

08331-3112A-000

$2,97

Unit Price

CHAIN, OIL PUMP DRIVE

16310-38A00-000 1631038A00000

$31,97

Unit Price

DISCONTINUE
VALVE ASSY, OIL RELIEF

16440-24A01-000 1644024A01000

Not available

GASKET OIL GALLERY
GASKET

09168-16002-000 0916816002000

$2,97

Unit Price

FILTER ASSY, ENGINE OIL

16510-03G00-X07

16510-07J10-000

$21,45

Unit Price

CAP, OIL STRAINER

16523-38A00-000 1652338A00000

$30,97

Unit Price

O RING, OIL STRAINER CAP
O RING

16528-38A00-000 1652838A00000

$13,97

Unit Price

BOLT

01550-06203-000

01550-0620B-000

$4,97

Unit Price

STRAINER, ENGINE OIL
STRAINER, OIL

16520-38A00-000 1652038A00000

$13,97

Unit Price

SCREW

02112-75123-000

02112-7512A-000

$3,97

Unit Price

PUMP ASSY, FUEL

15100-41F00-000

15100-41F01-000

$214,97

Unit Price

BOLT
BOLT (6X20)

09116-06093-000 0911606093000

$3,97

Unit Price

SPACER(6.5X10X11.6)
SPACER

09180-06319-000 0918006319000

$6,97

Unit Price

CUSHION

09320-10015-000 0932010015000

$3,97

Unit Price

HOSE, FUEL PUMP & CARB

15801-41F00-000

15801-41F01-000

$31,97

Unit Price

HOSE (VACUUM)

09359-45854-600 0935945854600

Not available

CLIP
CLIP, FUEL HOSE

09401-09403-000 0940109403000

$3,97

Unit Price

CLAMP, VACUUM HOSE

09403-08405-000 0940308405000

Not available

PROTECTOR, FUEL HOSE

15812-41F00-000 1581241F00000

$16,97

Unit Price

CLAMP, FUEL HOSE FR

09403-12411-000 0940312411000

Not available

CLAMP, L:120 T:1.0
CLAMP, FUEL HOSE RR

09404-08420-000 0940408420000

$5,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
