CYLINDER

CRANKCASE FOR SUZUKI VX 800 1990

CRANKCASE COVER

Item numbers

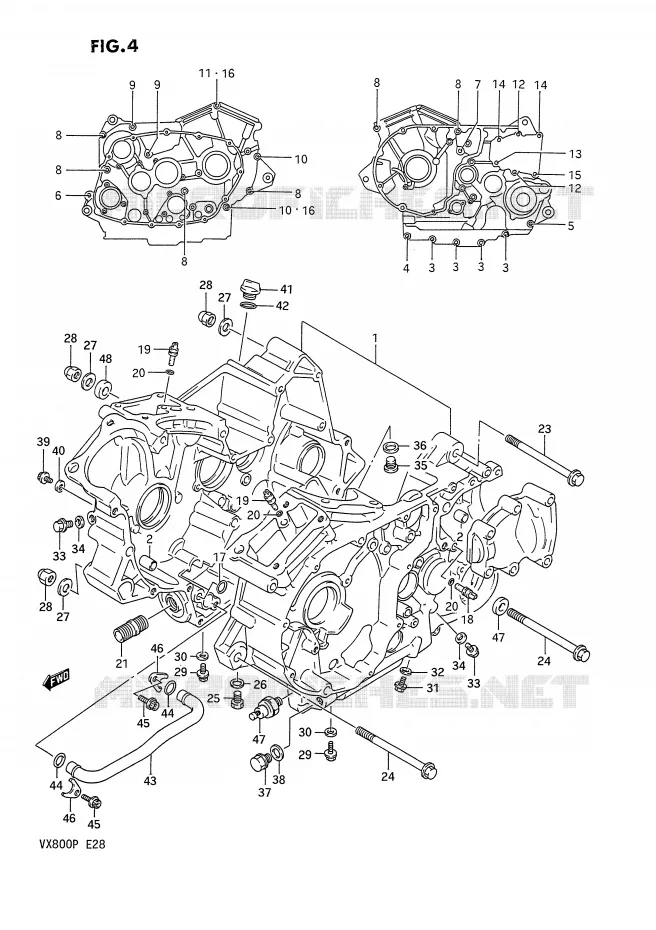

CRANKCASE Suzuki MOTO 800 VX 1990 VX800L(E28)
2
2
1
11300-45890
CRANKCASE SET

11300-45861-000  

1130045861000
Not available
2
PIN, 11 X20

09206-11005-000  

09206-11017-000
 0920611005000

Unit Price

3
BOLT

01517-06408-000  

01550-06407-000
 0151706408000

Unit Price

4
BOLT

01517-08357-000  

01550-08357-000
 0151708357000

Unit Price

5
.BOLT, RH

01517-08558-000   0151708558000

0151708558000
Not available
6
BOLT

01517-08608-000  

01550-0860B-000
 0151708608000

Unit Price

7
.BOLT

01517-08758-000   0151708758000

0151708758000
Not available
8
BOLT

01517-08958-000  

01550-08957-000
 0151708958000

Unit Price

9
BOLT,ENG MOUNT<br />BOLT (8X120)
BOLT, ENG MOUNT
BOLT (8X120)

09103-08109-000   0910308109000

0910308109000

Unit Price

10
BOLT<br />BOLT (8X105)
BOLT
BOLT (8X105)

09103-08097-000   0910308097000

0910308097000

Unit Price

11
BOLT(8X160)

09103-08096-000  

09103-08110-000
 0910308096000

Unit Price

12
BOLT

01517-08407-000  

0151708407000
Not available
13
BOLT

01517-08457-000  

01550-08457-000
 0151708457000

Unit Price

14
.BOLT, RH

01517-08558-000   0151708558000

0151708558000
Not available
15
BOLT

01517-08658-000  

01550-08657-000
 0151708658000

Unit Price

16
GASKET, 8.2X14X1

09168-08008-000  

09168-08016-000
 0916808008000

Unit Price

17
O RING(D:1.9, ID:12.6)

09280-13007-000  

09280-12009-000
 0928013007000

Unit Price

18
JET, OIL GALLERY
JET, OIL GALLERY

09493-20014-000   0949320014000

0949320014000

Unit Price

19
JET,OIL<br />JET, OIL GALLERY
JET, OIL
JET, OIL GALLERY

09493-28010-000   0949328010000

0949328010000

Unit Price

20
O RING
O RING

09280-04004-000   0928004004000

0928004004000

Unit Price

21
UNION, OIL STAND

16591-06B00-000  

16591-06B01-000
 1659106B00000

Unit Price

22
WASHER(48.1X64X1.94)<br />BEARING, CRANK THRUST (NO.1)
WASHER(48.1X64X1.94)
BEARING, CRANK THRUST (NO.1)

09160-48001-000   0916048001000

0916048001000

Unit Price

22
WASHER(48.1X64X1.96)<br />BEARING, CRANK THRUST (NO.2)
WASHER(48.1X64X1.96)
BEARING, CRANK THRUST (NO.2)

09160-48002-000   0916048002000

0916048002000

Unit Price

22
WASHER(48.1X64X1.99)<br />BEARING, CRANK THRUST (NO.3)
WASHER(48.1X64X1.99)
BEARING, CRANK THRUST (NO.3)

09160-48003-000   0916048003000

0916048003000

Unit Price

22
WASHER(48.1X64X2.01)<br />BEARING, CRANK THRUST (NO.4)
WASHER(48.1X64X2.01)
BEARING, CRANK THRUST (NO.4)

09160-48004-000   0916048004000

0916048004000

Unit Price

22
WASHER(48.1X64X2.04)<br />BEARING, CRANK THRUST (NO.5)
WASHER(48.1X64X2.04)
BEARING, CRANK THRUST (NO.5)

09160-48005-000   0916048005000

0916048005000

Unit Price

22
WASHER(48.1X64X2.06)<br />BEARING, CRANK THRUST (NO.6)
WASHER(48.1X64X2.06)
BEARING, CRANK THRUST (NO.6)

09160-48006-000   0916048006000

0916048006000

Unit Price

22
WASHER(48.1X64X2.09)<br />BEARING, CRANK THRUST (NO.7)
WASHER(48.1X64X2.09)
BEARING, CRANK THRUST (NO.7)

09160-48007-000   0916048007000

0916048007000

Unit Price

22
WASHER(48.1X64X2.11)<br />BEARING, CRANK THRUST (NO.8)
WASHER(48.1X64X2.11)
BEARING, CRANK THRUST (NO.8)

09160-48008-000   0916048008000

0916048008000

Unit Price

22
WASHER(48.1X64X2.14)<br />BEARING, CRANK THRUST (NO.9)
WASHER(48.1X64X2.14)
BEARING, CRANK THRUST (NO.9)

09160-48009-000   0916048009000

0916048009000

Unit Price

22
WASHER(48.1X64X2.16)
BEARING, CRANK THRUST (NO.10)

09160-48010-000   0916048010000

0916048010000

Unit Price

23
BOLT (10X130)

09103-10237-000   0910310237000

0910310237000

Unit Price

24
DISCONTINUE
BOLT (10X170)

09103-10224-000  

0910310224000
Not available
25
BOLT

01107-12208-000  

01500-1220B-000
 0110712208000

Unit Price

26
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-12002-000   0916812002000

0916812002000
Not available
27
WASHER

08322-11104-000  

08322-0110B-000
 0832211104000

Unit Price

28
NUT

09159-10052-000   0915910052000

0915910052000

Unit Price

29
BOLT

01517-08128-000  

01550-08127-000
 0151708128000

Unit Price

30
GASKET(8.2X14X1.6)<br />GASKET
GASKET(8.2X14X1.6)
GASKET

09168-08015-000   0916808015000

0916808015000

Unit Price

31
PLUG
PLUG, OIL GALLERY

09247-10008-000   0924710008000

0924710008000

Unit Price

32
CRNK DRAIN PLUG GASK<br />GASKET
CRNK DRAIN PLUG GASK
GASKET

09168-10002-000   0916810002000

0916810002000

Unit Price

33
BOLT

01517-06108-000  

01550-0610B-000
 0151706108000

Unit Price

34
GASKET<br />WASHER
GASKET
WASHER

09168-06023-000   0916806023000

0916806023000
Not available
35
PLUG<br />PLUG, OIL GALLERY
PLUG
PLUG, OIL GALLERY

09248-16008-000   0924816008000

0924816008000

Unit Price

36
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-16002-000   0916816002000

0916816002000

Unit Price

37
PLUG

09247-14012-000  

09247-14026-000
 0924714012000

Unit Price

38
SPARK PLUG GASKET<br />GASKET
SPARK PLUG GASKET
GASKET

09168-14004-000   0916814004000

0916814004000

Unit Price

39
PLUG, OIL GALLERY

07120-08127-000   0712008127000

0712008127000
Not available
40
GASKET(8.2X14X1.6)<br />GASKET
GASKET(8.2X14X1.6)
GASKET

09168-08015-000   0916808015000

0916808015000

Unit Price

41
PLUG, ENG OIL FILLER

09259-20017-000  

09259-20007-000
 0925920017000

Unit Price

42
O-RING,OIL FILLER<br />O RING
O-RING, OIL FILLER
O RING

09280-17003-000   0928017003000

0928017003000

Unit Price

43
PIPE, OIL GALL
PIPE, OIL GALLERY

11451-38A00-000   1145138A00000

1145138A00000

Unit Price

44
O RING(D:3.1, ID:14.8)
O RING

09280-15008-000   0928015008000

0928015008000

Unit Price

45
SCREW

07120-06128-000  

07120-06127-000
 0712006128000

Unit Price

46
CLAMP, OIL PIPE
CLAMP

11461-38A00-000   1146138A00000

1146138A00000

Unit Price

47
SWITCH ASSY, OIL PRESSURE

37820-33D00-000  

37820-33D11-000
 3782033D00000

Unit Price

48
DISCONTINUE
SPACER, ENGINE MOUNTING

41932-45C00-000   4193245C00000

4193245C00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki of VX. Let us know if you have any questions.

Genuine parts for Suzuki 800 VX 1990
