WATER PUMP

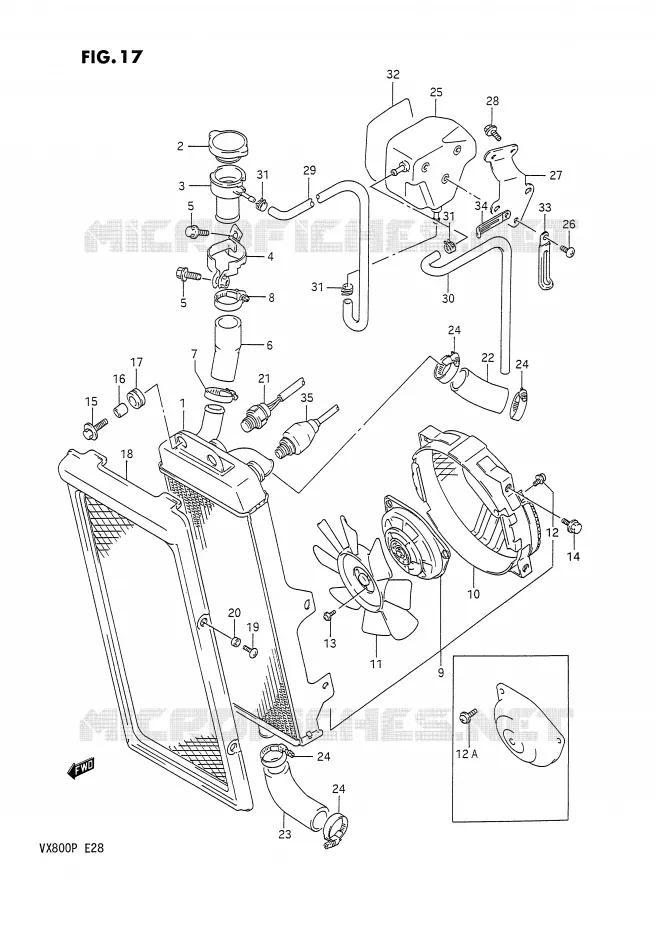

RADIATOR FOR SUZUKI VX 800 1990

CLUTCH

RADIATOR

17710-45C00-000 1771045C00000

Not available

CAP, RADIATOR

17730-20930-000

17730-08J00-000

$38,97

Unit Price

DISCONTINUE
CONDUCTION, RADIATOR

17791-45C00-000 1779145C00000

Not available

BRACKET, CONDUCTION

17793-45C00-000 1779345C00000

Not available

01550-0616A
BOLT REFER TO FIG.52A(H-10) FOR MO

01517-06164-000

Not available

DISCONTINUE
HOSE, CONDUCTION

17859-45C00-000 1785945C00000

Not available

CLAMP

09402-30502-000

09402-32511-000

$23,97

Unit Price

CLAMP

09402-32502-000 0940232502000

Not available

DISCONTINUE

17800-45C00-000

Not available

DISCONTINUE

17760-45C00-000

Not available

DISCONTINUE
FAN

17820-45C00-000 1782045C00000

Not available

SCREW

02112-75105-000 0211275105000

Not available

12A

SCREW

17801-45C00-000 1780145C00000

Not available

SCREW

17801-05A00-000

02112-0406B-000

$2,97

Unit Price

BOLT

01517-06108-000

01550-0610B-000

$4,97

Unit Price

BOLT (6X25)

09116-06131-000 0911606131000

$3,97

Unit Price

SPACER

09180-06030-000

09180-06310-000

$3,97

Unit Price

CUSHION

09320-10015-000 0932010015000

$3,97

Unit Price

COVER, RADIATOR

17761-45C00-000 1776145C00000

Not available

SCREW

02142-06108-000

02142-06107-000

$3,97

Unit Price

SCREW
SCREW (6X10)

09139-06055-000 0913906055000

$3,97

Unit Price

SCREW
SCREW (6X10)

09139-06078-000 0913906078000

$5,97

Unit Price

SPACER (6.4X9X3.5)

09180-06102-000 0918006102000

Not available

DISCONTINUE
SWITCH, RADIATOR FAN

17680-45C00-000 1768045C00000

Not available

DISCONTINUE
HOSE, RADIATOR IN

17851-45C00-000 1785145C00000

Not available

DISCONTINUE
HOSE, RADIATOR OUT

17852-45C00-000 1785245C00000

Not available

CLAMP

09402-30502-000

09402-32511-000

$23,97

Unit Price

TANK, RESERVOIR

17911-45C00-000 1791145C00000

Not available

SCREW

02142-06086-000

02142-06083-000

$2,97

Unit Price

DISCONTINUE
BRACKET, RESERVOIR TANK

17920-45C00-000 1792045C00000

Not available

BOLT

01517-06204-000

01550-0620B-000

$4,97

Unit Price

HOSE, RESERVOIR TANK INLET
HOSE, TANK IN

17981-45C00-000 1798145C00000

$23,97

Unit Price

HOSE, 5 X 9 X 2000

17982-45C00-000

17982-17E00-000

$30,97

Unit Price

CLIP

09401-08405-000

Not available

CLIP

09401-08407-000

Not available

DISCONTINUE
EMBLEM, RESERVIOR TANK

17930-45C00-000 1793045C00000

Not available

CLAMP(L:65)

09404-06403-000

09404-06039-000

$3,97

Unit Price

CLAMP(L:65)

09404-06401-000

09404-06039-000

$3,97

Unit Price

SWITCH ASSY, WATER TEMP
SWITCH, WATER TEMPARATURE

34850-03D00-000 3485003D00000

$121,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the RADIATOR of your Suzuki of VX. Let us know if you have any questions.
