GEAR SHIFTING ASSY

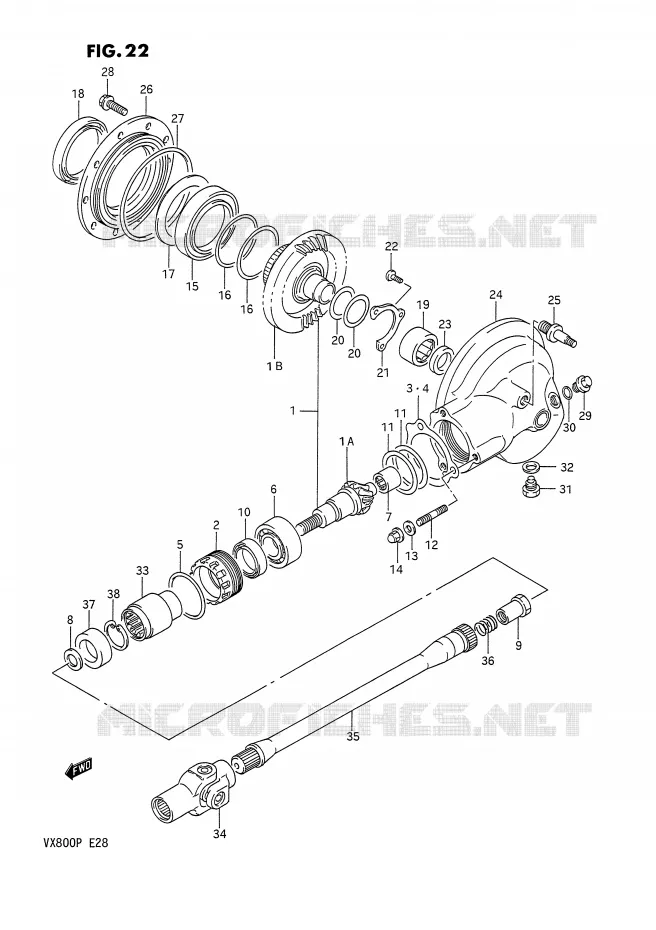

DRIVESHAFT FOR SUZUKI VX 800 1993

FUEL COCK

GEAR, FINAL DRIVE BEVEL(NT:11)

27300-45831-000

27311-38A00-000

$254,97

Unit Price

GEAR, FINAL DRIVE BEVEL(NT:11)
GEAR, FINAL DRIVE BEVEL

27311-38A00-000 2731138A00000

$254,97

Unit Price

GEAR, FINAL DRIVEN BEVEL(NT:34)
GEAR, FINAL DRIVEN BEVEL

27320-45C01-000 2732045C01000

$379,97

Unit Price

STOPPER, FINAL DRIVE BEARING
STOPPER, BEARING

27312-38A00-000 2731238A00000

$75,97

Unit Price

PLATE

27313-45C00-000 2731345C00000

Not available

DISCONTINUE
PLATE

27313-45C10-000

Not available

O RING
O RING (D:1.9, ID:61.6)

09280-62002-000 0928062002000

$5,97

Unit Price

BEARING

09267-30005-000 0926730005000

$146,97

Unit Price

BEARING (17X32X16)

09263-17028-000 0926317028000

$54,97

Unit Price

WASHER
WASHER (16X29X4)

09160-16029-000 0916016029000

$8,97

Unit Price

NUT

09159-16010-000 0915916010000

$16,97

Unit Price

SEAL, OIL
OIL SEAL (38X54X6)

09283-38009-000 0928338009000

$22,97

Unit Price

SHIM (T:0.30)

27445-38A00-030 2744538A00030

Not available

SHIM (T:0.35)

27445-38A00-035 2744538A00035

Not available

SHIM (T:0.40)

27445-38A00-040 2744538A00040

Not available

SHIM (T:0.50)

27445-38A00-050 2744538A00050

Not available

SHIM (T:0.60)

27445-38A00-060 2744538A00060

Not available

BOLT, STUD
STUD BOLT

09108-10095-000 0910810095000

$6,97

Unit Price

WASHER
LOCK WASHER

09164-10008-000 0916410008000

$2,97

Unit Price

CYLINDER HEAD NUT
NUT

09159-10026-000 0915910026000

$9,97

Unit Price

FIN DRVN GR BEA *S1
BEARING, RH

09262-70001-000 0926270001000

$158,97

Unit Price

SHIM SET, DRIVEN GEAR BEARING

27327-34200-000

27327-34810-000

$30,97

Unit Price

SHIM (T:0.40)

27327-34210-000 2732734210000

Not available

SHIM BEARING (T:0.5)

27327-34220-000 2732734220000

Not available

SHIM (T:0.60)

27327-34230-000 2732734230000

Not available

PLATE, FINAL DRIVEN BRG OIL
PLATE

27328-34200-000 2732834200000

$11,97

Unit Price

DRVN GEAR R OIL SEAL
OIL SEAL, RH

09289-70001-000 0928970001000

$74,97

Unit Price

BEARING FINAL DRIVEN
BEARING, LH

09263-32007-000 0926332007000

$97,97

Unit Price

SHIM (T:1.05)

27326-34201-000 2732634201000

Not available

SHIM (T:1.40)

27326-34201-140 2732634201140

Not available

SHIM (T:1.45)

27326-34201-145 2732634201145

Not available

SHIM (T:1.50)

27326-34201-150 2732634201150

Not available

SHIM (T:1.10)

27326-34211-000 2732634211000

Not available

SHIM (T:1.20)

27326-34221-000 2732634221000

Not available

SHIM (T:1.25)

27326-34231-000 2732634231000

Not available

SHIM (T:1.35)

27326-34241-000 2732634241000

Not available

RETAINER, FINAL DRIVEN GEAR BRG
RETAINER, BEARING

27329-34200-000 2732934200000

$7,97

Unit Price

SCREW

02112-06128-000

02112-06127-000

$2,97

Unit Price

DRIVEN GEAR OIL SEAL
OIL SEAL (30X42X7)

09283-30028-000 0928330028000

$15,97

Unit Price

CASE, FINAL GEAR

27450-45C01-13L 2745045C0113L

Not available

.CASE, FINAL GEAR

27450-45C01-23W 2745045C0123W

Not available

STUD BOLT

27481-45C00-000 2748145C00000

Not available

CASE, FINAL GEAR BEARING

27460-07A01-000 2746007A01000

$157,97

Unit Price

O RING FINAL GR CASE
O RING (D:3.5, ID:131.6)

09280-00015-000 0928000015000

$15,97

Unit Price

BOLT

01517-08258-000

01550-08257-000

$4,97

Unit Price

PLUG

09247-18007-000

09247-18001-000

$10,97

Unit Price

SEAL NUT O RING
O RING (D:2.4, ID:17.8)

09280-18004-000 0928018004000

$8,97

Unit Price

PLUG, OIL DRAIN

09247-14019-000

09247-14036-000

$10,97

Unit Price

SPARK PLUG GASKET
GASKET

09168-14004-000 0916814004000

$2,97

Unit Price

COUPLING, FINAL DRIVE GEAR
COUPLING, PROPELLER SHAFT

27172-38A00-000 2717238A00000

$63,97

Unit Price

YOKE, UNIVERSAL JOINT

27100-38A50-000

27100-38A60-000

$373,97

Unit Price

DISCONTINUE
SHAFT, PROPELLER

27151-45C01-000 2715145C01000

Not available

SPRING

09440-18019-000 0944018019000

$4,97

Unit Price

SEAL.OIL
OIL SEAL (28.4X48X15)

09283-30051-000 0928330051000

$16,97

Unit Price

DR CUP RING CIRCLIP
CIRCLIP

09381-40003-000 0938140003000

$6,97

Unit Price

99x

DISCONTINUE
GEAR & CASE SET, FINAL BEVEL

27300-45842-13L

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the DRIVESHAFT of your Suzuki of VX. Let us know if you have any questions.
