CARBURETOR FOR SUZUKI GS 850 1986

AIR FILTER

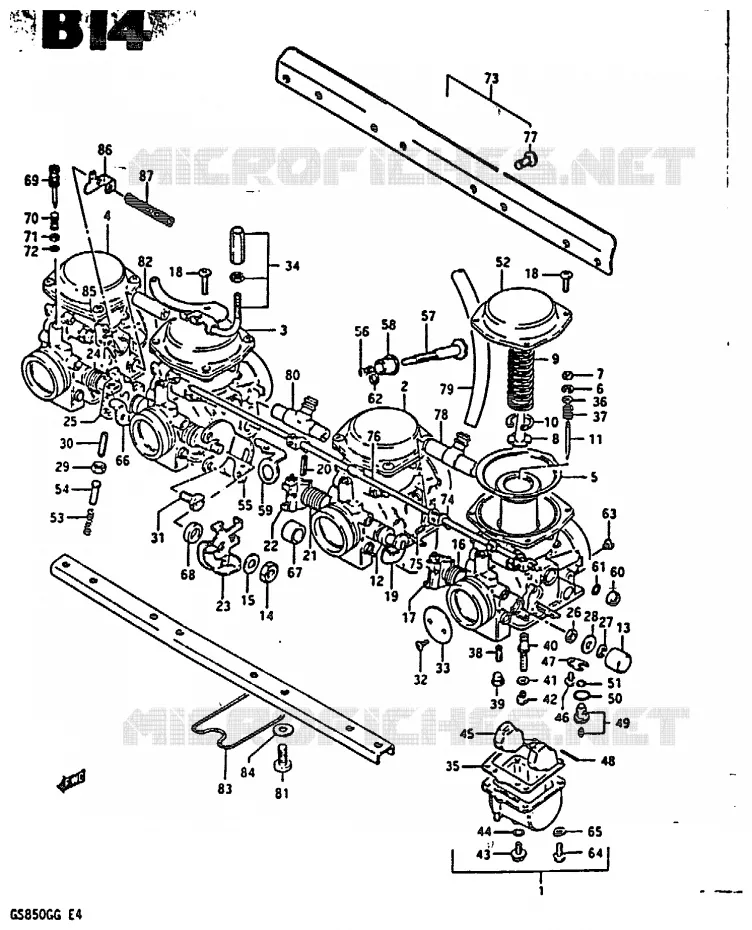

CARBURETOR Suzuki MOTO 850 GS 1986 GS850GG(E4)
1
CARBURETOR ASSY, NO.1

13201-45170-000   1320145170000

1320145170000
Not available
2
CARBURETOR ASSY, NO.2

13202-45170-000   1320245170000

1320245170000
Not available
3
CARBURETOR ASSY, NO.3

13203-45170-000   1320345170000

1320345170000
Not available
4
CARBURETOR ASSY, NO.4

13204-45170-000   1320445170000

1320445170000
Not available
5
DISCONTINUE
DIAPHRAGM

13500-45110-000  

1350045110000
Not available
6
CLIP,NEEDLE<br />E RING
CLIP, NEEDLE
E RING

13394-31210-000   1339431210000

1339431210000

Unit Price

7
RING
RING

13387-44030-000   1338744030000

1338744030000

Unit Price

8
DISCONTINUE<br />GUIDE HOLDER
DISCONTINUE
GUIDE HOLDER

13389-44030-000   1338944030000

1338944030000
Not available
9
DISCONTINUE
SPRING

13503-44080-000   1350344080000

1350344080000
Not available
10
DISCONTINUE<br />CLIP
DISCONTINUE
CLIP

13581-44030-000   1358144030000

1358144030000
Not available
11
DISCONTINUE
NEEDLE, JET (5057-3)

13383-45120-000   1338345120000

1338345120000
Not available
12
GASKET,THROTTLE SHAFT<br />GASKET
GASKET, THROTTLE SHAFT
GASKET

13557-47070-000   1355747070000

1355747070000

Unit Price

13
CAP
CAP

13578-47070-000   1357847070000

1357847070000

Unit Price

14
NUT

08310-22086-000  

08310-00083-000
 0831022086000

Unit Price

15
WASHER

13606-47070-000   1360647070000

1360647070000
Not available
16
SPRING

13573-47070-000   1357347070000

1357347070000
Not available
17
SHAFT

13550-47070-000   1355047070000

1355047070000
Not available
18
SCREW

02112-05166-000  

02112-0516B-000
 0211205166000

Unit Price

19
DISCONTINUED

13550-45110-000   1355045110000

1355045110000
Not available
20
PIN

13563-47070-000   1356347070000

1356347070000
Not available
21
..SPRING

13573-45110-000   1357345110000

1357345110000
Not available
22
LEVER

13553-47070-000   1355347070000

1355347070000
Not available
23
LEVER

13555-47070-000   1355547070000

1355547070000
Not available
24
SPRING

13573-47080-000   1357347080000

1357347080000
Not available
25
..SHAFT

13550-47090-000   1355047090000

1355047090000
Not available
26
SEAL,THRO SHAFT
SEAL, THRO SHAFT

13651-51010-000  

13651-51011-000
 1365151010000

Unit Price

27
E RING
E RING

13617-44080-000   1361744080000

1361744080000

Unit Price

28
GASKET,THROTTLE SHAFT<br />GASKET
GASKET, THROTTLE SHAFT
GASKET

13557-47070-000   1355747070000

1355747070000

Unit Price

29
NUT
NUT

13607-47070-000   1360747070000

1360747070000

Unit Price

30
SCREW
SCREW

13605-47080-000   1360547080000

1360547080000

Unit Price

31
SCREW

13605-45420-000  

02112-05103-000
 1360545420000

Unit Price

32
SCREW
SCREW

13604-44080-000   1360444080000

1360444080000

Unit Price

33
DISCONTINUED

13551-45110-000   1355145110000

1355145110000
Not available
34
BRACKET

13621-45160-000   1362145160000

1362145160000
Not available
35
GASKET, FLOAT CHAMBER

13251-44080-000  

13251-44081-H17
 1325144080000

Unit Price

36
WASHER
WASHER

13382-44030-000   1338244030000

1338244030000

Unit Price

37
SPRING
SPRING

13388-44030-000   1338844030000

1338844030000

Unit Price

38
DISCONTINUE
JET, PILOT (42.5)

09492-42007-000   0949242007000

0949242007000
Not available
39
PLUG,NEEDLE JET<br />PLUG
PLUG, NEEDLE JET
PLUG

13357-44080-000   1335744080000

1335744080000

Unit Price

40
JET, NEEDLE (X-6)

09494-00270-000   0949400270000

0949400270000
Not available
41
WASHER

13332-44080-000  

13382-03110-000
 1333244080000

Unit Price

42
JET, MAIN
JET, MAIN (115)

09491-23011-000   0949123011000

0949123011000

Unit Price

43
PLUG,DRAIN<br />SCREW
PLUG, DRAIN
SCREW

13247-44080-000   1324744080000

1324744080000

Unit Price

44
GASKET<br />O RING
GASKET
O RING

13246-44080-000   1324644080000

1324644080000

Unit Price

45
FLOAT

13250-44080-000   1325044080000

1325044080000

Unit Price

46
SCREW

02112-04066-000  

02112-0406B-000
 0211204066000

Unit Price

47
PLATE,NEEDLE VALVE FITING<br />PLATE
PLATE, NEEDLE VALVE FITING
PLATE

13373-11400-000   1337311400000

1337311400000

Unit Price

48
PIN, FLOAT
PIN, FLOAT

13254-92311-000   1325492311000

1325492311000

Unit Price

49
VALVE ASSY, NEEDLE

13370-44500-000   1337044500000

1337044500000

Unit Price

50
O RING, NEEDLE VALVE SEAT

13374-44080-000  

13374-35C00-000
 1337444080000

Unit Price

51
.FILTER

13376-65010-000   1337665010000

1337665010000
Not available
52
COVER

13502-45110-000   1350245110000

1350245110000
Not available
53
SPRING

13268-44010-000   1326844010000

1326844010000
Not available
54
PIN

13575-47070-000   1357547070000

1357547070000
Not available
55
BRACKET

13627-45110-000   1362745110000

1362745110000
Not available
56
SPRING
SPRING

13271-93011-000   1327193011000

1327193011000

Unit Price

57
DISCONTINUE
ADJUSTER

13267-47070-000   1326747070000

1326747070000
Not available
58
DISCONTINUE<br />BUSH
DISCONTINUE
BUSH

13276-31210-000   1327631210000

1327631210000
Not available
59
BRACKET

13627-44090-000   1362744090000

1362744090000
Not available
60
CAP,STARTER VALVE<br />CAP
CAP, STARTER VALVE
CAP

13682-31210-000   1368231210000

1368231210000

Unit Price

61
O RING
O RING

13278-47090-000  

13278-47091-000
 1327847090000

Unit Price

62
WASHER

13432-47090-000   1343247090000

1343247090000

Unit Price

63
JET, PILOT AIR (200)

09493-40001-000   0949340001000

0949340001000
Not available
64
SCREW

02112-05166-000  

02112-0516B-000
 0211205166000

Unit Price

65
WASHER, LOCK

08321-21056-000  

08321-01053-000
 0832121056000

Unit Price

66
DISCONTINUED

13550-45120-000   1355045120000

1355045120000
Not available
67
RING

13574-45110-000   1357445110000

1357445110000
Not available
68
DISCONTINUE
RING

13574-45120-000   1357445120000

1357445120000
Not available
69
SCREW, PILOT

13279-47080-000  

13279-47070-000
 1327947080000

Unit Price

70
SPRING
SPRING

13268-47070-000   1326847070000

1326847070000

Unit Price

71
.WASHER

13277-44080-000   1327744080000

1327744080000
Not available
72
.O RING

13278-44080-000   1327844080000

1327844080000
Not available
73
FLANGE ASSY

13210-45160-000   1321045160000

1321045160000
Not available
74
LEVER
LEVER

13422-44080-000   1342244080000

1342244080000
Not available
75
DISCONTINUE
SCREW

13605-47070-000   1360547070000

1360547070000
Not available
76
DISCONTINUED

13410-45110-000   1341045110000

1341045110000
Not available
77
SCREW

02152-05126-000   0215205126000

0215205126000
Not available
78
NIPPLE

13685-47070-000   1368547070000

1368547070000

Unit Price

79
09354-65113-600
HOSE (6.5X10.5X400)

13683-49160-000  

1368349160000
Not available
80
DISCONTINUE
NIPPLE

13685-45110-000   1368545110000

1368545110000
Not available
81
SCREW

02112-06126-000  

02112-0612B-000
 0211206126000

Unit Price

82
DISCONTINUE
NIPPLE

13685-47090-000   1368547090000

1368547090000
Not available
83
DISCONTINUED

13619-45110-000   1361945110000

1361945110000
Not available
84
WASHER

13615-49200-000   1361549200000

1361549200000
Not available
85
LEVER

13413-49220-000   1341349220000

1341349220000
Not available
86
LEVER

13421-49220-000   1342149220000

1342149220000
Not available
87
SPRING

13437-49220-000   1343749220000

1343749220000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR of your Suzuki GS 850 G of GS. Let us know if you have any questions.

Genuine parts for Suzuki 850 GS 1986
