Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

TRANSMISSION

DRIVESHAFT FOR SUZUKI GS 850 1986

GEAR SHIFTING ASSY

DISCONTINUE

24900-45811-000

Not available

DISCONTINUE
BEARING

09265-32001-000 0926532001000

Not available

DISCONTINUE
SHIM (T:1.60)

09181-32001-000 0918132001000

Not available

SHIM (T:1.62)

09181-32002-000 0918132002000

Not available

SHIM (T:1.64)

09181-32003-000 0918132003000

Not available

DISCONTINUE
SHIM (T:1.66)

09181-32004-000 0918132004000

Not available

SHIM (T:1.68)

09181-32005-000 0918132005000

Not available

SHIM (T:1.70)

09181-32006-000 0918132006000

Not available

SHIM (T:1.80)

09181-32007-000 0918132007000

Not available

SHIM (T:1.90)

09181-32008-000 0918132008000

Not available

DISCONTINUE
SHIM (T:2.00)

09181-32009-000 0918132009000

Not available

DISCONTINUE
NUT

09159-32001-000 0915932001000

Not available

HOUSING, DRIVE GEAR

24931-45100-000 2493145100000

Not available

DISCONTINUE
BEARING, FRONT

09265-25012-000 0926525012000

Not available

BEARING, REAR

09265-25011-000 0926525011000

Not available

SPACER

09180-25056-000 0918025056000

Not available

SHIM (T:1.60)

09181-25006-000 0918125006000

Not available

SHIM (T:1.62)

09181-25007-000 0918125007000

Not available

SHIM (T:1.64)

09181-25008-000 0918125008000

Not available

SHIM (T:1.66)

09181-25009-000 0918125009000

Not available

SHIM (T:1.68)

09181-25010-000 0918125010000

Not available

SHIM (T:1.70)

09181-25011-000 0918125011000

Not available

SHIM (T:1.80)

09181-25012-000 0918125012000

Not available

SHIM (T:1.90)

09181-25013-000 0918125013000

Not available

SHIM (T:2.00)

09181-25014-000 0918125014000

Not available

FLANGE, UNIVERSAL JOINT

24951-49100-000 2495149100000

Not available

WASHER(14X29X4)
WASHER

09160-14021-000 0916014021000

$9,97

Unit Price

F. DRIVE BEVEL NUT
NUT

09159-14010-000 0915914010000

$21,97

Unit Price

HOUSING, DRIVEN BEVEL GEAR

24941-45101-000 2494145101000

Not available

DISCONTINUE
OIL SEAL

09283-35018-000 0928335018000

Not available

DRIVEN BEVEL P RING
O RING

09280-70005-000 0928070005000

$12,97

Unit Price

SHIM

24945-45100-000 2494545100000

Not available

DISCONTINUED

24945-45101-000 2494545101000

Not available

SHIM

24945-45102-000 2494545102000

Not available

SHIM (T:0.50)

24945-45103-000 2494545103000

Not available

SHIM

24945-45104-000 2494545104000

Not available

OIL STRAINER O RING
O RING

09280-63004-000 0928063004000

$16,97

Unit Price

BOLT

01517-08208-000 0151708208000

Not available

SHIM

24935-45100-000 2493545100000

Not available

DISCONTINUED

24935-45101-000 2493545101000

Not available

SHIM

24935-45102-000 2493545102000

Not available

SHIM (T:0.50)

24935-45103-000 2493545103000

Not available

DISCONTINUE
SHIM

24935-45104-000 2493545104000

Not available

BOLT

01517-08258-000

01550-08257-000

$4,97

Unit Price

DISCONTINUE
PLUG

09241-58001-000 0924158001000

Not available

DISCONTINUED

24900-45830-000 2490045830000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

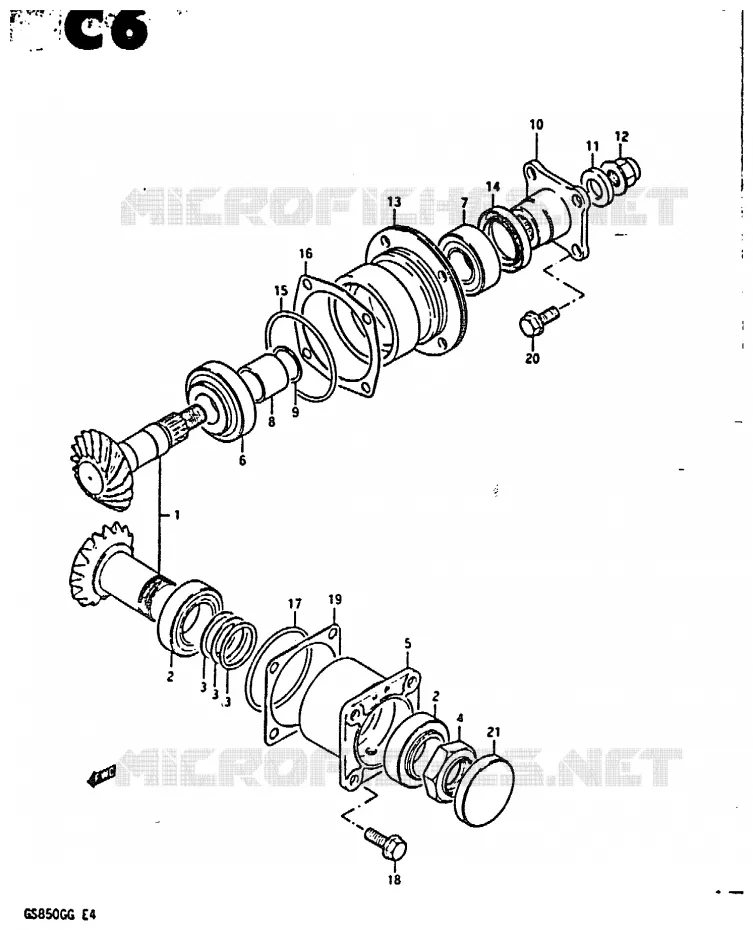

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the DRIVESHAFT of your Suzuki GS 850 G of GS. Let us know if you have any questions.
