Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CARBURETOR (MODEL R / S) REFER TO FIG.11A(C-6) FOR E18,E39

CARBURETOR (E18,E39) FOR SUZUKI RF 900 1996

CARBURETOR (MODEL T / V / W)

Item numbers

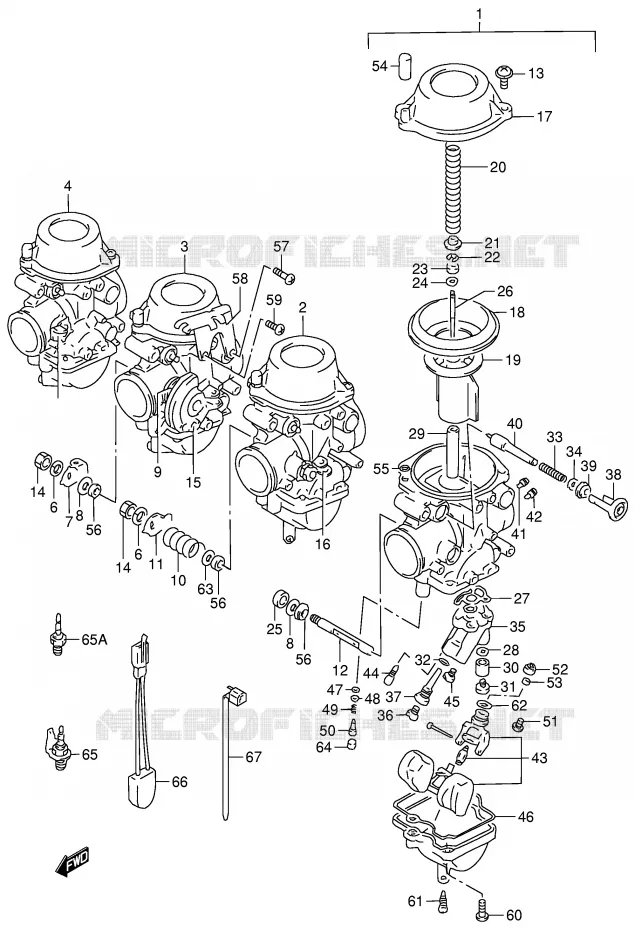

CARBURETOR (E18,E39) Suzuki MOTO 900 RF 1996 RF900RT(E2)
1
1
1
1
2
2
2
2
3
3
3
3
4
4
4
4
6
6
7
8
8
9
10
11
12
13
14
14
15
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
36
37
38
39
40
41
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
56
56
57
58
59
60
61
62
63
64
65
65A
66
67
1
CARBURETOR ASSY, LH

13201-31E30-000   1320131E30000

1320131E30000
Not available
1
CARBURETOR ASSY, LH

13201-31E31-000   1320131E31000

1320131E31000
Not available
1
CARBURETOR ASSY, LH

13201-31E80-000   1320131E80000

1320131E80000
Not available
1
CARBURETOR ASSY, LH

13201-31E81-000   1320131E81000

1320131E81000
Not available
2
CARBURETOR ASSY, ML

13202-31E30-000   1320231E30000

1320231E30000
Not available
2
CARBURETOR ASSY, ML

13202-31E31-000   1320231E31000

1320231E31000
Not available
2
CARBURETOR ASSY, ML

13202-31E80-000   1320231E80000

1320231E80000
Not available
2
CARBURETOR ASSY, ML

13202-31E81-000   1320231E81000

1320231E81000
Not available
3
CARBURETOR ASSY, MR

13203-31E30-000   1320331E30000

1320331E30000
Not available
3
CARBURETOR ASSY, MR

13203-31E31-000   1320331E31000

1320331E31000
Not available
3
CARBURETOR ASSY, MR

13203-31E80-000   1320331E80000

1320331E80000
Not available
3
CARBURETOR ASSY, MR

13203-31E81-000   1320331E81000

1320331E81000
Not available
4
CARBURETOR ASSY, RH

13204-31E30-000   1320431E30000

1320431E30000
Not available
4
CARBURETOR ASSY, RH

13204-31E31-000   1320431E31000

1320431E31000
Not available
4
CARBURETOR ASSY, RH

13204-31E80-000   1320431E80000

1320431E80000
Not available
4
CARBURETOR ASSY, RH

13204-31E81-000   1320431E81000

1320431E81000
Not available
5
SHAFT, THROTTLE

13550-21E30-000   1355021E30000

1355021E30000
Not available
6
WASHER
WASHER

09169-08012-000   0916908012000

0916908012000

Unit Price

7
LEVER, THROTTLE

13553-21E10-000   1355321E10000

1355321E10000
Not available
8
GASKET,THROTTLE SHAFT<br />GASKET
GASKET, THROTTLE SHAFT
GASKET

13557-47070-000   1355747070000

1355747070000

Unit Price

9
SPRING

13573-31E10-000   1357331E10000

1357331E10000
Not available
10
SPRING

13573-31E00-000   1357331E00000

1357331E00000
Not available
11
LEVER, THROTTLE

13550-21E10-000   1355021E10000

1355021E10000
Not available
12
SHAFT, THROTTLE

13550-21E00-000   1355021E00000

1355021E00000
Not available
13
SCREW

02112-75163-000  

02112-7516A-000
 0211275163000

Unit Price

14
NUT
NUT

08310-00087-000   0831000087000

0831000087000

Unit Price

15
DISCONTINUE
SHAFT, THROTTLE

13550-21E20-000   1355021E20000

1355021E20000
Not available
16
SHAFT, THROTTLE

13553-21E00-000   1355321E00000

1355321E00000
Not available
17
COVER, DIAPHRAGM

13502-26D80-000   1350226D80000

1350226D80000
Not available
17
COVER, DIAPHRAGM

13502-31E00-000   1350231E00000

1350231E00000
Not available
18
DIAPHRAGM
DIAPHRAGM

13507-17C01-000  

13507-17C02-000
 1350717C01000

Unit Price

19
DISCONTINUE
VALVE, PISTON

13501-18E00-000   1350118E00000

1350118E00000
Not available
20
13417-17E10
SPRING

13417-31E00-000  

1341731E00000
Not available
21
RING
RING

13382-42A00-000   1338242A00000

1338242A00000

Unit Price

22
E RING<br />CLIP, NEEDLE
E RING
CLIP, NEEDLE

13394-40D20-000   1339440D20000

1339440D20000

Unit Price

23
RING
RING

13387-47010-000   1338747010000

1338747010000

Unit Price

24
WASHER
WASHER

13382-44030-000   1338244030000

1338244030000

Unit Price

25
RING

13574-32C00-000   1357432C00000

1357432C00000
Not available
26
NEEDLE, JET (5DFT 12-3)

13383-31E30-000   1338331E30000

1338331E30000
Not available
27
O RING

13251-33C00-000   1325133C00000

1325133C00000

Unit Price

28
GASKET
WASHER

13332-05A10-000   1333205A10000

1333205A10000

Unit Price

29
DISCONTINUE
JET, NEEDLE (O-9)

09494-00810-000   0949400810000

0949400810000
Not available
30
DISCONTINUE
RING

13331-21E40-000   1333121E40000

1333121E40000
Not available
31
DISCONTINUE
SCREW

13602-06C20-000   1360206C20000

1360206C20000
Not available
32
O RING

13294-33C00-000   1329433C00000

1329433C00000

Unit Price

33
SPRING
SPRING

13417-26D00-000   1341726D00000

1341726D00000

Unit Price

34
WASHER

13432-47090-000   1343247090000

1343247090000

Unit Price

35
HOLDER, JET

13220-21E00-000   1322021E00000

1322021E00000
Not available
36
JET, MAIN (107.50)

09491-21020-000  

09491-21019-000
 0949121020000

Unit Price

36
JET,MAIN<br />JET, MAIN (105)
JET, MAIN
JET, MAIN (105)

09491-21023-000   0949121023000

0949121023000

Unit Price

37
DISCONTINUE
HOLDER, JET

13385-21E00-000   1338521E00000

1338521E00000
Not available
38
HOLDER, GUIDE
HOLDER, GUIDE

13418-17C10-000   1341817C10000

1341817C10000

Unit Price

39
CAP,STARTER
CAP, STARTER

13418-17C00-000  

13418-17C01-000
 1341817C00000

Unit Price

40
PLUNGER ASSY
PLUNGER ASSY

13411-05320-000   1341105320000

1341105320000

Unit Price

41
JET,AIR(0.6)<br />JET, MAIN AIR, 0.6
JET, AIR(0.6)
JET, MAIN AIR, 0.6

09493-60004-000   0949360004000

0949360004000

Unit Price

41
JET, MAIN AIR, 0.7
JET, MAIN AIR, 0.7

09493-70009-000   0949370009000

0949370009000
Not available
42
JET, PILOT AIR, 130

09492-26002-000   0949226002000

0949226002000
Not available
43
DISCONTINUE

13250-21E00-000  

1325021E00000
Not available
44
JET, PILOT #12.5
JET, PILOT (12.5)

09492-12008-000   0949212008000

0949212008000

Unit Price

45
JET MAIN
JET, STARTER (52.5)

09491-52003-000   0949152003000

0949152003000

Unit Price

46
SEAL

13258-33C00-000   1325833C00000

1325833C00000

Unit Price

47
O RING,PILOT AIR SCREW
O RING, PILOT AIR SCREW

13295-29900-000  

13295-29901-000
 1329529900000

Unit Price

48
WASHER
WASHER

13291-29900-000   1329129900000

1329129900000

Unit Price

49
SPRING
SPRING

13268-47070-000   1326847070000

1326847070000

Unit Price

50
SCREW,PILOT<br />SCREW, PILOT (1.1/4)
SCREW, PILOT
SCREW, PILOT (1.1/4)

13279-47070-000   1327947070000

1327947070000

Unit Price

51
SCREW
SCREW

13602-05A10-000   1360205A10000

1360205A10000

Unit Price

52
FILTER

13376-84110-000  

13376-19F00-000
 1337684110000

Unit Price

53
DISCONTINUE
RING

13331-06C20-000   1333106C20000

1333106C20000
Not available
54
CAP
CAP

13508-17C00-000   1350817C00000

1350817C00000

Unit Price

55
O RING

13251-06C10-000   1325106C10000

1325106C10000

Unit Price

56
SEAL,THRO SHAFT
SEAL, THRO SHAFT

13651-51010-000  

13651-51011-000
 1365151010000

Unit Price

57
SCREW(5X14)

13601-05148-000  

13601-05148-XC0
 1360105148000

Unit Price

58
BRACKET

13627-31E00-000   1362731E00000

1362731E00000
Not available
59
SCREW

02122-05103-000  

02122-0510A-000
 0212205103000

Unit Price

60
SCREW
SCREW

02112-05127-000   0211205127000

0211205127000

Unit Price

61
PLUG,DRAIN
PLUG, DRAIN

13247-13A00-000  

13247-02340-000
 1324713A00000

Unit Price

62
O RING, NEEDLE VALVE SEAT

13374-44080-000  

13374-35C00-000
 1337444080000

Unit Price

63
RING

13557-07D00-000   1355707D00000

1355707D00000
Not available
64
PLUG
PLUG

13281-05A00-000   1328105A00000

1328105A00000

Unit Price

65
HEATER ASSY,CARBURETOR(15W)<br />HEATER ASSY, CARB
HEATER ASSY, CARBURETOR(15W)
HEATER ASSY, CARB

13650-25E01-000   1365025E01000

1365025E01000

Unit Price

65A
HEATER ASSY, CARBURETOR(15W)

13651-25E01-000  

13650-25E01-000
 1365125E01000

Unit Price

66
THERMO SWITCH,CARB HEATER<br />CARB.HEATER THERMO SWITCH
THERMO SWITCH, CARB HEATER
CARB.HEATER THERMO SWITCH

13655-25E00-000   1365525E00000

1365525E00000

Unit Price

67
BAND,WIRING HARNESS<br />CLAMP
BAND, WIRING HARNESS
CLAMP

09407-14403-000   0940714403000

0940714403000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR (E18,E39) of your Suzuki RF 900 of RF. Let us know if you have any questions.
