TAIL LIGHT FOR SUZUKI GSX-S 1000 2019

WIRING HARNESS

Item numbers

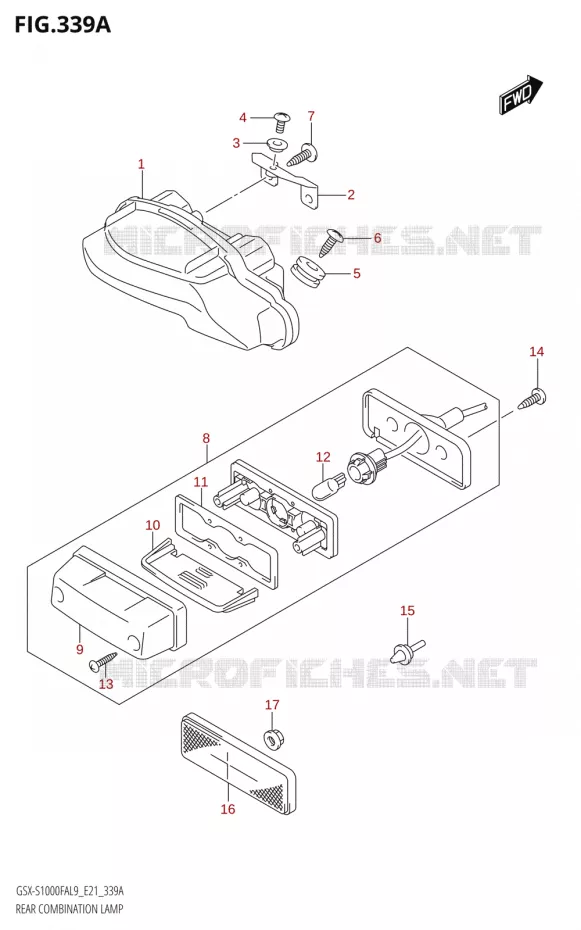

TAIL LIGHT Suzuki MOTO 1000 GSX-S 2019 GSX-S1000FZA L9 (E21)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
LAMP ASSY, RR COMB

35710-04K01-000   3571004K01000

3571004K01000

Unit Price

2
BRACKET, REAR COMB UPPER

35726-04K00-000   3572604K00000

3572604K00000

Unit Price

3
WASHER
WASHER

09169-06071-000   0916906071000

0916906071000

Unit Price

4
SCREW
SCREW

02142-0612A-000  

02142-0612B-000
 021420612A000

Unit Price

5
CUSHION, REAR COMB LAMP

09320-10054-000  

09320-10073-000
 0932010054000

Unit Price

6
SCREW

03541-0616B-000   035410616B000

035410616B000

Unit Price

7
SCREW
SCREW

03541-0516A-000   035410516A000

035410516A000

Unit Price

8
LAMP ASSY, LICENSE

35910-16G20-000   3591016G20000

3591016G20000
Not available
9
.COVER

35917-16G00-000   3591716G00000

3591716G00000

Unit Price

10
.LENS

35912-16G01-000   3591216G01000

3591216G01000

Unit Price

11
.GASKET

35913-16G00-000   3591316G00000

3591316G00000

Unit Price

12
BULB 12V1.7W,T6.5<br />.BULB(12V5W)
BULB 12V1.7W, T6.5
.BULB(12V5W)

09471-12216-000  

0947112216000
Not available
13
.SCREW
.SCREW

03211-0416A-000   032110416A000

032110416A000

Unit Price

14
SCREW
SCREW

03541-1516A-000   035411516A000

035411516A000

Unit Price

15
CUSHION

09321-06032-000   0932106032000

0932106032000
Not available
16
REFLECTOR ASSY,RR<br />REFLECTOR ASSY,REAR
REFLECTOR ASSY, RR
REFLECTOR ASSY, REAR

35970-07F01-000   3597007F01000

3597007F01000

Unit Price

17
NUT
NUT

08316-1005A-000   083161005A000

083161005A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TAIL LIGHT of your Suzuki GSX-S 1000 F SPECIAL EDITION FULL BLACK of GSX-S. Let us know if you have any questions.

Genuine parts for Suzuki 1000 GSX-S 2019

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 1000 GSX-S 2019

Select your Suzuki 2019 model

Color : Metallic Mat Black No.2 (YKV)
1000 GSX-S 2019 GSX-S1000FZA L9 (E21)
Color : Metallic Mat Black No.2 (YKV)

GSX-S 1000 F SPECIAL EDITION FULL BLACK

Suzuki GSX-S

Displacement: 1000 cc
Year: 2019
Model code GSX-S1000FZA L9 (E21)
Color: Metallic Mat Black No.2 (YKV)
