Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

ANTI POLLUTION SYSTEM

CLUTCH FOR SUZUKI GSX-S 1000 2019

TRANSMISSION

Item numbers

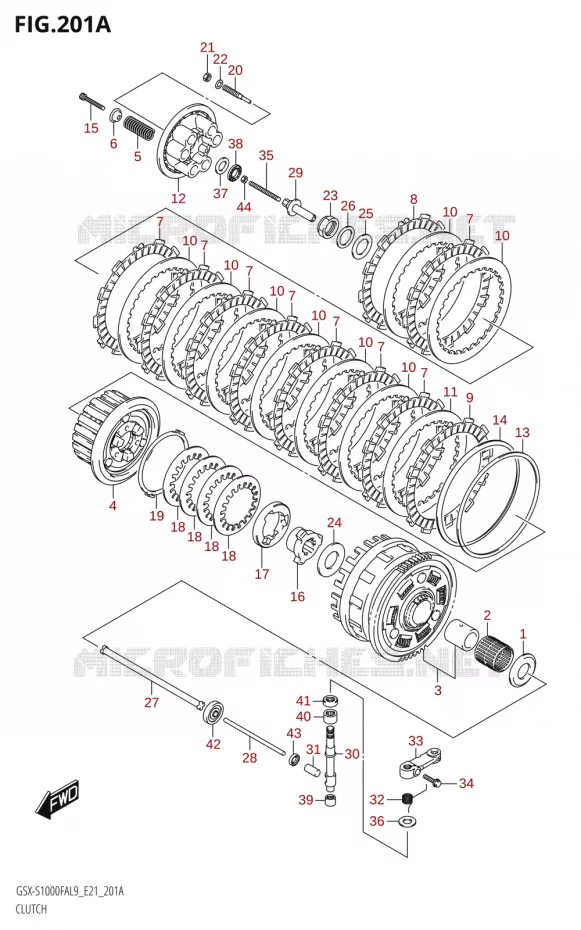

CLUTCH Suzuki MOTO 1000 GSX-S 2019 GSX-S1000FZA L9 (E21)
1
2
3
4
5
6
7
7
7
7
7
7
7
7
8
9
10
10
10
10
10
10
10
10
11
12
13
14
15
16
17
18
18
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
1
WASHER(25X54X2.4)
WASHER(25X54X2.4)

09160-25073-000   0916025073000

0916025073000

Unit Price

2
ROLLER BEARING 35X40<br />BEARING(35X40X35.8)
ROLLER BEARING 35X40
BEARING(35X40X35.8)

09263-35017-000   0926335017000

0926335017000

Unit Price

3
GEAR ASSY, PRI DRIVEN
GEAR ASSY, PRIMARY DRIVEN(NT:73)

21200-40880-000   2120040880000

2120040880000

Unit Price

4
HUB, CLUTCH SLEEVE

21410-41G20-000   2141041G20000

2141041G20000

Unit Price

5
SPRING, CLUTCH

21413-41G00-000   2141341G00000

2141341G00000

Unit Price

6
WASHER
WASHER

21414-29F00-000   2141429F00000

2141429F00000

Unit Price

7
PLATE, CLUTCH DRIVE
PLATE, CLUTCH DRIVE(T:2.7)

21441-36F00-000   2144136F00000

2144136F00000

Unit Price

8
PLATE, CLUTCH DRIVE
PLATE, CLUTCH DRIVE(T:2.7)

21441-49H00-000   2144149H00000

2144149H00000

Unit Price

9
PLATE, CLUTCH DRIVE NO.3
PLATE, CLUTCH DRIVE NO.3(T:2.8)

21442-41G00-000  

2144241G00000
Not available
10
PLATE, CLUTCH DRIVEN(T:2.3)

21451-41G00-000   2145141G00000

2145141G00000

Unit Price

11
PLATE, CLUTCH DRIVEN NO.2
PLATE, CLUTCH DRIVEN NO.2(T:2.3)

21451-41G40-000   2145141G40000

2145141G40000

Unit Price

12
DISC, CLUTCH PRESSURE

21462-41G00-000   2146241G00000

2146241G00000

Unit Price

13
SEAT, WAVE WASHER

21471-41G00-000   2147141G00000

2147141G00000

Unit Price

14
WASHER, CLUTCH PLATE WAVE

21472-41G20-000   2147241G20000

2147241G20000

Unit Price

15
BOLT, CLUTCH SPRING

21482-41G10-000   2148241G10000

2148241G10000

Unit Price

16
CAM, CLUTCH DRIVE

21611-41G20-000   2161141G20000

2161141G20000

Unit Price

17
CAM, CLUTCH DRIVEN

21612-41G20-000   2161241G20000

2161241G20000

Unit Price

18
WASHER, CAM REACTION WAVE

21621-41G00-000   2162141G00000

2162141G00000

Unit Price

19
WASHER, CAM REACTION SEAT

21624-41G10-000   2162441G10000

2162441G10000

Unit Price

20
LIFTER, CLUTCH PRESSURE DISC

21622-41G00-000   2162241G00000

2162241G00000

Unit Price

21
NUT, CL PRESS DISC LIFTER LOCK

21623-41G00-000   2162341G00000

2162341G00000

Unit Price

22
SHIM, 8.8X14X1.0
SHIM(8.8X14X1)

09181-08139-000   0918108139000

0918108139000

Unit Price

23
NUT
NUT

09159-24010-000   0915924010000

0915924010000

Unit Price

24
WASHER SLEEVE HUB<br />WASHER(25X50X2.5)
WASHER SLEEVE HUB
WASHER(25X50X2.5)

09160-25056-000   0916025056000

0916025056000

Unit Price

25
WASHER(25X41X2.5)

09160-25077-000   0916025077000

0916025077000

Unit Price

26
WASHER
WASHER(24.2X35X2.7)

09164-24008-000   0916424008000

0916424008000

Unit Price

27
ROD,CLUTCH PUSH,R<br />ROD,CLUTCH PUSH RIGHT
ROD, CLUTCH PUSH, R
ROD, CLUTCH PUSH RIGHT

23110-38B00-000   2311038B00000

2311038B00000

Unit Price

28
ROD,CLUTCH PUSH LH<br />ROD,CLUTCH PUSH L
ROD, CLUTCH PUSH LH
ROD, CLUTCH PUSH L

23111-35F00-000   2311135F00000

2311135F00000

Unit Price

29
PIECE, CLUTCH PUSH

23121-41G00-000   2312141G00000

2312141G00000

Unit Price

30
CAMSHAFT, CLUTCH RELEASE

23122-41G00-000   2312241G00000

2312241G00000

Unit Price

31
CAP, CLUTCH PUSH ROD

23123-41G00-000   2312341G00000

2312341G00000

Unit Price

32
SPRING, CLUTCH RELEASE RETURN

23125-41G00-000   2312541G00000

2312541G00000

Unit Price

33
ARM, CLUTCH RELEASE

23271-41G60-000   2327141G60000

2327141G60000

Unit Price

34
BOLT
BOLT(6X20)

09103-06223-000   0910306223000

0910306223000

Unit Price

35
SCREW, CLUTCH PUSH RO
SCREW(6X73)

09134-06015-000   0913406015000

0913406015000

Unit Price

36
WASHER(10.5X24X1)

09160-10020-000   0916010020000

0916010020000

Unit Price

37
WASHER<br />WASHER(15.5X28X1)
WASHER
WASHER(15.5X28X1)

09160-15045-000   0916015045000

0916015045000

Unit Price

38
BEARING(15X28X2)
BEARING(15X28X2)

09263-15003-000   0926315003000

0926315003000

Unit Price

39
BEARING(10X14X10)

09263-10014-000   0926310014000

0926310014000

Unit Price

40
BEARING, CL RLSE
BEARING(12X18X12)

09263-12027-000   0926312027000

0926312027000

Unit Price

41
OIL SEAL(10X20X6)

09282-10012-000   0928210012000

0928210012000

Unit Price

42
SEAL, OIL
SEAL, OIL(6X34X10.5)

09283-06010-000   0928306010000

0928306010000

Unit Price

43
OIL SEAL<br />OIL SEAL(10X17X5)
OIL SEAL
OIL SEAL(10X17X5)

09285-10004-000   0928510004000

0928510004000

Unit Price

44
NUT
NUT

08310-0006A-000  

083100006A000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CLUTCH of your Suzuki GSX-S 1000 F SPECIAL EDITION FULL BLACK of GSX-S. Let us know if you have any questions.

Genuine parts for Suzuki 1000 GSX-S 2019

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 1000 GSX-S 2019

Select your Suzuki 2019 model

Color : Metallic Mat Black No.2 (YKV)
1000 GSX-S 2019 GSX-S1000FZA L9 (E21)
Color : Metallic Mat Black No.2 (YKV)

GSX-S 1000 F SPECIAL EDITION FULL BLACK

Suzuki GSX-S

Displacement: 1000 cc
Year: 2019
Model code GSX-S1000FZA L9 (E21)
Color: Metallic Mat Black No.2 (YKV)
