Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

LEVERS - HANDGRIPS

FRONT FORK FOR SUZUKI GSX-S 1000 2019

STEERING COLUMN

Item numbers

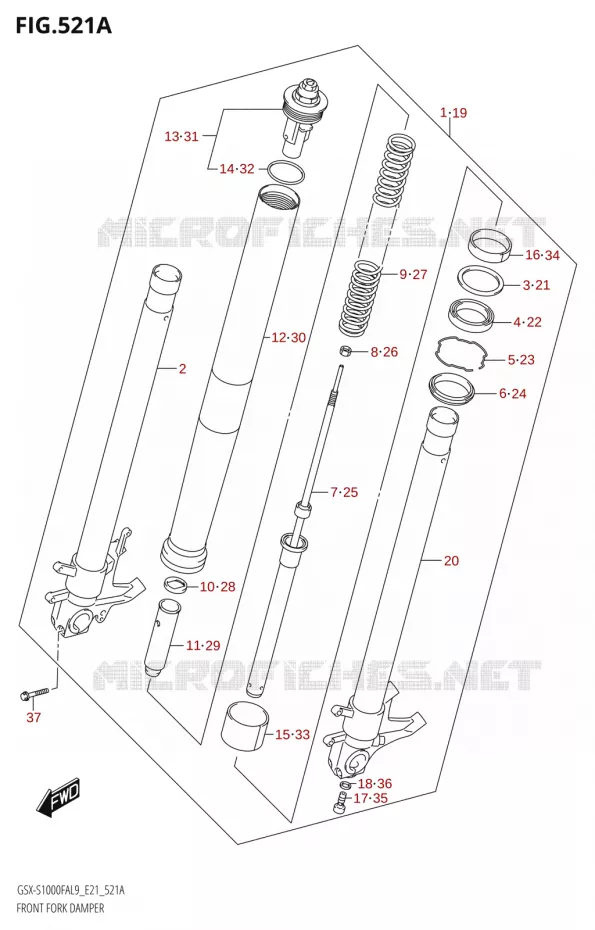

FRONT FORK Suzuki MOTO 1000 GSX-S 2019 GSX-S1000FZA L9 (E21)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
1
DAMPER ASSY, R

51103-04K70-000  

51103-04K71-000
 5110304K70000

Unit Price

2
TUBE, INNER RH

51110-04K40-000  

51110-04K41-000
 5111004K40000

Unit Price

3
.WASHER
.WASHER

51158-14200-000   5115814200000

5115814200000

Unit Price

4
SEAL, OIL
.OIL SEAL

51153-44G00-000   5115344G00000

5115344G00000

Unit Price

5
.RING,STOPPER
.RING, STOPPER

51156-14200-000   5115614200000

5115614200000

Unit Price

6
.SEAL,DUST
.SEAL, DUST

51173-02FA0-000   5117302FA0000

5117302FA0000

Unit Price

7
CYLINDER

51146-04K00-000  

51146-04K01-000
 5114604K00000

Unit Price

8
.NUT, ROD

51352-13A60-000   5135213A60000

5135213A60000

Unit Price

9
.SPRING

51171-04K00-000   5117104K00000

5117104K00000

Unit Price

10
WASHER
.GUIDE, SPRING

51158-40F30-000   5115840F30000

5115840F30000

Unit Price

11
.SPACER, SPRING

51176-40F30-000   5117640F30000

5117640F30000

Unit Price

12
.TUBE, OUTER

51131-04K60-000   5113104K60000

5113104K60000

Unit Price

13
.CAP

51351-04K60-000   5135104K60000

5135104K60000

Unit Price

14
..O-RING

62278-14100-000   6227814100000

6227814100000

Unit Price

15
.PISTON

51112-31J00-000   5111231J00000

5111231J00000

Unit Price

16
.METAL, SLIDE

51152-31J00-000   5115231J00000

5115231J00000

Unit Price

17
.BOLT

51147-24F50-000   5114724F50000

5114724F50000

Unit Price

18
.GASKET
.GASKET

51148-41310-000   5114841310000

5114841310000

Unit Price

19
DAMPER ASSY, L

51104-04K70-000  

51104-04K71-000
 5110404K70000

Unit Price

20
.TUBE, INNER LH

51120-04K40-000   5112004K40000

5112004K40000
Not available
21
.WASHER
.WASHER

51158-14200-000   5115814200000

5115814200000

Unit Price

22
SEAL, OIL
.OIL SEAL

51153-44G00-000   5115344G00000

5115344G00000

Unit Price

23
.RING,STOPPER
.RING, STOPPER

51156-14200-000   5115614200000

5115614200000

Unit Price

24
.SEAL,DUST
.SEAL, DUST

51173-02FA0-000   5117302FA0000

5117302FA0000

Unit Price

25
CYLINDER

51146-04K00-000  

51146-04K01-000
 5114604K00000

Unit Price

26
.NUT, ROD

51352-13A60-000   5135213A60000

5135213A60000

Unit Price

27
.SPRING

51171-04K00-000   5117104K00000

5117104K00000

Unit Price

28
WASHER
.GUIDE, SPRING

51158-40F30-000   5115840F30000

5115840F30000

Unit Price

29
.SPACER, SPRING

51176-40F30-000   5117640F30000

5117640F30000

Unit Price

30
.TUBE, OUTER

51131-04K60-000   5113104K60000

5113104K60000

Unit Price

31
.CAP

51351-04K60-000   5135104K60000

5135104K60000

Unit Price

32
..O-RING

62278-14100-000   6227814100000

6227814100000

Unit Price

33
.PISTON

51112-31J00-000   5111231J00000

5111231J00000

Unit Price

34
.METAL, SLIDE

51152-31J00-000   5115231J00000

5115231J00000

Unit Price

35
.BOLT

51147-24F50-000   5114724F50000

5114724F50000

Unit Price

36
.GASKET
.GASKET

51148-41310-000   5114841310000

5114841310000

Unit Price

37
BOLT

51166-24F60-000   5116624F60000

5116624F60000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki GSX-S 1000 F SPECIAL EDITION FULL BLACK of GSX-S. Let us know if you have any questions.
