Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FUEL TANK (MODEL V / W) REFER TO FIG.34A(H-8) FOR MODEL X

FUEL TANK (MODEL X) FOR SUZUKI TL-S 1000 1998

FUEL TANK (MODEL Y / K1)

Item numbers

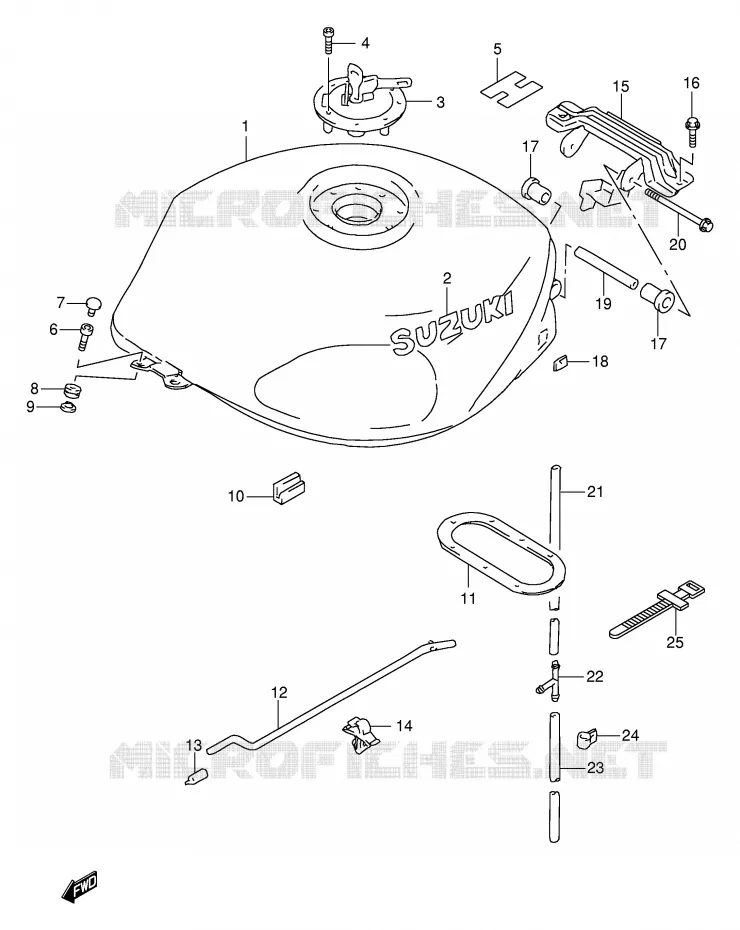

FUEL TANK (MODEL X) Suzuki MOTO 1000 TL-S 1998 TL1000SW(E2)
1
1
1
1
2
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
24
25
1
TANK ASSY, FUEL (BLACK)

44100-02F00-2AX   4410002F002AX

4410002F002AX
Not available
1
DISCONTINUE

44100-02F00-Y0W  

4410002F00Y0W
Not available
1
TANK ASSY, FUEL (SILVER)

44100-02F00-Y2D   4410002F00Y2D

4410002F00Y2D
Not available
1
TANK ASSY, FUEL (BLUE)

44100-02F00-Y7H   4410002F00Y7H

4410002F00Y7H
Not available
2
DISCONTINUE

68111-12C00-17U  

6811112C0017U
Not available
2
DISCONTINUE

68111-12C00-1ZY  

6811112C001ZY
Not available
2
DISCONTINUE

68111-12C00-20G  

6811112C0020G
Not available
3
DISCONTINUE<br />CAP SET, FUEL TANK
DISCONTINUE
CAP SET, FUEL TANK

44200-33870-000  

4420033870000
Not available
4
BOLT, L:20<br />BOLT, CAP
BOLT, L:20
BOLT, CAP

09106-05017-000   0910605017000

0910605017000

Unit Price

5
DISCONTINUE<br />LABEL, INNER
DISCONTINUE
LABEL, INNER

44261-02F00-000   4426102F00000

4426102F00000
Not available
6
BOLT

07130-06653-000  

07130-0665B-000
 0713006653000

Unit Price

7
DISCONTINUE
CAP, BOLT

44514-02F00-000   4451402F00000

4451402F00000
Not available
8
RR COMB LAMP CUSHION<br />CUSHION
RR COMB LAMP CUSHION
CUSHION

09320-09009-000   0932009009000

0932009009000

Unit Price

9
WASHER<br />SPACER
WASHER
SPACER

09169-06062-000   0916906062000

0916906062000

Unit Price

10
CUSHION,FUEL TANK SIDE
CUSHION, FUEL TANK SIDE

44541-33E00-000  

44541-33E01-000
 4454133E00000

Unit Price

11
PACKING SET, FUEL PUMP

44596-02F01-000  

44590-02821-000
 4459602F01000

Unit Price

12
STAY, FUEL TANK
STAY, FUEL TANK

44574-33E01-000   4457433E01000

4457433E01000

Unit Price

13
CAP(OD:11)<br />PLUG
CAP(OD:11)
PLUG

09251-05006-000   0925105006000

0925105006000

Unit Price

14
CLAMP
CLAMP

09403-05310-000   0940305310000

0940305310000

Unit Price

15
DISCONTINUE

44550-02F00-000  

4455002F00000
Not available
16
BOLT<br />BOLT, REAR BRACKET
BOLT
BOLT, REAR BRACKET

09106-08140-000   0910608140000

0910608140000

Unit Price

17
CUSHION,FUEL TANK RR
CUSHION, FUEL TANK RR

44541-02F00-000  

44541-02F01-000
 4454102F00000

Unit Price

18
FASTENER

44572-02F00-000   4457202F00000

4457202F00000
Not available
19
DISCONTINUE<br />SPACER, JOINT
DISCONTINUE
SPACER, JOINT

44561-33E10-000   4456133E10000

4456133E10000
Not available
20
BOLT

01550-08953-000  

01550-0895A-000
 0155008953000

Unit Price

21
DISCONTINUE<br />HOSE, WATER DRAIN
DISCONTINUE
HOSE, WATER DRAIN

44423-02F01-000  

4442302F01000
Not available
22
3 WAY
3 WAY, DRAIN HOSE

09367-08005-000   0936708005000

0936708005000

Unit Price

23
HOSE(7X10.2X600)
HOSE(7X10.2X600)

09352-70103-600  

09352-70104-600
 0935270103600

Unit Price

24
DISCONTINUE<br />CLAMP
DISCONTINUE
CLAMP

09403-14408-000  

0940314408000
Not available
25
BAND,WIRING HARNESS<br />CLAMP
BAND, WIRING HARNESS
CLAMP

09407-14403-000   0940714403000

0940714403000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FUEL TANK (MODEL X) of your Suzuki TLS 1000 of TL-S. Let us know if you have any questions.
