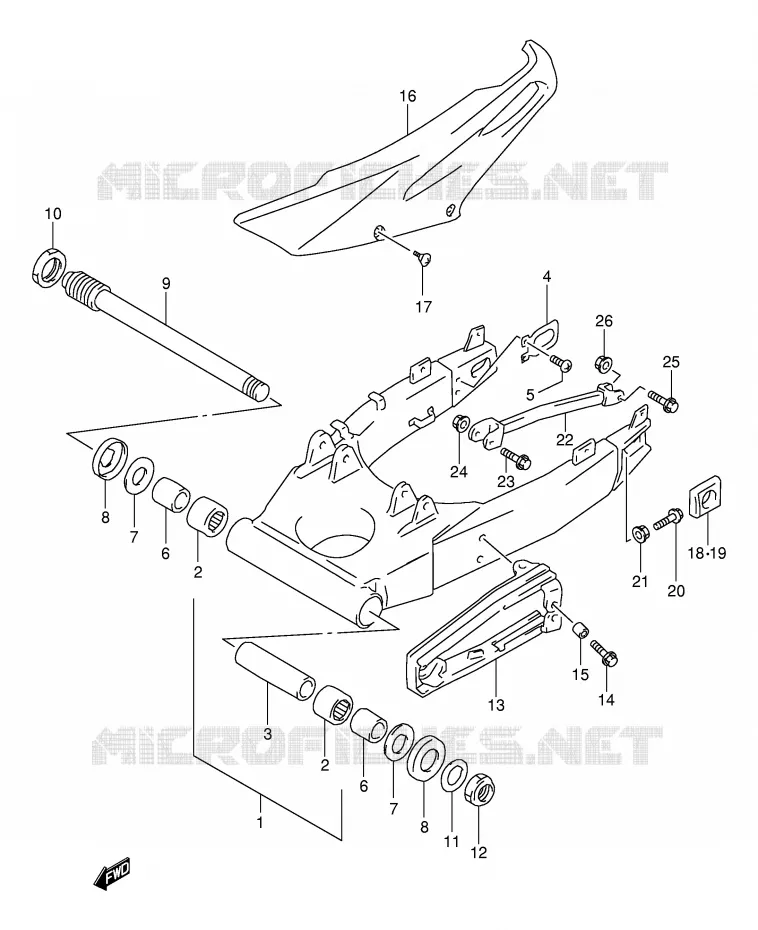

SWINGARM (E2,E4,E25,E34,P37) REFER TO FIG.52A(L-6) FOR MODEL V E18,E22,E24,E39

SWINGARM (MODEL V E18,E22,E24,E39) FOR SUZUKI TL-S 1000 1998

SWINGARM (MODEL W / X / Y / K1 E18,E22,E24)

Item numbers

SWINGING ARM ASSY, REAR

61000-02F00-000 6100002F00000

Not available

BEARING, PROP SHAFT
BEARING, PIVOT (30X40X25)

09263-30040-000 0926330040000

$54,97

Unit Price

SPACER, RR SWGARM PIVOT CTR

61280-33E00-000

61281-33E20-000

$72,97

Unit Price

PLATE, RR SWING ARM BRKT
PLATE, BRACKET

61124-33E00-000 6112433E00000

$10,97

Unit Price

SCREW

02142-06163-000

02142-0616A-000

$2,97

Unit Price

SPACER, RR SWGARM PIVOT BEARING

61251-17E10-000

61251-17E20-000

$19,97

Unit Price

WASHER
WASHER, THRUST

08211-25481-000 0821125481000

$10,97

Unit Price

SEAL, DUST

61262-17E10-000

61262-17E11-000

$18,97

Unit Price

DISCONTINUE
SHAFT, PIVOT

61211-33E00-000 6121133E00000

Not available

NUT, RR SWGARM PIVOT BOLT

61214-40C30-000

61214-40C31-000

$40,97

Unit Price

WASHER

09160-25070-000

09160-25070-A05

NUT

09159-25001-000

09159-25003-000

$54,97

Unit Price

DISCONTINUE
BUFFER, CHAIN TOUCH DEFENSE

61273-02F00-000

Not available

BOLT

09116-06111-000

09116-06152-000

$3,97

Unit Price

SPACER (6.5X9X5)

09180-06306-000 0918006306000

$3,97

Unit Price

CASE, CHAIN

61311-02F00-000 6131102F00000

Not available

SCREW, 6X14

09139-06081-000

09122-66007-000

$4,97

Unit Price

ADJUSTER, CHAIN
WASHER, CHAIN ADJUSTER RH

61445-33E00-000 6144533E00000

$81,97

Unit Price

ADJUSTER, CHAIN
WASHER, CHAIN ADJUSTER LH

61446-33E10-000 6144633E10000

$82,97

Unit Price

BOLT
BOLT (8X50)

09100-08287-000 0910008287000

$5,97

Unit Price

NUT

08316-10083-000

08316-1008B-000

$3,97

Unit Price

DISCONTINUE
TORQUE LINK, REAR

64310-33E00-000 6431033E00000

Not available

DISCONTINUE
BOLT, FRONT (8X44)

09111-08083-000 0911108083000

Not available

NUT

08319-31087-000 0831931087000

$3,97

Unit Price

BOLT CALIPER
BOLT, REAR (10X37)

09103-10019-000 0910310019000

$4,97

Unit Price

NUT

08319-31107-000 0831931107000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM (MODEL V E18,E22,E24,E39) of your Suzuki TLS 1000 of TL-S. Let us know if you have any questions.
