FRONT FORK (MODEL W / X / Y / K1)

STEERING COLUMN (MODEL V) FOR SUZUKI TL-S 1000 1998

STEERING COLUMN (MODEL W / X / Y / K1)

Item numbers

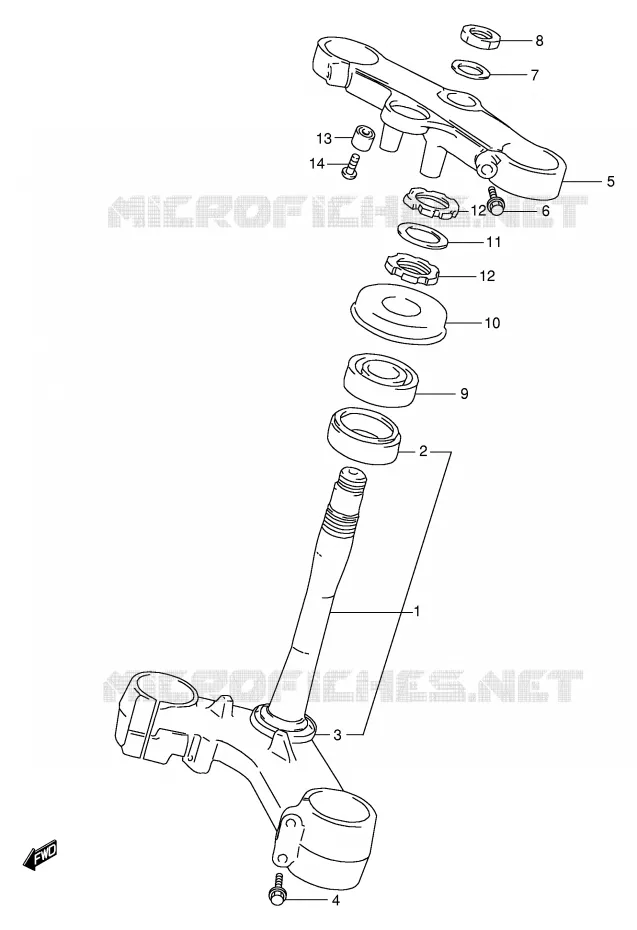

STEERING COLUMN (MODEL V) Suzuki MOTO 1000 TL-S 1998 TL1000SW(E2)
1
2
3
4
5
6
6
6
7
7
8
8
9
10
11
12
12
13
14
1
STEM, STEERING

51410-02F00-000   5141002F00000

5141002F00000
Not available
2
BEARING (30X55X17)
BEARING (30X55X17)

09267-30010-000   0926730010000

0926730010000

Unit Price

3
SEAL,STEERING LWR<br />SEAL, STEM LOWER
SEAL, STEERING LWR
SEAL, STEM LOWER

51644-12C00-000   5164412C00000

5164412C00000

Unit Price

4
BOLT
BOLT

01550-08407-000   0155008407000

0155008407000
Not available
5
HEAD, STEERING STEM

51311-02F00-000   5131102F00000

5131102F00000
Not available
6
BOLT
BOLT

01550-08357-000   0155008357000

0155008357000

Unit Price

6
DISCONTINUE<br />BOLT, LH (8X32)
DISCONTINUE
BOLT, LH (8X32)

51328-03FA0-000   5132803FA0000

5132803FA0000
Not available
7
WASHER,STEM HEAD(24.5X34X1.6)<br />WASHER
WASHER, STEM HEAD(24.5X34X1.6)
WASHER

51356-27C00-000   5135627C00000

5135627C00000

Unit Price

7
WASHER

51723-02F00-000   5172302F00000

5172302F00000
Not available
8
DISCONTINUE<br />NUT
DISCONTINUE
NUT

51353-02F00-000   5135302F00000

5135302F00000
Not available
8
NUT

51353-02F10-000   5135302F10000

5135302F10000
Not available
9
BEARING (30X55X17)
BEARING (30X55X17)

09267-30010-000   0926730010000

0926730010000

Unit Price

10
SEAL,STEERING UPR DUST<br />SEAL, STEM UPPER DUST
SEAL, STEERING UPR DUST
SEAL, STEM UPPER DUST

51643-33E00-000   5164333E00000

5164333E00000

Unit Price

11
WASHER,STEERING STEM<br />WASHER, STEM
WASHER, STEERING STEM
WASHER, STEM

51641-33E00-000   5164133E00000

5164133E00000

Unit Price

12
NUT,STEERING STEM<br />NUT, STEM
NUT, STEERING STEM
NUT, STEM

51631-33E00-000   5163133E00000

5163133E00000

Unit Price

13
DISCONTINUE
BALANCER, BRACKET UPPER

56278-02F00-000   5627802F00000

5627802F00000
Not available
14
SCREW

02142-06303-000  

02142-0630B-000
 0214206303000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STEERING COLUMN (MODEL V) of your Suzuki TLS 1000 of TL-S. Let us know if you have any questions.
