Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRONT FAIRING BRACKET:L8:E21) FOR YVB,YWW

FRONT FAIRING BRACKETA:L8:E21) FOR SUZUKI V-STROM 1000 2018

ELECTRICAL COMPONENTS

Item numbers

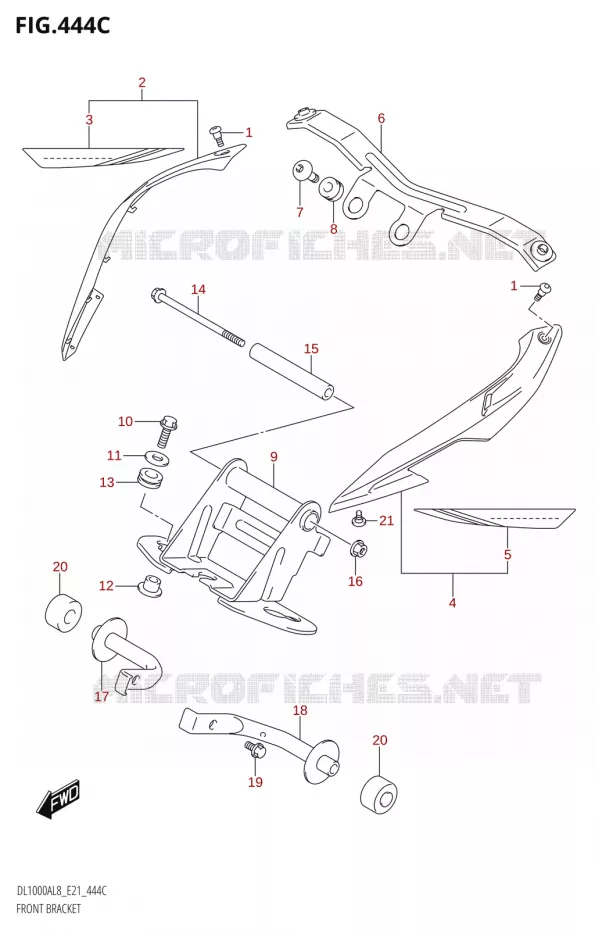

FRONT FAIRING BRACKETA:L8:E21) Suzuki MOTO 1000 V-STROM 2018 DL1000AL8 E21
1
1
2
2
2
3
3
3
4
4
4
5
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
1
SCREW, SIDE COWL RR

44193-31J00-000   4419331J00000

4419331J00000

Unit Price

2
COVER COMP, SIDE REAR, R
COVER, SIDE REAR, R(SILVER)

94420-31J20-5JX   9442031J205JX

9442031J205JX

Unit Price

2
COVER COMP, SIDE REAR
COVER, SIDE REAR, R(SILVER)

94420-31J20-YMD   9442031J20YMD

9442031J20YMD

Unit Price

2
COVER, SIDE REAR, R(GRAY)

94420-31J20-QEB   9442031J20QEB

9442031J20QEB
Not available
3
TAPE, COVER SIDE, R
.TAPE, COVER SIDE, R(WHITE, GRAY, YELLOW)

68275-31J00-BG5   6827531J00BG5

6827531J00BG5

Unit Price

3
.TAPE, COVER SIDE, R(WHITE, GRAY, BLACK)

68275-31J00-BG6   6827531J00BG6

6827531J00BG6
Not available
3
.TAPE, COVER SIDE, R(WHITE, GRAY, RED, BLACK)

68275-31J00-BQ2   6827531J00BQ2

6827531J00BQ2
Not available
4
COVER COMP, SIDE REAR, L
COVER, SIDE REAR, L(SILVER)

94430-31J20-5JX   9443031J205JX

9443031J205JX

Unit Price

4
COVER COMP, SIDE REAR, L
COVER, SIDE REAR, L(SILVER)

94430-31J20-YMD   9443031J20YMD

9443031J20YMD

Unit Price

4
COVER, SIDE REAR, L(GRAY)

94430-31J20-QEB   9443031J20QEB

9443031J20QEB
Not available
5
TAPE, COVER SIDE, L
.TAPE, COVER SIDE, L(WHITE, GRAY, YELLOW)

68285-31J00-BG5   6828531J00BG5

6828531J00BG5

Unit Price

5
TAPE, COVER SIDE, L
.TAPE, COVER SIDE, L(WHITE, GRAY, BLACK)

68285-31J00-BG6   6828531J00BG6

6828531J00BG6

Unit Price

5
.TAPE, COVER SIDE, L(WHITE, GRAY, RED, BLACK)

68285-31J00-BQ2   6828531J00BQ2

6828531J00BQ2
Not available
6
BRACKET, FRONT COVER

44160-31J00-000   4416031J00000

4416031J00000

Unit Price

7
BOLT, 6X20
BOLT, 6X20(6X20)

09139-06190-000   0913906190000

0913906190000

Unit Price

8
CUSHION, FUEL TANK COVER BRKT

44164-31J00-000  

44164-31J01-000
 4416431J00000

Unit Price

9
BRACKET, FUEL TANK FRONT

44520-31J01-000   4452031J01000

4452031J01000

Unit Price

10
SCREW, 6X25
SCREW, 6X25(6X25)

09139-06192-000   0913906192000

0913906192000

Unit Price

11
WASHER(6.5X22X1.6)
WASHER(6.5X22X1.6)

09160-06012-000  

09160-06054-000
 0916006012000

Unit Price

12
SPACER, FUEL TANK, FR

44512-16G00-000   4451216G00000

4451216G00000

Unit Price

13
CUSHION, FUEL TANK FR

44511-16G00-000  

44511-16G01-000
 4451116G00000

Unit Price

14
BOLT

01550-0695A-000  

01550-0695B-000
 015500695A000

Unit Price

15
SPACER, FUEL TANK
SPACER, FUEL TANK REAR

44561-35F00-000   4456135F00000

4456135F00000

Unit Price

16
NUT
NUT

08319-3106B-000   083193106B000

083193106B000

Unit Price

17
BRACKET, FRONT SIDE

44560-31J00-000   4456031J00000

4456031J00000

Unit Price

18
BRACKET, FRONT SIDE

44560-31J00-000   4456031J00000

4456031J00000

Unit Price

19
BOLT

01550-0612A-000   015500612A000

015500612A000

Unit Price

20
CUSHION, FRONT SIDE BRKT

44543-31J00-000  

44543-31J01-000
 4454331J00000

Unit Price

21
SCREW, COWLING
SCREW, COWLING LOWER

09139-05091-000   0913905091000

0913905091000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FAIRING BRACKETA:L8:E21) of your Suzuki V-STROM 1000 of V-STROM. Let us know if you have any questions.

Genuine parts for Suzuki 1000 V-STROM 2018

Suzuki 1000 V-STROM 2018

Select your Suzuki 2018 model

Color : Champion Yellow No.2 (YU1)
1000 V-STROM 2018 DL1000AL8 E21
Color : Champion Yellow No.2 (YU1)
1000 V-STROM 2018 DL1000AL8 E21
Color : Pearl Glacier White (YWW)
1000 V-STROM 2018 DL1000AL8 E21
Color : Glass Sparkle Black (YVB)
1000 V-STROM 2018 DL1000AL8 E21
Color : Metallic Oort Gray No.3 (QEB)

V-STROM 1000

Suzuki V-STROM

Displacement: 1000 cc
Year: 2018
Model code DL1000AL8 E21
Color: Champion Yellow No.2 (YU1) / Pearl Glacier White (YWW) / Glass Sparkle Black (YVB) / Metallic Oort Gray No.3 (QEB)
