Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

ANTI POLLUTION SYSTEM

CLUTCH FOR SUZUKI V-STROM 1000 2018

TRANSMISSION

Item numbers

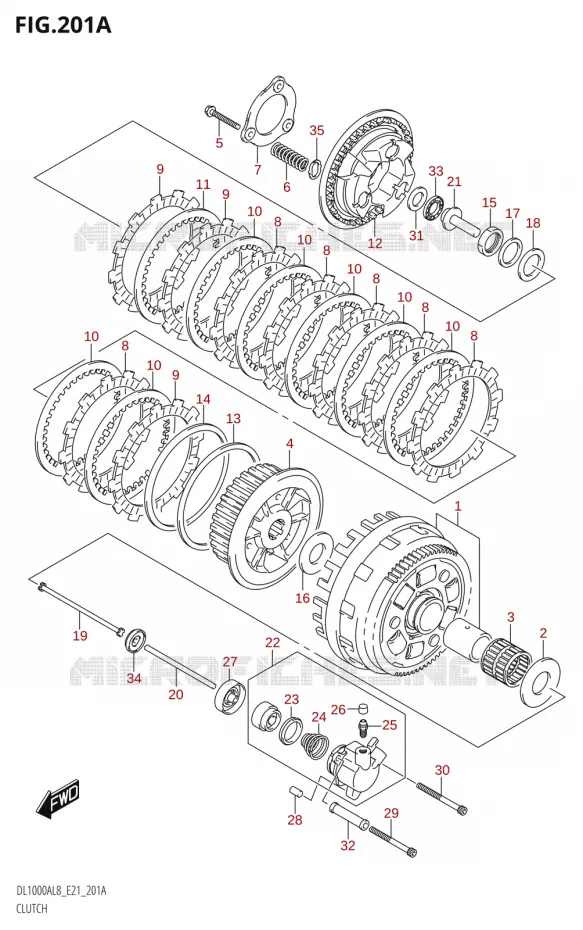

CLUTCH Suzuki MOTO 1000 V-STROM 2018 DL1000AL8 E21
1
2
3
4
5
6
7
8
8
8
8
8
8
9
9
9
10
10
10
10
10
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
1
GEAR ASSY, PRIMARY DRIVEN
GEAR ASSY, PRIMARY DRIVEN(NT:57)

21200-31Y11-000   2120031Y11000

2120031Y11000

Unit Price

2
WASHER, 25X52X2.5
WASHER, 25X52X2.5(25X52X2.5)

09160-25074-000   0916025074000

0916025074000

Unit Price

3
BEARING, PRI DRVN GR
BEARING, 35X40X39.8(35X40X39.8)

09263-35013-000   0926335013000

0926335013000

Unit Price

4
HUB, CLUTCH SLEEVE

21411-31J10-000   2141131J10000

2141131J10000

Unit Price

5
BOLT, CLUTCH SPRING

21412-31J00-000   2141231J00000

2141231J00000

Unit Price

6
SPRING, CLUTCH

21413-31J00-000   2141331J00000

2141331J00000

Unit Price

7
PLATE, STOPPER

21414-31J00-000   2141431J00000

2141431J00000

Unit Price

8
PLATE, CLUTCH DRIVE NO.1
PLATE, CLUTCH DRIVE NO.1(T:3.8)

21441-31J00-000   2144131J00000

2144131J00000

Unit Price

9
PLATE, CLUTCH DRIVE NO.2
PLATE, CLUTCH DRIVE NO.2(T:3.8)

21442-31J00-000   2144231J00000

2144231J00000

Unit Price

10
PLATE, CLUTCH DRIVEN NO.1(T:2.0
PLATE, CLUTCH DRIVEN, NO.1, T:2.0(T:2.0)

21451-24F00-000   2145124F00000

2145124F00000

Unit Price

11
PLATE, CLUTCH DRIVEN NO.2
PLATE, CLUTCH DRIVEN NO.2(T:2.0)

21452-31J00-000   2145231J00000

2145231J00000

Unit Price

12
DISC, CLUTCH PRESSURE

21462-31J10-000   2146231J10000

2146231J10000

Unit Price

13
SEAT, WAVE WASHER

21471-24F00-000   2147124F00000

2147124F00000

Unit Price

14
WASHER, CLUTCH PLATE WAVE

21472-24F00-000   2147224F00000

2147224F00000

Unit Price

15
NUT
NUT

09159-24010-000   0915924010000

0915924010000

Unit Price

16
WASHER SLEEVE HUB<br />WASHER(25X50X2.5)
WASHER SLEEVE HUB
WASHER(25X50X2.5)

09160-25056-000   0916025056000

0916025056000

Unit Price

17
WASHER
WASHER(24.2X35X2.7)

09164-24008-000   0916424008000

0916424008000

Unit Price

18
SHIM,25X38X1.0<br />SHIM,25X38X1(25X38X1)
SHIM, 25X38X1.0
SHIM, 25X38X1(25X38X1)

09181-25223-000   0918125223000

0918125223000

Unit Price

19
ROD,CLUTCH<br />ROD,CLUTCH(L:161)
ROD, CLUTCH
ROD, CLUTCH(L:161)

23110-27A00-000   2311027A00000

2311027A00000

Unit Price

20
ROD,CLUTCH PUSH LH<br />ROD,CLUTCH PUSH,L(L:132.5)
ROD, CLUTCH PUSH LH
ROD, CLUTCH PUSH, L(L:132.5)

23111-26D00-000   2311126D00000

2311126D00000

Unit Price

21
PIECE,CLUTCH PUSH
PIECE, CLUTCH PUSH

23121-31E00-000   2312131E00000

2312131E00000

Unit Price

22
CYLINDER, CLUTCH RELEASE

23160-06G20-000  

23160-06G21-000
 2316006G20000

Unit Price

23
.CUP
.CUP

23163-06B00-000   2316306B00000

2316306B00000

Unit Price

24
SPRING,CLUTCH CYLINDER<br />.SPRING
SPRING, CLUTCH CYLINDER
.SPRING

23164-05A00-000   2316405A00000

2316405A00000

Unit Price

25
.BLEEDER
.BLEEDER

59121-01A00-000   5912101A00000

5912101A00000

Unit Price

26
.CAP, BLEEDER

59122-46H00-000   5912246H00000

5912246H00000

Unit Price

27
COVER, DUST

23166-06G10-000   2316606G10000

2316606G10000

Unit Price

28
PIN

04221-08149-000   0422108149000

0422108149000

Unit Price

29
BOLT

07130-0665A-000   071300665A000

071300665A000

Unit Price

30
BOLT

07130-0670A-000   071300670A000

071300670A000

Unit Price

31
WASHER<br />WASHER(15.5X28X1)
WASHER
WASHER(15.5X28X1)

09160-15045-000   0916015045000

0916015045000

Unit Price

32
SPACER, CL RLSE CYL

23171-06G00-000   2317106G00000

2317106G00000

Unit Price

33
BEARING(15X28X2)
BEARING(15X28X2)

09263-15003-000   0926315003000

0926315003000

Unit Price

34
SEAL, CLUTCH PUSH ROD
SEAL, OIL, 6X34X10.5(6X34X10.5)

09283-06008-000   0928306008000

0928306008000

Unit Price

35
SEAT, CLUTCH SPRING

21415-31J00-000   2141531J00000

2141531J00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CLUTCH of your Suzuki V-STROM 1000 of V-STROM. Let us know if you have any questions.

Genuine parts for Suzuki 1000 V-STROM 2018

Suzuki 1000 V-STROM 2018

Select your Suzuki 2018 model

Color : Champion Yellow No.2 (YU1)
1000 V-STROM 2018 DL1000AL8 E21
Color : Champion Yellow No.2 (YU1)
1000 V-STROM 2018 DL1000AL8 E21
Color : Pearl Glacier White (YWW)
1000 V-STROM 2018 DL1000AL8 E21
Color : Glass Sparkle Black (YVB)
1000 V-STROM 2018 DL1000AL8 E21
Color : Metallic Oort Gray No.3 (QEB)

V-STROM 1000

Suzuki V-STROM

Displacement: 1000 cc
Year: 2018
Model code DL1000AL8 E21
Color: Champion Yellow No.2 (YU1) / Pearl Glacier White (YWW) / Glass Sparkle Black (YVB) / Metallic Oort Gray No.3 (QEB)
