Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CLUTCH

TRANSMISSION FOR SUZUKI V-STROM 1000 2018

GEAR SHIFTING ASSY

Item numbers

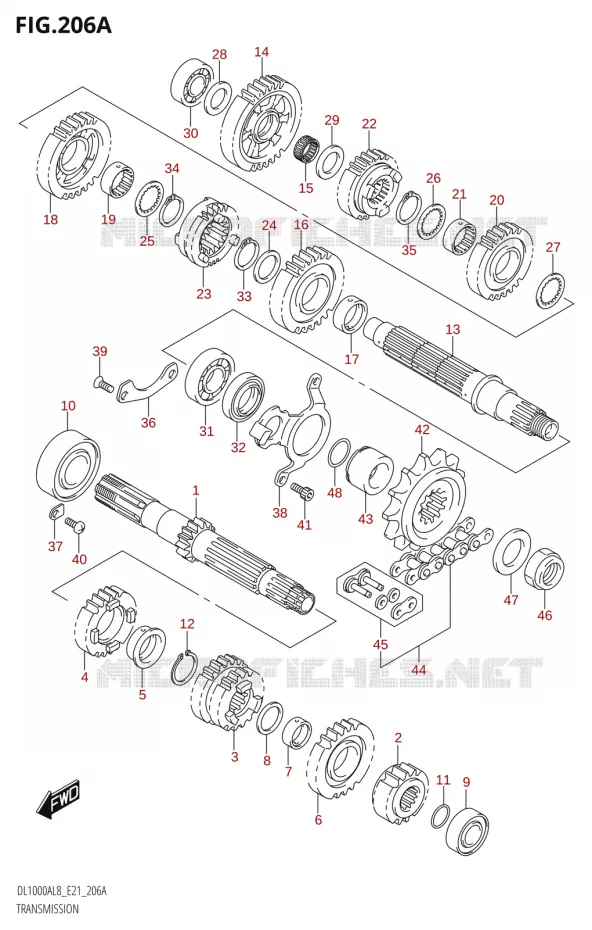

TRANSMISSION Suzuki MOTO 1000 V-STROM 2018 DL1000AL8 E21
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
1
SHAFT, COUNTER
SHAFT, COUNTER(NT:12)

24120-06G00-000   2412006G00000

2412006G00000

Unit Price

2
GEAR,2ND DRIVE(NT:15)<br />GEAR,2ND DRIVE,NT:12(NT:15)
GEAR, 2ND DRIVE(NT:15)
GEAR, 2ND DRIVE, NT:12(NT:15)

24221-02F01-000   2422102F01000

2422102F01000

Unit Price

3
GEAR, 3RD & 4TH DRIVE
GEAR, 3RD & 4TH DRIVE(NT:18/22)

24231-02F30-000   2423102F30000

2423102F30000

Unit Price

4
GEAR, 5TH DRIVE(NT:23)
GEAR, 5TH DRIVE, NT:23(NT:23)

24251-02F11-000   2425102F11000

2425102F11000

Unit Price

5
BUSH, 5TH DRIVE GEAR

24252-02F10-000   2425202F10000

2425202F10000

Unit Price

6
GEAR, 6TH DRIVE(NT:24)
GEAR, 6TH DRIVE, NT:24(NT:24)

24261-02F20-000   2426102F20000

2426102F20000

Unit Price

7
BUSH, 6TH DRIVE GEAR

24262-02F00-000   2426202F00000

2426202F00000

Unit Price

8
WASHER<br />SHIM,22X30X1(22X30X1)
WASHER
SHIM, 22X30X1(22X30X1)

09181-22167-000   0918122167000

0918122167000

Unit Price

9
BEARING
BEARING, 20X47X14(20X47X14)

09262-20139-000   0926220139000

0926220139000

Unit Price

10
BALL BEARG 25X62X1<br />BEARING,25X62X17(25X62X17)
BALL BEARG 25X62X1
BEARING, 25X62X17(25X62X17)

09262-25073-000   0926225073000

0926225073000

Unit Price

11
O RING D:1.9 ID:16.6<br />O RING,D:1.9,ID:16.6(D:1.9,ID:16.6)
O RING D:1.9 ID:16.6
O RING, D:1.9, ID:16.6(D:1.9, ID:16.6)

09280-17004-000   0928017004000

0928017004000

Unit Price

12
CIRCLIP
CIRCLIP

09380-27001-000   0938027001000

0938027001000

Unit Price

13
SHAFT, DRIVE

24130-02F20-000   2413002F20000

2413002F20000

Unit Price

14
GEAR, 1ST DRIVEN
GEAR, 1ST DRIVEN(NT:36)

24311-06G00-000   2431106G00000

2431106G00000

Unit Price

15
BEARING, 22X26X1
BEARING(22X26X11)

09263-22068-000   0926322068000

0926322068000

Unit Price

16
GEAR,2ND DRIVEN(NT:29)<br />GEAR,2ND DRIVEN,NT:29(NT:29)
GEAR, 2ND DRIVEN(NT:29)
GEAR, 2ND DRIVEN, NT:29(NT:29)

24321-02F11-000   2432102F11000

2432102F11000

Unit Price

17
BUSH,2ND DRIVEN GEAR
BUSH, 2ND DRIVEN GEAR

24322-02F01-000   2432202F01000

2432202F01000

Unit Price

18
GEAR, 3RD DRIVEN
GEAR, 3RD DRIVEN(NT:27)

24331-02F20-000  

2433102F20000
Not available
19
BUSH, 3RD DRIVEN GEAR

24332-17E20-000   2433217E20000

2433217E20000

Unit Price

20
GEAR, 4TH DRIVEN

24341-02F20-000  

24341-02F30-000
 2434102F20000

Unit Price

21
BUSH, 3RD DRIVEN GEAR

24332-17E20-000   2433217E20000

2433217E20000

Unit Price

22
GEAR, 5TH DRIVEN
GEAR, 5TH DRIVEN(NT:25)

24351-02F20-000   2435102F20000

2435102F20000

Unit Price

23
GEAR,6TH DRIVEN(NT:24)<br />GEAR,6TH DRIVEN,NT:24(NT:24)
GEAR, 6TH DRIVEN(NT:24)
GEAR, 6TH DRIVEN, NT:24(NT:24)

24361-02F30-000   2436102F30000

2436102F30000

Unit Price

24
WASHER(27X36X1)<br />WASHER,27X36X1(27X36X1.0)
WASHER(27X36X1)
WASHER, 27X36X1(27X36X1.0)

09160-27008-000   0916027008000

0916027008000

Unit Price

25
WASHER,3RD & 4TH DRIVEN
WASHER, 3RD & 4TH DRIVEN

24333-02F00-000   2433302F00000

2433302F00000

Unit Price

26
WASHER,3RD & 4TH DRIVEN
WASHER, 3RD & 4TH DRIVEN

24333-02F00-000   2433302F00000

2433302F00000

Unit Price

27
WASHER, 3RD & 4TH DRIVEN GEAR

24333-02F10-000   2433302F10000

2433302F10000

Unit Price

28
WASHER<br />SHIM(20X34X1)
WASHER
SHIM(20X34X1)

09181-20251-000   0918120251000

0918120251000

Unit Price

29
WASHER<br />SHIM(22X34X1)
WASHER
SHIM(22X34X1)

09181-22223-000   0918122223000

0918122223000

Unit Price

30
BEARING
BEARING, 20X52X15(20X52X15)

09262-20082-000   0926220082000

0926220082000

Unit Price

31
BEARING(28X68X1
BEARING(28X68X18)

09262-28053-000   0926228053000

0926228053000

Unit Price

32
SEAL, OIL(38X52X
SEAL, OIL(38X52X8)

09283-38028-000   0928338028000

0928338028000

Unit Price

33
CIRCLIP
CIRCLIP

09380-27001-000   0938027001000

0938027001000

Unit Price

34
CIRCLIP
CIRCLIP

09380-27001-000   0938027001000

0938027001000

Unit Price

35
CIRCLIP
CIRCLIP

09380-27001-000   0938027001000

0938027001000

Unit Price

36
RETAINER, DRIVE SHAFT BEARING
RETAINER, DRIVE SHAFT BRG

24741-06G00-000   2474106G00000

2474106G00000

Unit Price

37
RETAINER
RETAINER

24741-21A00-000   2474121A00000

2474121A00000

Unit Price

38
RETAINER,DRIVE SHAFT OIL SEAL
RETAINER, DRIVE SHAFT OIL SEAL

24751-06G00-000   2475106G00000

2475106G00000

Unit Price

39
SCREW<br />SCREW,6X12(6X12)
SCREW
SCREW, 6X12(6X12)

09126-06011-000   0912606011000

0912606011000

Unit Price

40
SCREW

02112-0612A-000  

02112-0612B-000
 021120612A000

Unit Price

41
BOLT

07130-0612A-000   071300612A000

071300612A000

Unit Price

42
SPROCKET, ENGINE

27510-20A40-000  

27510-20A42-000
 2751020A40000

Unit Price

43
SPACER, ENGINE SPROCKET

27531-31J00-000   2753131J00000

2753131J00000

Unit Price

44
CHAIN, DRIVE
CHAIN ASSY, DRIVE(RK525SMOZ8)

27600-06G40-120   2760006G40120

2760006G40120

Unit Price

45
.JOINT SET, DRIVE CHAIN

27620-06G40-000   2762006G40000

2762006G40000

Unit Price

46
NUT
NUT

09159-20004-000   0915920004000

0915920004000

Unit Price

47
WASHER 25X41X3<br />WASHER,25X41X3(25X41X3)
WASHER 25X41X3
WASHER, 25X41X3(25X41X3)

09160-25009-000   0916025009000

0916025009000

Unit Price

48
O-RING<br />O RING,D:2.4,ID:23.7(D:2.4,ID:23.7)
O-RING
O RING, D:2.4, ID:23.7(D:2.4, ID:23.7)

09280-24010-000   0928024010000

0928024010000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRANSMISSION of your Suzuki V-STROM 1000 of V-STROM. Let us know if you have any questions.

Genuine parts for Suzuki 1000 V-STROM 2018

Suzuki 1000 V-STROM 2018

Select your Suzuki 2018 model

Color : Champion Yellow No.2 (YU1)
1000 V-STROM 2018 DL1000AL8 E21
Color : Champion Yellow No.2 (YU1)
1000 V-STROM 2018 DL1000AL8 E21
Color : Pearl Glacier White (YWW)
1000 V-STROM 2018 DL1000AL8 E21
Color : Glass Sparkle Black (YVB)
1000 V-STROM 2018 DL1000AL8 E21
Color : Metallic Oort Gray No.3 (QEB)

V-STROM 1000

Suzuki V-STROM

Displacement: 1000 cc
Year: 2018
Model code DL1000AL8 E21
Color: Champion Yellow No.2 (YU1) / Pearl Glacier White (YWW) / Glass Sparkle Black (YVB) / Metallic Oort Gray No.3 (QEB)
