CRANKCASE COVER

CRANKSHAFT FOR SUZUKI BX 120 1994

CARBURETOR

Item numbers

DISCONTINUE
PISTON

12110-20200-000 1211020200000

Not available

DISCONTINUE
DISCONTINUED

12110-20200-050

Not available

PISTON (OS:1.0)

12110-20200-100 1211020200100

Not available

RING SET, PISTON

12140-20212-000 1214020212000

$53,97

Unit Price

RING SET, PISTON (OS:0.5)

12140-07603-050 1214007603050

Not available

DISCONTINUE
RING SET, PISTON (OS:1.0)

12140-07603-100 1214007603100

Not available

PIN, PISTON

12151-23400-000

12151-23400-0A0

$13,97

Unit Price

PISTON PIN CIRCLIP
CIRCLIP

09381-14001-000 0938114001000

$2,97

Unit Price

ROLLER BRG14X18X19.8
BEARING

09263-14022-000 0926314022000

$17,97

Unit Price

CRANKSHAFT ASSY

12200-07203-000 1220007203000

Not available

DISCONTINUE
ROD, CONNECTING

12161-11001-000 1216111001000

Not available

WASHER
THRUST WASHER (20X34X1)

08211-20341-000 0821120341000

$3,97

Unit Price

PIN, CRANK

12211-08201-000 1221108201000

$49,97

Unit Price

BEARING(20X26X16.7)
BEARING

09263-20020-000 0926320020000

$36,97

Unit Price

CRANKSHAFT, RH

12221-07201-000 1222107201000

Not available

CRANKSHAFT, LH

12261-07204-000 1226107204000

Not available

PLATE, OIL GUIDE

12511-07200-000 1251107200000

Not available

SPACER

12353-07002-000 1235307002000

Not available

DISCONTINUE
WASHER (34X70X1)

09160-34001-000 0916034001000

Not available

BEARING

09262-20069-000

09262-20121-000

$43,97

Unit Price

DISCONTINUE
BEARING, LH

09262-20003-000 0926220003000

Not available

SEAL, OIL(20X40X9)
OIL SEAL, LH

09283-20008-000 0928320008000

$13,97

Unit Price

BEARING(20X52X15)
BEARING, RH

09262-20073-000 0926220073000

$32,97

Unit Price

DISCONTINUE
WASHER (41X52X1)

09160-41001-000 0916041001000

Not available

SEAL, OIL(26X47X9)
OIL SEAL, RH

09283-26002-000 0928326002000

$15,97

Unit Price

SPACER (20X26X14)

09180-20015-000 0918020015000

Not available

GEAR, PRIMARY DRIVE (NT:16)

21111-07001-0A0 21111070010A0

$76,97

Unit Price

NUT

09140-14002-000 0914014002000

$5,97

Unit Price

WASHER

09166-14008-000 0916614008000

Not available

KEY

09420-04008-000 0942004008000

$5,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

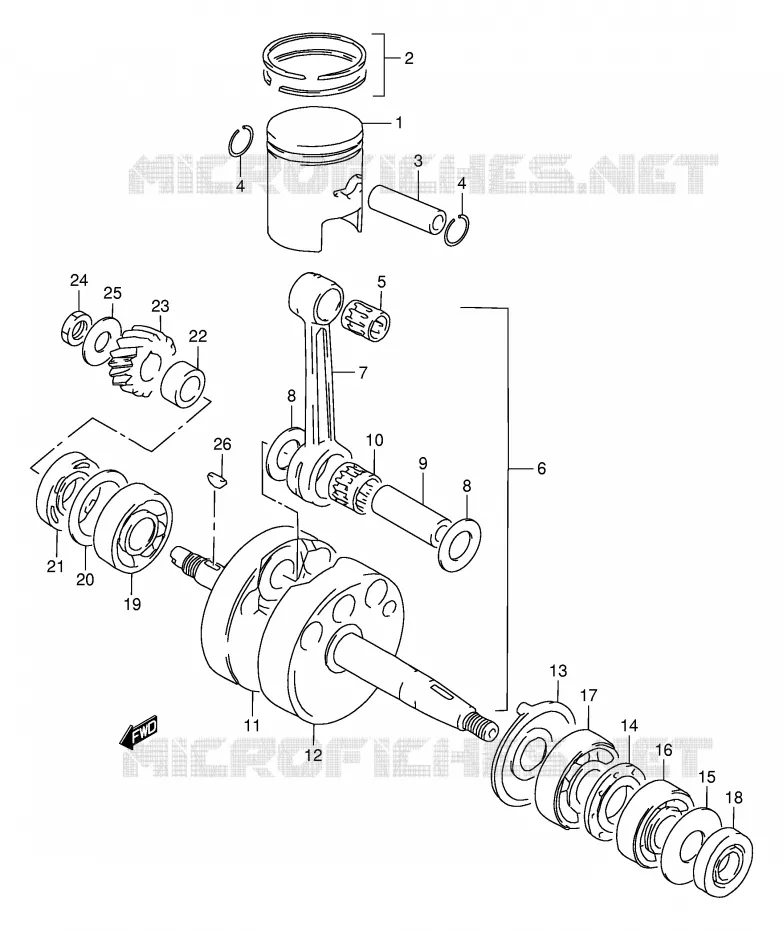

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT of your Suzuki of BX. Let us know if you have any questions.
