MUFFLER

OIL PUMP FOR SUZUKI BX 120 1994

CLUTCH

Item numbers

GEAR CASE ASSY, OIL PUMP

16300-03301-000 1630003301000

Not available

GEAR, DRIVE (NT:12)

16311-03300-000 1631103300000

Not available

GEAR, DRIVEN (NT:28)

16321-03300-000 1632103300000

Not available

SHAFT, DRIVEN GEAR

16320-03300-000 1632003300000

Not available

ROLLER

09261-02002-000 0926102002000

Not available

PLATE

16351-03301-000 1635103301000

Not available

BEARING

08113-06080-000 0811306080000

Not available

BEARING

08113-06260-000 0811306260000

Not available

DISCONTINUE
SCREW

02122-03083-000

Not available

GASKET

16381-03301-000 1638103301000

Not available

GASKET

16381-03310-000 1638103310000

Not available

04221-04089-000 0422104089000

$2,97

Unit Price

SCREW

02112-05127-000 0211205127000

$3,97

Unit Price

WASHER, LOCK

08321-01057-000

08321-0105A-000

$2,97

Unit Price

PUMP ASSY, OIL

16100-07520-000 1610007520000

Not available

GASKET, OIL PUMP
GASKET

16731-03101-000 1673103101000

$4,97

Unit Price

SCREW

02112-05167-000 0211205167000

$2,97

Unit Price

SCREW

09125-05109-000 0912505109000

Not available

WASHER, LOCK

08321-01057-000

08321-0105A-000

$2,97

Unit Price

TERMINAL, CABLE

16292-03112-000 1629203112000

$8,97

Unit Price

BOLT

09119-08014-000 0911908014000

$6,97

Unit Price

NUT

08310-00087-000 0831000087000

$3,97

Unit Price

DISCONTINUE

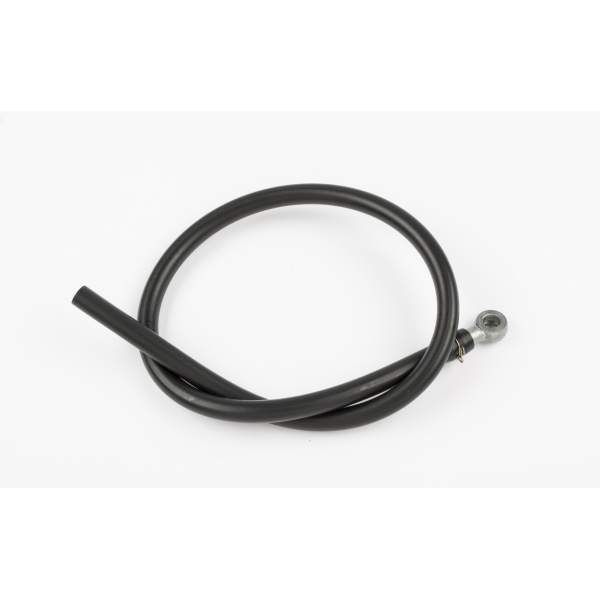

HOSE, OIL NO.1

16810-07520-000 1681007520000

Not available

HOSE, OIL NO.2

16820-20231-000 1682020231000

Not available

UNION BOLT

09360-10002-000 0936010002000

Not available

GASKET

09168-10012-000 0916810012000

Not available

OIL PUMP UNION BOLT
UNION BOLT

09360-06003-000 0936006003000

$8,97

Unit Price

TACH GEAR WASHER
GASKET

09168-06004-000 0916806004000

$2,97

Unit Price

TACH GEAR WASHER
GASKET

09168-06004-000 0916806004000

$2,97

Unit Price

DISCONTINUE
GROMMET

16819-07201-000 1681907201000

Not available

COVER, OIL PUMP

11411-07500-000 1141107500000

Not available

SCREW

02112-05207-000

02112-75207-000

$4,97

Unit Price

SCREW

02112-05167-000 0211205167000

$2,97

Unit Price

OIL HOSE CLAMP
CLAMP, OIL HOSE NO.1

09401-08401-000 0940108401000

$2,97

Unit Price

EMBLEM

68234-07500-000 6823407500000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL PUMP of your Suzuki of BX. Let us know if you have any questions.
