CHAIN GUARD

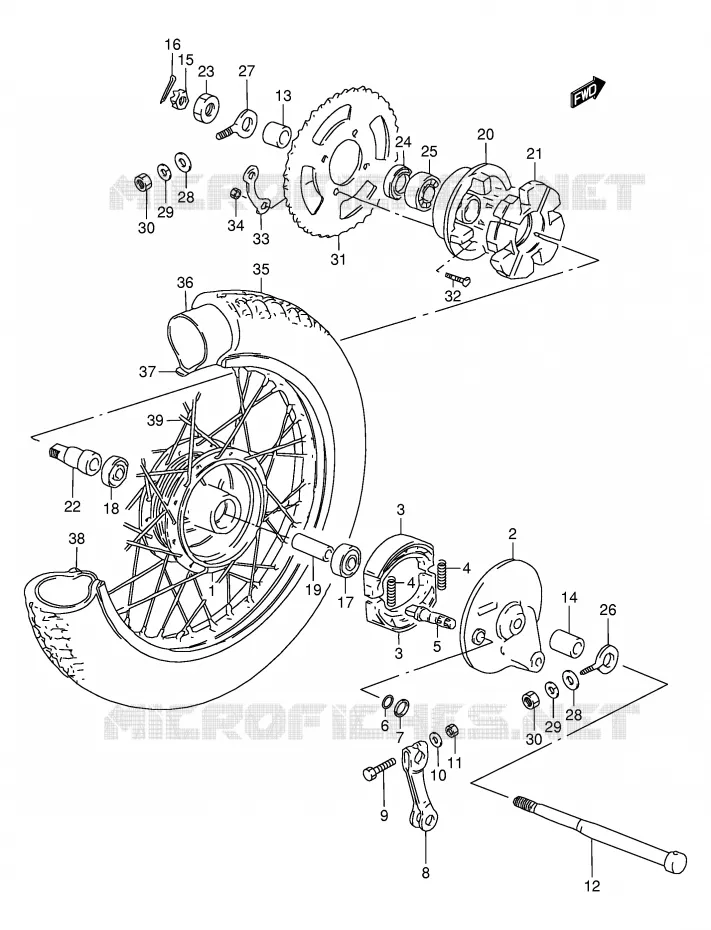

REAR WHEEL FOR SUZUKI BX 120 1994

Item numbers

HUB, RR WHEEL
HUB, REAR WHEEL

64110-07005-000 6411007005000

$345,97

Unit Price

PANEL, REAR BRAKE ANCHOR

64210-07006-000 6421007006000

Not available

SHOE SET, BRAKE

54400-07870-000 5440007870000

$76,97

Unit Price

SPRING

09443-07001-000 0944307001000

$3,97

Unit Price

CAM, FR BRAKE
CAM, BRAKE

54441-01002-000 5444101002000

$27,97

Unit Price

CAMSHAFT O RING
O RING

09280-12001-000 0928012001000

$6,97

Unit Price

SEAL WASHER
WASHER

09160-12011-000

Not available

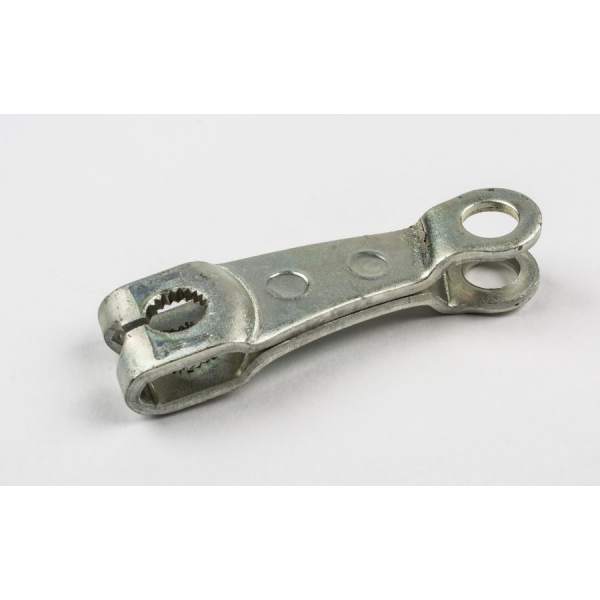

LEVER, RR BRAKE CAM
LEVER, BRAKE CAM

64451-20001-000 6445120001000

$20,97

Unit Price

BOLT

09100-06133-000 0910006133000

Not available

WASHER

08322-01067-000

08322-0106A-000

$2,97

Unit Price

NUT

08310-00067-000 0831000067000

$2,97

Unit Price

AXLE, REAR

64711-07611-000 6471107611000

Not available

SPACER, LH (20X28X13)

09180-20004-000 0918020004000

Not available

SPACER, RH (15X22X33)

09180-15002-000 0918015002000

Not available

NUT

08314-31128-000

08314-3112A-000

$3,97

Unit Price

04111-30308-000

04111-3030A-000

$2,97

Unit Price

BEARING, RH

08144-63027-000 0814463027000

Not available

B. BEARING 15X35X11
BEARING, LH

08143-62027-000 0814362027000

$22,97

Unit Price

SPACER (15.3X21.7X63)

09180-15011-000 0918015011000

$11,97

Unit Price

DRUM, SPROCKET MOUNTING

64611-07000-000 6461107000000

Not available

ABSORBER ASSY, HUB SHOCK
SHOCK ABSORBER, REAR HUB

64651-07001-000 6465107001000

$18,97

Unit Price

SHAFT

64761-07000-000 6476107000000

Not available

NUT

09140-18501-000 0914018501000

$4,97

Unit Price

OIL SEAL, SPROCKET

09285-28001-000

09285-28004-000

$28,97

Unit Price

BEARING, RH

08113-62040-000 0811362040000

Not available

DISCONTINUE
ADJUSTER, CHAIN RH

61411-07000-000 6141107000000

Not available

ADJUSTER, CHAIN LH

61421-07000-000 6142107000000

Not available

WASHER

08322-01067-000

08322-0106A-000

$2,97

Unit Price

WASHER, LOCK
LOCK WASHER

08321-01067-000 0832101067000

$2,97

Unit Price

NUT

08310-00067-000 0831000067000

$2,97

Unit Price

DISCONTINUE
SPROCKET, REAR (NT:35)

64511-07760-000 6451107760000

Not available

REAR SPROCKET BOLT
BOLT

09105-08001-000 0910508001000

$3,97

Unit Price

WASHER

09169-08012-000 0916908012000

$3,97

Unit Price

NUT

08310-00087-000 0831000087000

$2,97

Unit Price

TIRE, REAR (2.75X17) IRC

65100-09211-000 6510009211000

Not available

DISCONTINUE

65200-09210-000

Not available

PROTECTOR, WHL INR TUBE
PROTECTOR, INNER TUBE

55261-02B40-000 5526102B40000

$8,97

Unit Price

RIM, WHEEL (1.40X17)

55311-07020-000 5531107020000

Not available

SPOKE SET, REAR WHEEL

65320-07010-000 6532007010000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR WHEEL of your Suzuki of BX. Let us know if you have any questions.
