INDICATORS (MODEL X E24) REFER TO FIG.18A(D- 7) FOR MODEL W/K5

INDICATORS (MODEL W / K5) FOR SUZUKI AUTRES-MODELES 125 1999

TAIL LIGHT (MODEL X) REFER TO FIG.20 (D- 9) FOR MODEL X E6

Item numbers

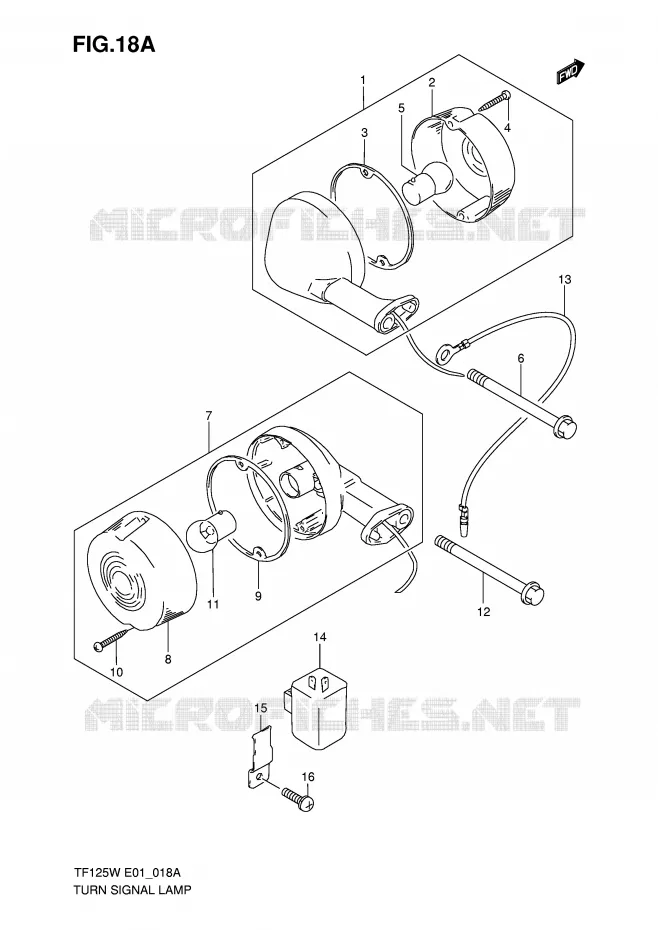

INDICATORS (MODEL W/K5) Suzuki MOTO 125 Autres-modeles 1999 TF125X(E1)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
LAMP ASSY, FRONT TURN SIGNAL

35601-46211-000   3560146211000

3560146211000
Not available
2
LENS
LENS

35612-46210-000   3561246210000

3561246210000
Not available
3
GASKET
GASKET

35613-06111-000   3561306111000

3561306111000
Not available
4
SCREW

03211-03166-000   0321103166000

0321103166000
Not available
5
BULB(6V25/25W,STANLEY,A7007)<br />BULB (6V,8W)
BULB(6V25/25W, STANLEY, A7007)
BULB (6V, 8W)

09471-06021-000   0947106021000

0947106021000

Unit Price

6
BOLT (6X60)

09118-06114-000   0911806114000

0911806114000
Not available
7
LAMP ASSY, REAR TURN SIGNAL

35603-39100-999   3560339100999

3560339100999
Not available
8
LENS
LENS

35612-46210-000   3561246210000

3561246210000
Not available
9
GASKET
GASKET

35613-06111-000   3561306111000

3561306111000
Not available
10
SCREW

03211-03166-000   0321103166000

0321103166000
Not available
11
BULB(6V25/25W,STANLEY,A7007)<br />BULB (6V,8W)
BULB(6V25/25W, STANLEY, A7007)
BULB (6V, 8W)

09471-06021-000   0947106021000

0947106021000

Unit Price

12
BOLT (6X60)

09118-06114-000   0911806114000

0911806114000
Not available
13
LEAD WIRE, FRONT EARTH

36851-45100-000   3685145100000

3685145100000
Not available
14
RELAY ASSY, TURN SIGNAL
RELAY ASSY, TURN SIGNAL

38610-06X50-000   3861006X50000

3861006X50000
Not available
15
BRACKET, TURN SIGNAL

38620-35301-000   3862035301000

3862035301000
Not available
16
SCREW

02112-36123-000  

02112-3612A-000
 0211236123000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the INDICATORS (MODEL W/K5) of your Suzuki TF 125 of Autres-modeles. Let us know if you have any questions.

Genuine parts for Suzuki 125 Autres-modeles 1999

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 125 Autres-modeles 1999

Select your Suzuki 1999 model

125 Autres-modeles 1999 TF125X(E1)

TF 125

Suzuki Autres-modeles

Displacement: 125 cc
Year: 1999
Model code TF125X(E1)
