Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

RIGHT LEVER - HANDGRIP (E24) REFER TO FIG.33B(F- 8) FOR MODEL K5

RIGHT LEVER - HANDGRIP (MODEL K5) FOR SUZUKI AUTRES-MODELES 125 1999

FRONT FORK (MODEL X ~F.NO.126489) REFER TO FIG.38(G-4) FOR FRONT DAMPER MODEL X F.NO.126490%,MODEL W

Item numbers

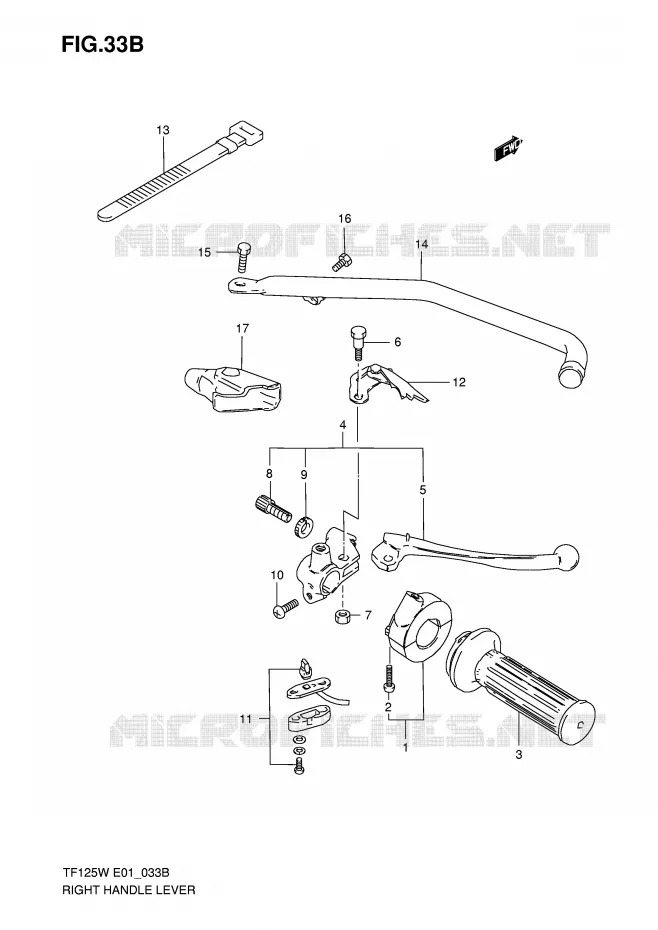

RIGHT LEVER - HANDGRIP (MODEL K5) Suzuki MOTO 125 Autres-modeles 1999 TF125X(E1)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
CASE ASSY, THROTTLE

57100-37400-000   5710037400000

5710037400000

Unit Price

2
SCREW

02112-05207-000  

02112-75207-000
 0211205207000

Unit Price

3
GRIP, THROTTLE

57110-37200-000  

57110-37201-000
 5711037200000

Unit Price

4
LEVER ASSY, BRAKE

57300-29520-000   5730029520000

5730029520000
Not available
5
LEVER, BRAKE

57420-29501-000   5742029501000

5742029501000
Not available
6
BOLT, LEVER PIVOT
BOLT

57431-29502-000   5743129502000

5743129502000

Unit Price

7
NUT

08319-21068-000  

08319-2106A-000
 0831921068000

Unit Price

8
ADJUSTER, CABLE

57441-26010-000   5744126010000

5744126010000

Unit Price

9
NUT,CABLE ADJUSTER<br />NUT
NUT, CABLE ADJUSTER
NUT

57442-11010-000   5744211010000

5744211010000

Unit Price

10
SCREW
SCREW

02112-06207-000   0211206207000

0211206207000

Unit Price

11
SWITCH ASSY,STOP<br />SWITCH, STOP
SWITCH ASSY, STOP
SWITCH, STOP

57460-33700-000   5746033700000

5746033700000

Unit Price

12
STOPPER, BRAKE LEVER

57780-29501-000   5778029501000

5778029501000
Not available
13
FUEL HOSE CLAMP<br />BAND
FUEL HOSE CLAMP
BAND

09407-12402-000   0940712402000

0940712402000

Unit Price

14
PROTECTOR, BRAKE LEVER

56350-29510-000   5635029510000

5635029510000
Not available
15
01580-0612B
BOLT

01580-06123-000  

0158006123000
Not available
16
BOLT

01580-08163-000  

01580-0816A-000
 0158008163000

Unit Price

17
COVER, BRAKE LEVER

57341-29520-000   5734129520000

5734129520000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the RIGHT LEVER - HANDGRIP (MODEL K5) of your Suzuki TF 125 of Autres-modeles. Let us know if you have any questions.

Genuine parts for Suzuki 125 Autres-modeles 1999

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 125 Autres-modeles 1999

Select your Suzuki 1999 model

125 Autres-modeles 1999 TF125X(E1)

TF 125

Suzuki Autres-modeles

Displacement: 125 cc
Year: 1999
Model code TF125X(E1)
