HEADLIGHT

INDICATORS (MODEL X E6) FOR SUZUKI AUTRES-MODELES 125 2005

INDICATORS (MODEL X E24) REFER TO FIG.18A(D- 7) FOR MODEL W/K5

Item numbers

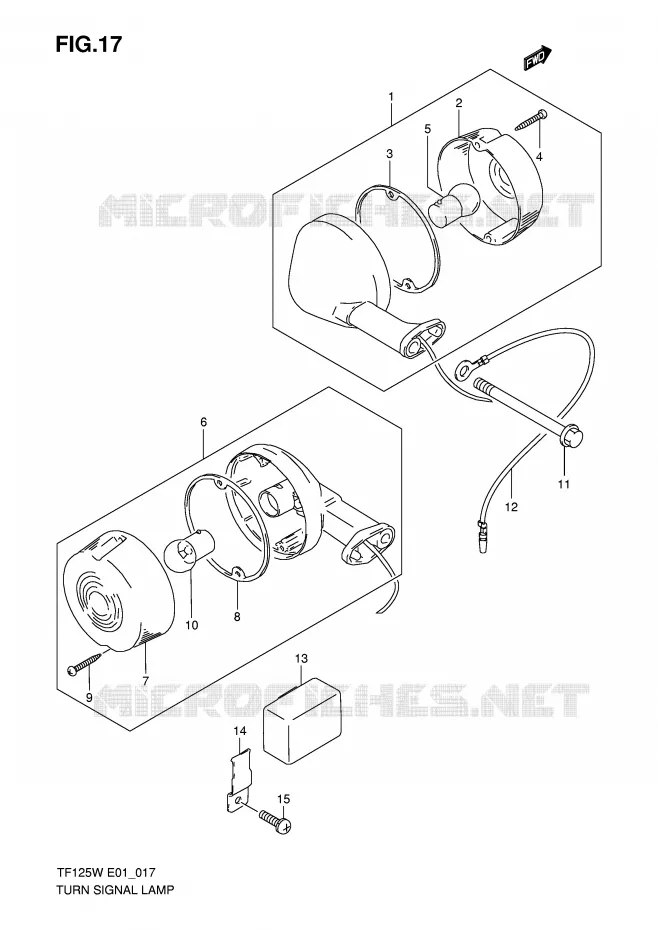

INDICATORS (MODEL X E6) Suzuki MOTO 125 Autres-modeles 2005 TF125K5(E1)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
LAMP ASSY, FRONT TURNSIGNAL

35601-46211-000   3560146211000

3560146211000
Not available
2
LENS
LENS

35612-46210-000   3561246210000

3561246210000
Not available
3
GASKET
GASKET

35613-06111-000   3561306111000

3561306111000
Not available
4
SCREW

03211-03166-000   0321103166000

0321103166000
Not available
5
BULB(6V25/25W,STANLEY,A7007)<br />BULB (6V,8W)
BULB(6V25/25W, STANLEY, A7007)
BULB (6V, 8W)

09471-06021-000   0947106021000

0947106021000

Unit Price

6
LAMP ASSY, REAR TURNSIGNAL

35603-46211-000   3560346211000

3560346211000
Not available
7
LENS
LENS

35612-46210-000   3561246210000

3561246210000
Not available
8
GASKET
GASKET

35613-06111-000   3561306111000

3561306111000
Not available
9
SCREW

03211-03166-000   0321103166000

0321103166000
Not available
10
BULB(6V25/25W,STANLEY,A7007)<br />BULB (6V,8W)
BULB(6V25/25W, STANLEY, A7007)
BULB (6V, 8W)

09471-06021-000   0947106021000

0947106021000

Unit Price

11
BOLT (6X60)

09103-06064-000   0910306064000

0910306064000

Unit Price

12
LEAD WIRE, FRONT EARTH

36851-45100-000   3685145100000

3685145100000
Not available
13
RELAY, TURN SIGNAL
RELAY, TURN SIGNAL

38610-06X50-000   3861006X50000

3861006X50000
Not available
14
BRACKET

38620-353A1-000   38620353A1000

38620353A1000
Not available
15
SCREW

02112-36123-000  

02112-3612A-000
 0211236123000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the INDICATORS (MODEL X E6) of your Suzuki TF 125 of Autres-modeles. Let us know if you have any questions.
