HEADLIGHT (E2,E4,E15,E18,E21)

HEADLIGHT (E24) FOR SUZUKI DR 125 1987

INDICATORS (E1,E4,E24) REFER TO FIG.24 (D-10) FOR E2,E15,E18,E21

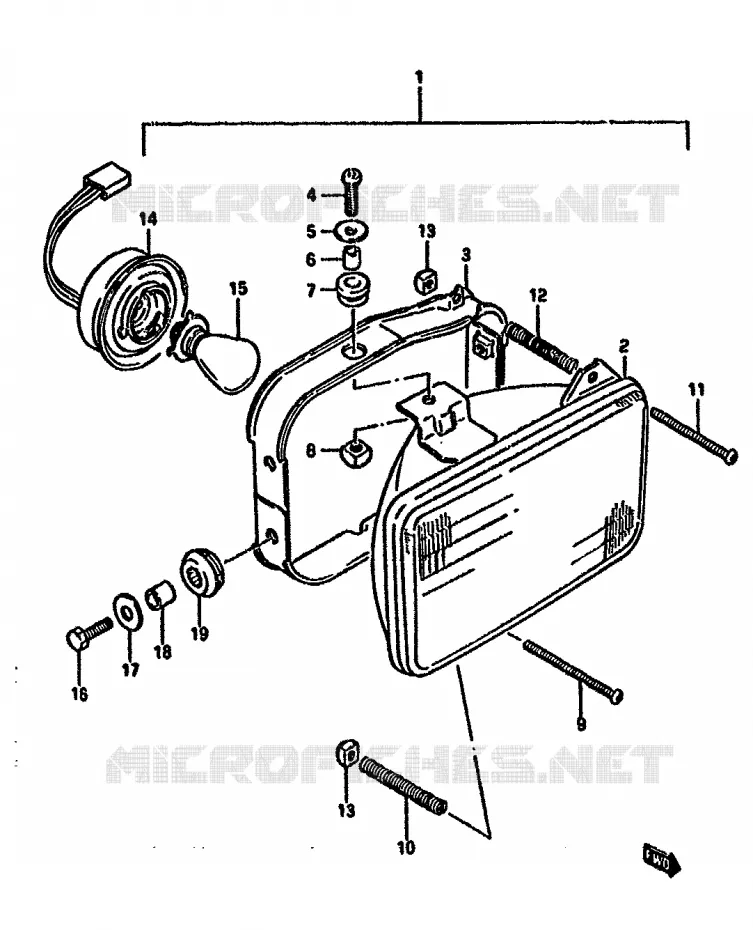

HEADLIGHT (E24) Suzuki MOTO 125 DR 1987 DR125SH(F/H/J)
1
HEADLAMP ASSY

35100-13A12-000   3510013A12000

3510013A12000
Not available
2
UNIT

35121-13A11-000   3512113A11000

3512113A11000
Not available
3
HOUSING

35141-14A00-000   3514114A00000

3514114A00000

Unit Price

4
SCREW
SCREW

09125-05102-000  

02112-05167-000
 0912505102000

Unit Price

5
WASHER(5.5X18X1)

35138-45230-000  

09160-05045-000
 3513845230000

Unit Price

6
DISCONTINUE
SPACER

35133-14A00-000   3513314A00000

3513314A00000
Not available
7
CUSHION

35139-45230-000   3513945230000

3513945230000

Unit Price

8
NUT
NUT

35135-45900-000   3513545900000

3513545900000

Unit Price

9
SCREW

35151-49200-000  

35151-45900-000
 3515149200000

Unit Price

10
* 35154-31C00
SPRING

35154-49200-000   3515449200000

3515449200000

Unit Price

11
SCREW , 4X50

35151-31300-000  

09125-04020-000
 3515131300000

Unit Price

12
SPRING
SPRING, UPPER

35154-31300-000   3515431300000

3515431300000

Unit Price

13
NUT
NUT

35135-45600-000   3513545600000

3513545600000

Unit Price

14
SOCKET

35171-01A10-000   3517101A10000

3517101A10000
Not available
15
BULB(12V21/5W)
BULB (12V, 45/45W)

09471-12080-000   0947112080000

0947112080000

Unit Price

16
BOLT

01107-06207-000  

01500-06207-000
 0110706207000

Unit Price

17
WASHER 6.5X10X1.2

09160-06027-000  

09160-06077-000
 0916006027000

Unit Price

18
SPACER, 6.5X10X7

09180-06011-000  

09180-06283-000
 0918006011000

Unit Price

19
CUSHION

09320-09018-000   0932009018000

0932009018000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HEADLIGHT (E24) of your Suzuki DR 125 of DR. Let us know if you have any questions.
