CRANKSHAFT

CAM SHAFT-VALVE FOR SUZUKI DR 125 1987

TIMING

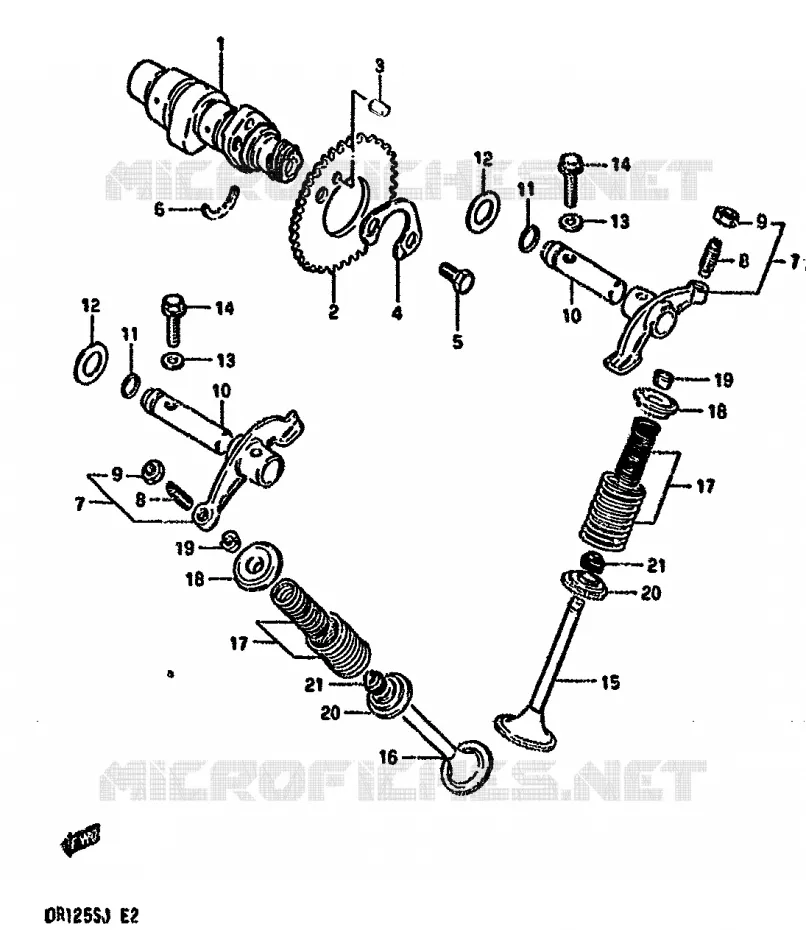

CAM SHAFT-VALVE Suzuki MOTO 125 DR 1987 DR125SH(F/H/J)
1
DISCONTINUED

12711-44A00-000   1271144A00000

1271144A00000
Not available
1
DISCONTINUE

12711-44A01-000  

1271144A01000
Not available
2
SPROCKET, CAMSHAFT
SPROCKET (NT:32)

12741-05201-000   1274105201000

1274105201000

Unit Price

3
KNOCK PIN, SPROCKET
PIN

09261-05005-000   0926105005000

0926105005000

Unit Price

4
WASHER, SPROCKET

12747-05201-000  

12747-05202-000
 1274705201000

Unit Price

5
BOLT, SPROCKET
BOLT

09111-06032-000   0911106032000

0911106032000

Unit Price

6
C-RING, CAM SHAFT
C RING

09390-22002-000   0939022002000

0939022002000

Unit Price

7
ARM ASSY, VALVE ROCKER

12840-05200-000  

12850-25C00-000
 1284005200000

Unit Price

8
SCREW, TAPPET ADJUSTING
SCREW

12842-32411-000   1284232411000

1284232411000

Unit Price

9
NUT, ADJUSTING SCREW
NUT

12843-32400-000   1284332400000

1284332400000

Unit Price

10
SHAFT, VALVE ROCKET
SHAFT, ROCKER ARM

12861-05201-000   1286105201000

1286105201000

Unit Price

11
O RING,ROCKER SHAFT<br />O RING
O RING, ROCKER SHAFT
O RING

09280-09005-000   0928009005000

0928009005000

Unit Price

12
WASHER,WAVE<br />WASHER
WASHER, WAVE
WASHER

09164-12021-000   0916412021000

0916412021000

Unit Price

13
GASKET
GASKET

09168-06023-000   0916806023000

0916806023000
Not available
14
BOLT

01517-06254-000  

01550-0625B-000
 0151706254000

Unit Price

15
VALVE, INTAKE

12911-24400-000  

12911-04B00-000
 1291124400000

Unit Price

16
VALVE, EXHAUST
VLEVE, EXHAUST

12912-24400-000   1291224400000

1291224400000

Unit Price

17
SPRING SET, VALVE

12920-05240-000   1292005240000

1292005240000

Unit Price

18
RETAINER, VALVE SPRING

12931-49200-000  

12931-49201-000
 1293149200000

Unit Price

19
COTTER,VALVE
COTTER, VALVE

12932-24400-000   1293224400000

1293224400000

Unit Price

20
SEAT, VALVE SPRING

12933-49200-000  

12933-49201-000
 1293349200000

Unit Price

21
SEAL, OIL(5.5X11X8.2)

09289-05003-000  

09289-05015-000
 0928905003000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CAM SHAFT-VALVE of your Suzuki DR 125 of DR. Let us know if you have any questions.

Genuine parts for Suzuki 125 DR 1987
