GASKET SET

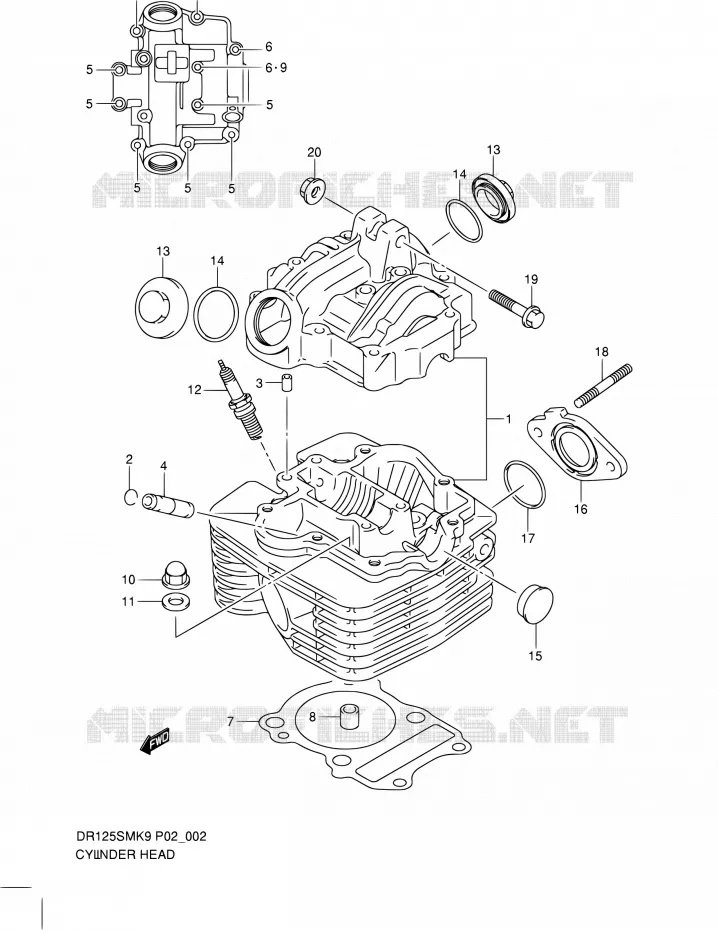

CYLINDER HEAD FOR SUZUKI DR 125 2010

CYLINDER

Item numbers

HEAD ASSY, CYLINDER

11100-24H00-000 1110024H00000

Not available

.RING, VALVE GUIDE

09381-10004-000 0938110004000

$2,97

Unit Price

PIN(8X11)
.PIN

09206-08001-000 0920608001000

$2,97

Unit Price

GUIDE, VALVE (OS:0.3)

11115-12F70-000 1111512F70000

BOLT
BOLT (6X35)

01550-0635A-000 015500635A000

$3,97

Unit Price

BOLT
BOLT (6X60)

01550-0660A-000 015500660A000

$4,97

Unit Price

GASKET, CYLINDER HEAD

11141-12F50-000 1114112F50000

Not available

PIN 11X16
PIN, CYLINDER HEAD

04211-11169-000 0421111169000

$2,97

Unit Price

GASKET
WASHER

09168-06023-000 0916806023000

Not available

NUT

09159-08049-000

09159-08074-000

$12,97

Unit Price

GASKET (8.5X17X2.3)

09168-08032-000 0916808032000

$2,97

Unit Price

CR8E, NGK
SPARK PLUG (CR8E)

09482-00456-000 0948200456000

$14,45

Unit Price

CR9E, NGK
SPARK PLUG (CR9E)

09482-00458-000 0948200458000

$5,45

Unit Price

CR7E, NGK

09482-00515-000

09482-00516-000

$14,45

Unit Price

CAP, INSPECTION

11175-18910-000 1117518910000

Not available

O RING, D:3 ID 29.5
O RING (D:3.0, ID:29.5)

09280-30001-000 0928030001000

$2,97

Unit Price

PLUG, CAM SHAFT
PLUG, HEAD

09241-22002-000 0924122002000

$7,97

Unit Price

INSULATOR

13128-24H00-000 1312824H00000

Not available

O RING(D:2.4, ID:31.7)
O RING

09280-32006-000 0928032006000

$3,97

Unit Price

BOLT

01421-0620C-000 014210620C000

Not available

BOLT (8X50)

09103-08289-000 0910308289000

Not available

NUT

08319-3108A-000 083193108A000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER HEAD of your Suzuki DR 125 SM of DR. Let us know if you have any questions.
